DOCOD China Manufacturer Customization DC 12V 24V Fuel Transfer Pump Lubrication Diesel Engine Oil Pump Gear
No reviews yet
Attributes
Automotive Industryapplication
Low Pressurepressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Guangdong, Chinaplace of origin
Electricpower source
structure:Gear Pump
model number:GQA175ESLD01
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
Chemical Compatibility:Alcohol, Diesel, oils, Water
Displacement:1.75ml/rev
Max Flow Rate:7.3L/min
Max Pressure:0.35MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:1.75ml/rev
Max. Flow Rate:7.3L/min(water as medium)
Max. Pressure:0.35MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4200rpm
Rated Voltage:24VDC
Rated Power:70W

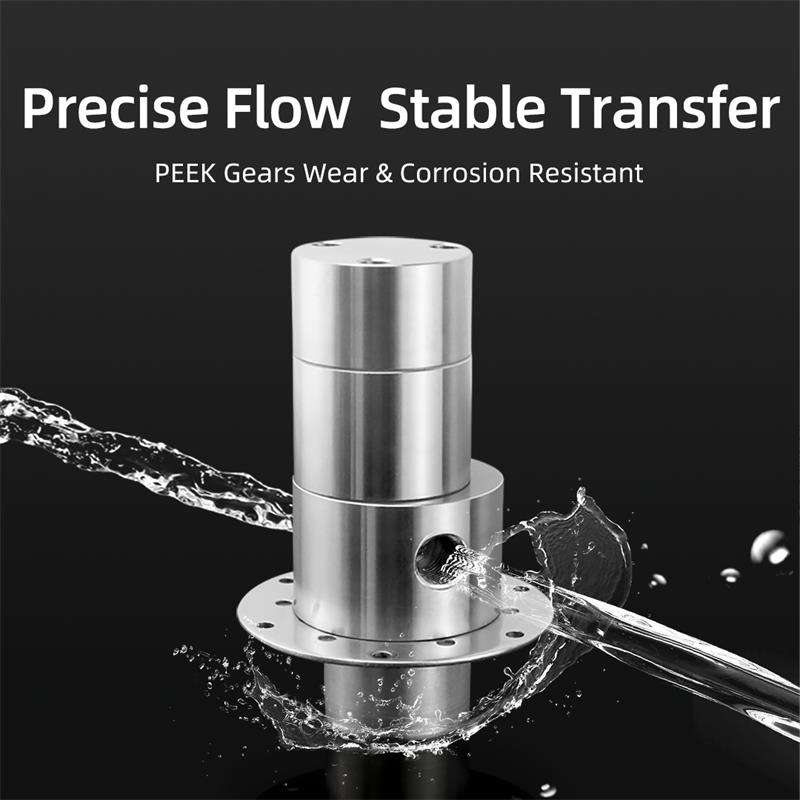

Gear Material:PEEK
Pump Body Material:SUS316L
Shaft Material:Stainless steel
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Key attributes
application
Automotive Industry
pressure
Low Pressure
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
Guangdong, China
power source
Electric
structure
Gear Pump
model number
GQA175ESLD01
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Alcohol, Diesel, oils, Water
Displacement
1.75ml/rev
Max Flow Rate
7.3L/min
Max Pressure
0.35MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Nominal Displacement
1.75ml/rev
Max. Flow Rate
7.3L/min(water as medium)
Max. Pressure
0.35MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4200rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Shaft Material
Stainless steel
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
£12225
100 - 499 pieces
£9780
>= 500 pieces
£8150
Variations
Select nowShipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
