DOCOD PRECISION GROUP LIMITED logo
DOCOD PRECISION GROUP LIMITED
HK1 yr
≤9h
Response Time
≥100%
On-time delivery rate
60%
Reorder rate

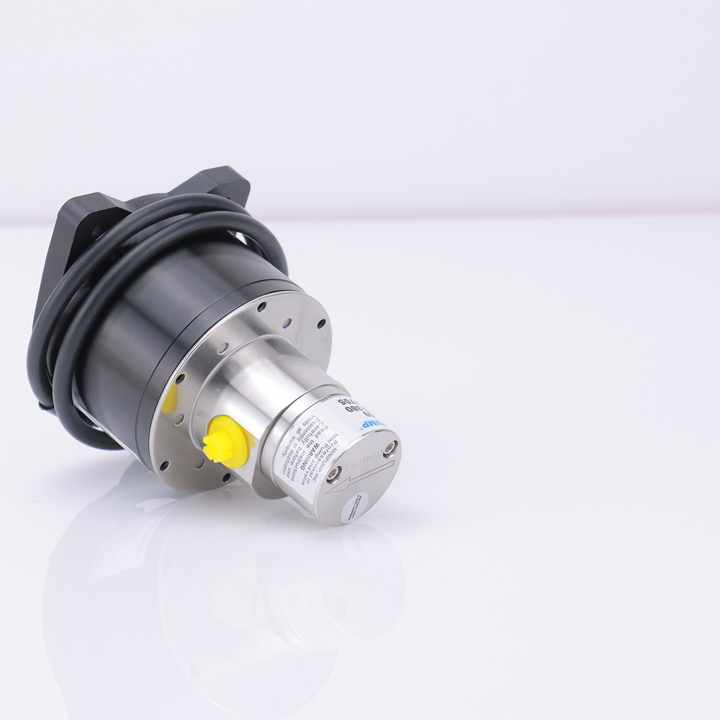

Food Grade Micro Magnetically Coupled Magnetic Drive Gear Pump Precision Metering Dosing Espresso Coffee Machine Pump

No reviews yet
$219.23
1-19 pieces
$175.38
20-49 pieces
$146.15
≥50 pieces
Select now

Flow Rate

1.4L/min

maximum head

122.4m

type

Gear pump

+ 1 more variants

Customization options
motor (Min. order: 1 piece)

Key attributes

application

Food And Beverage Industry

pressure

Low Pressure

customized support

OEM, ODM, OBM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

At a glance

  • SUS316L Pump Body: Ensures high chemical resistance and durability, making it suitable for a wide range of applications in the food and beverage industry.

  • PEEK Gear Material: Provides excellent wear resistance and thermal stability, ensuring reliable performance even under demanding conditions.

  • 500-4500rpm Operating Speed: Offers a wide range of operating speeds, allowing for precise control and flexibility in different dosing and metering applications.

  • G1/8-28 Thread Specifications: Ensures compatibility with standard fittings, simplifying installation and integration into existing systems.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

application
Food And Beverage Industry
pressure
Low Pressure
customized support
OEM, ODM, OBM
place of origin
Guangdong, China
power source
Electric
warranty
1 Year
model number
GQA032ESLB01
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
cable length
Customized
Chemical Compatibility
Water, Alcohol, Diesel, Gasoline, Kerosene, oils
Connection Type
G1/8 Female Thread
Control Method
Speed Control
Discharge Pipe Size
G1/8
Displacement
0.32mL/rev
horsepower
0.05HP
Impeller Material
PEEK
Import Size
G1/8
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
1.2MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
structure
Gear Pump
Material
Stainless Steel
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
G1/8-28
Shaft Material
Stainless steel
Compatible Drive
Brushless DC, Stepper, Servo
Flow Rate
1.4L/min

Packaging and delivery

Selling Units
Single item
Single volume
0 cm³
Single gross weight
0.0 kg

Lead time

Customization options

motor(+ from /Min. order: 1 piece)
