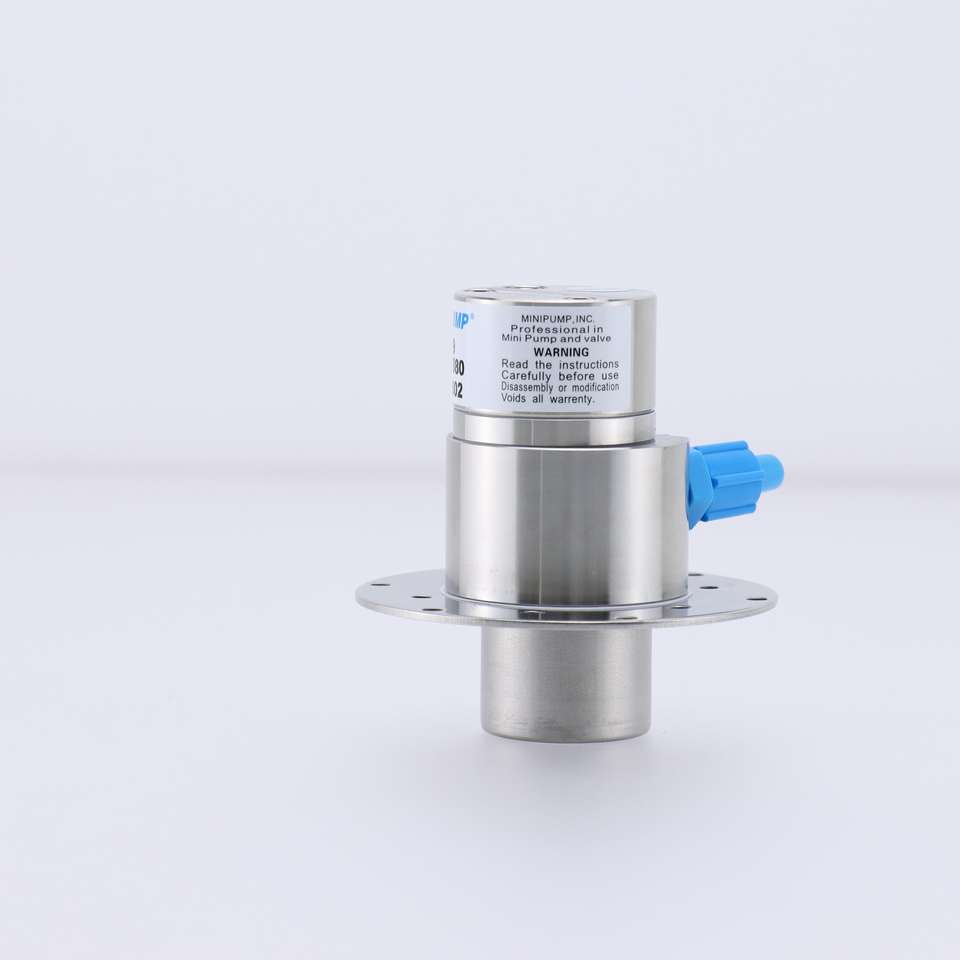

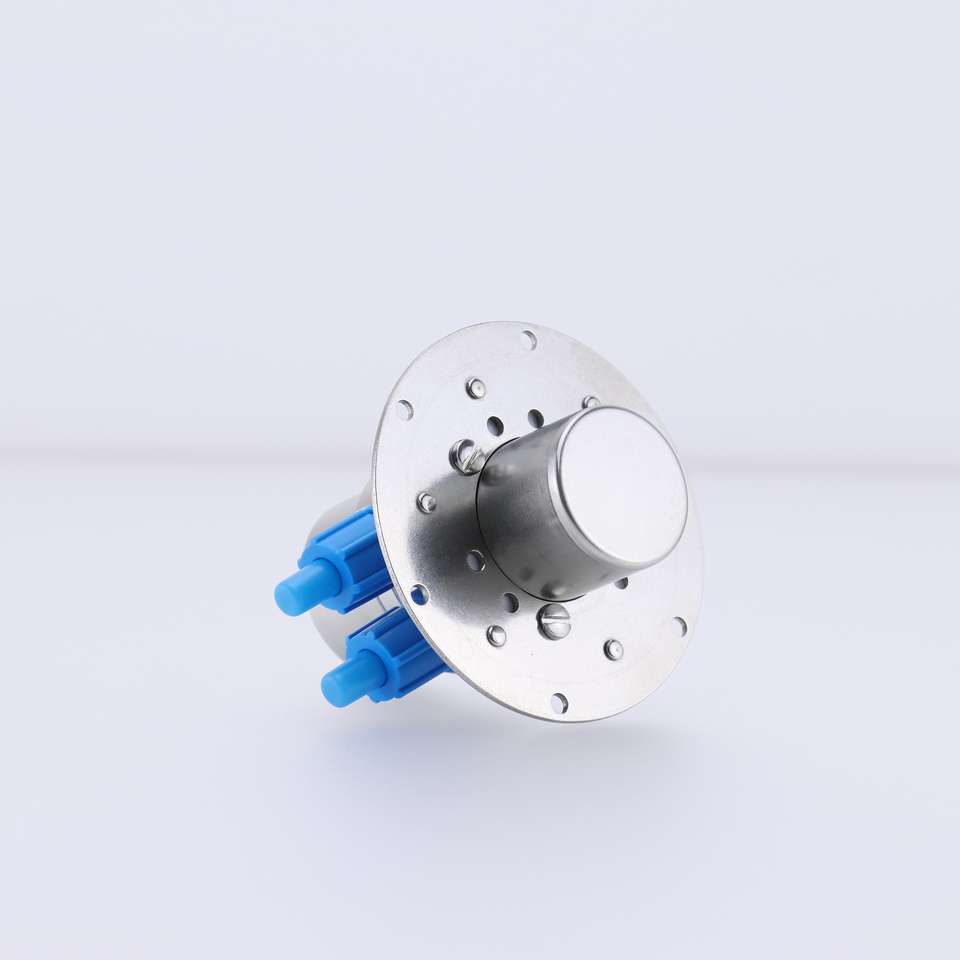

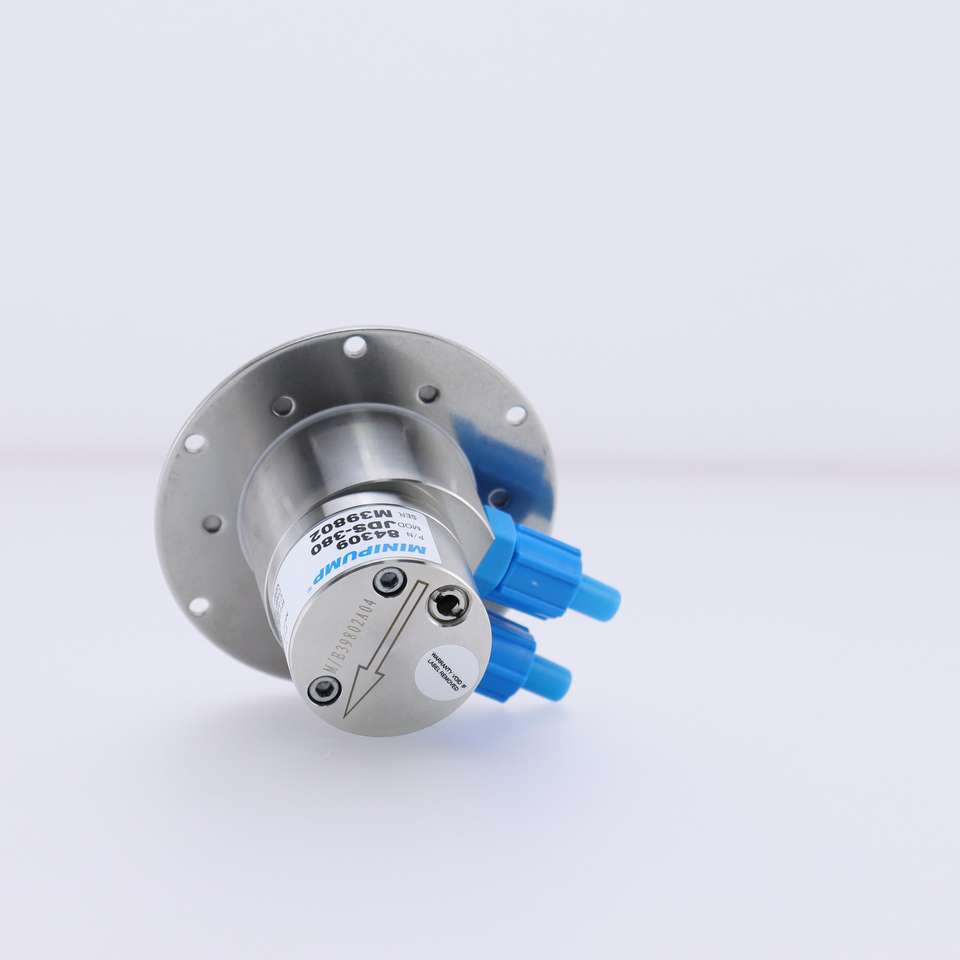

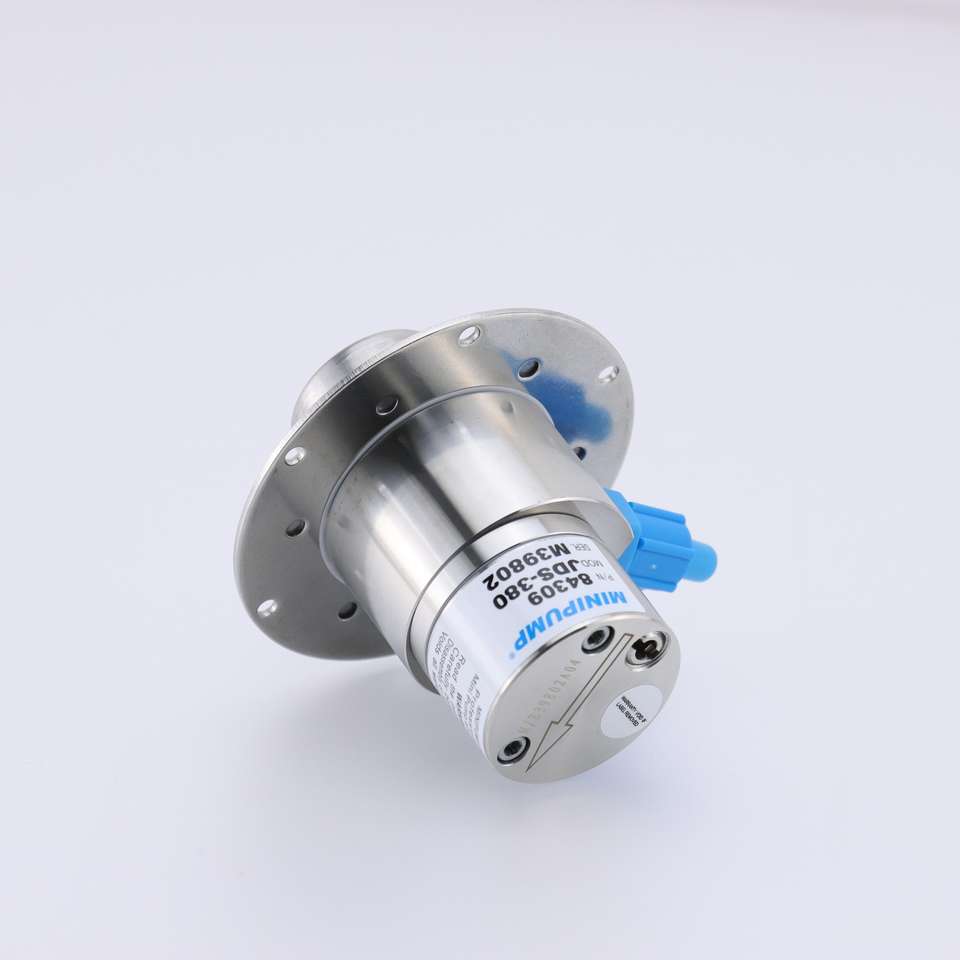

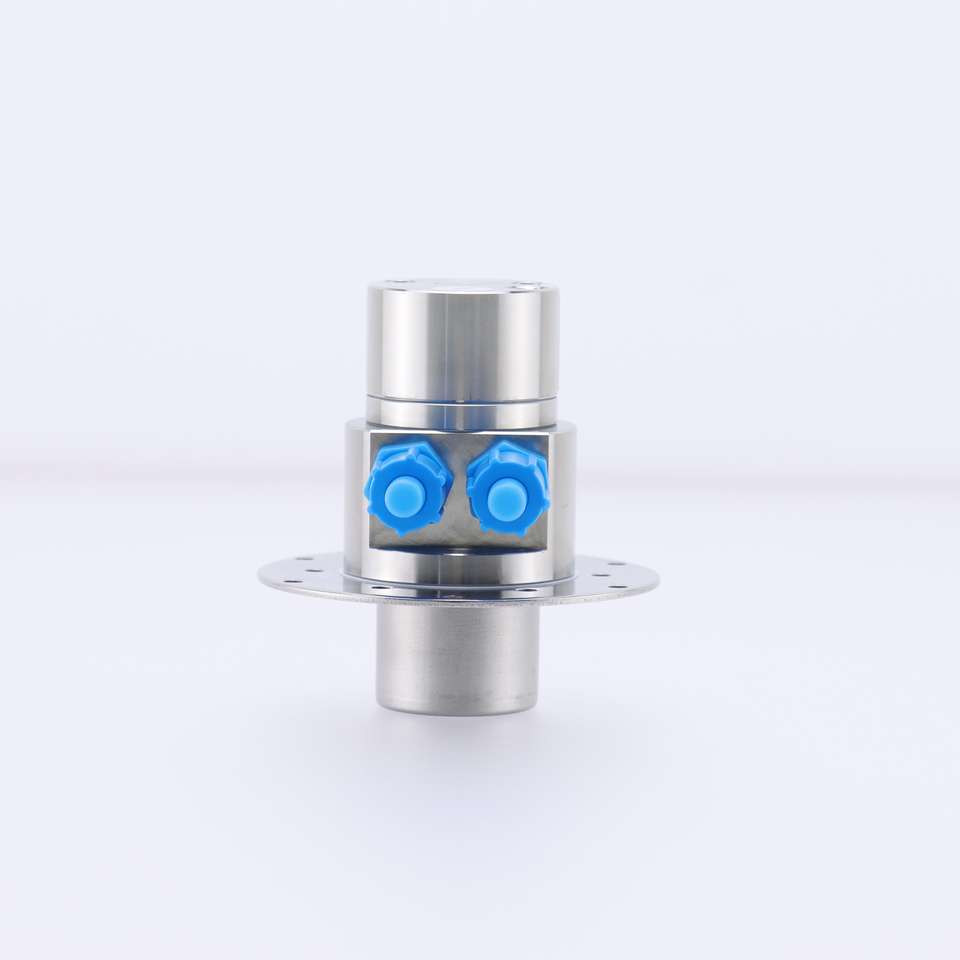

DOCOD High Corrosion Resistance Stainless Steel Magnet Dosing Low Pressure 1.4L/min Gear Pump
No reviews yet
Attributes
Otherapplication
Low Pressurepressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Guangdong, Chinaplace of origin
Electricpower source
structure:Gear Pump
model number:GQA032ESHB01
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
Chemical Compatibility:Water
Max Flow Rate:1.4L/min(water as medium)
Max Pressure:0.05-1.2MPa (preset value0.7MPa)
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:0.32mL/rev
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Key attributes
application
Other
pressure
Low Pressure
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
Guangdong, China
power source
Electric
structure
Gear Pump
model number
GQA032ESHB01
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Water
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
0.05-1.2MPa (preset value0.7MPa)
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Nominal Displacement
0.32mL/rev
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
£9470
100 - 499 pieces
£7576
>= 500 pieces
£6314
Variations
Select nowShipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
