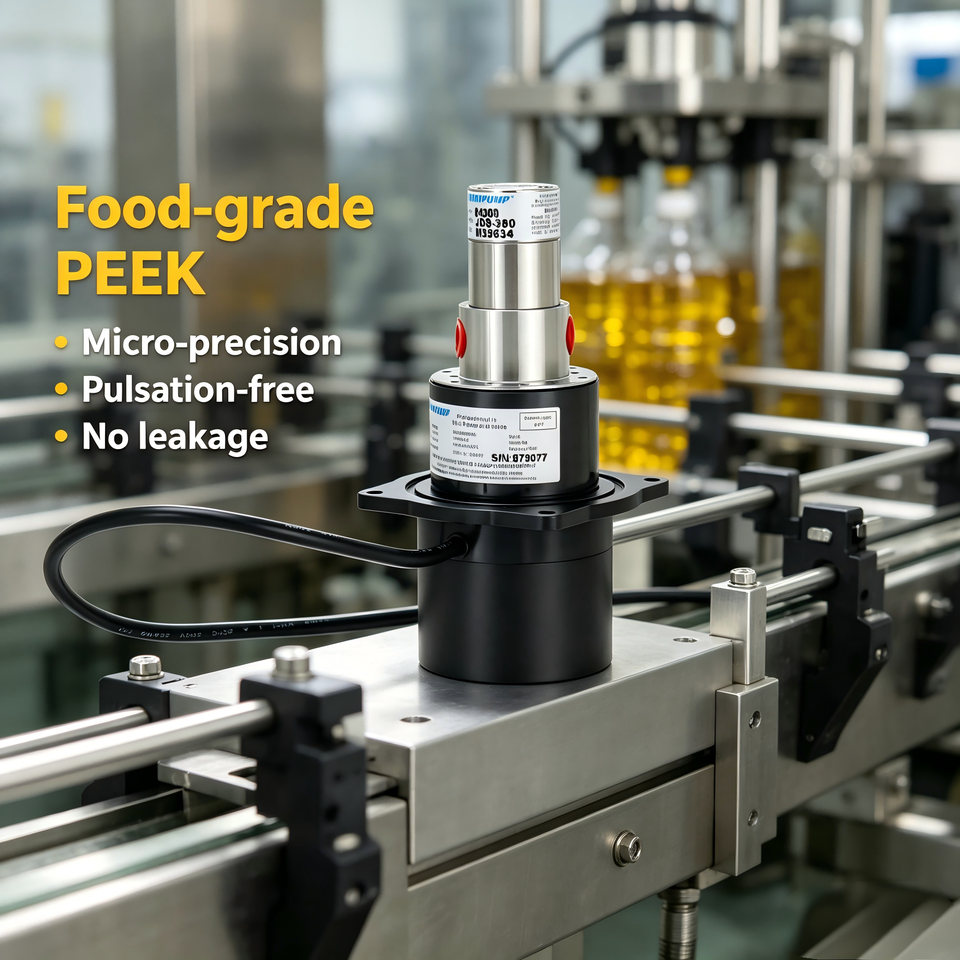

Food-Grade PEEK Micro Magnetic Drive Gear Pump for Precision Edible Oil and Beverage Dosing in Automatic Liquid Filling Machines
No reviews yet4 sold
£24587
1-99 pieces
£19670
100-499 pieces
£16392
≥500 pieces
Flow Rate
Maximum Head
Type
Customization options
motor (Min. order: 1 piece)
Key attributes
Application
Automotive Industry
Pressure
0.35MPa
Customized Support
OEM, ODM, OBM
Place of Origin
Guangdong, China
Power Source
Electric
Warranty
1 Year
Shipping
Select shipping
Alibaba.com order protection
Secure payments
Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols
Money-back protection
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Payment & financing
Buy now, pay later
Key attributes
Application
Automotive Industry
Pressure
0.35MPa
Customized Support
OEM, ODM, OBM
Place of Origin
Guangdong, China
Power Source
Electric
Warranty
1 Year
Model Number
GQA175FSLD01
Brand Name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Water, Alcohol, oils, Diesel
Max Flow Rate
7.3L/min
Max Pressure
0.35MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Sealing Material
Ceramic, Magnetic, PTFE, Stainless Steel
Structure
Gear Pump
Material
Stainless Steel
Nominal Displacement
1.75ml/rev
Max. Flow Rate
7.3L/min(water as medium)
Max. Pressure
0.35MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4200rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
