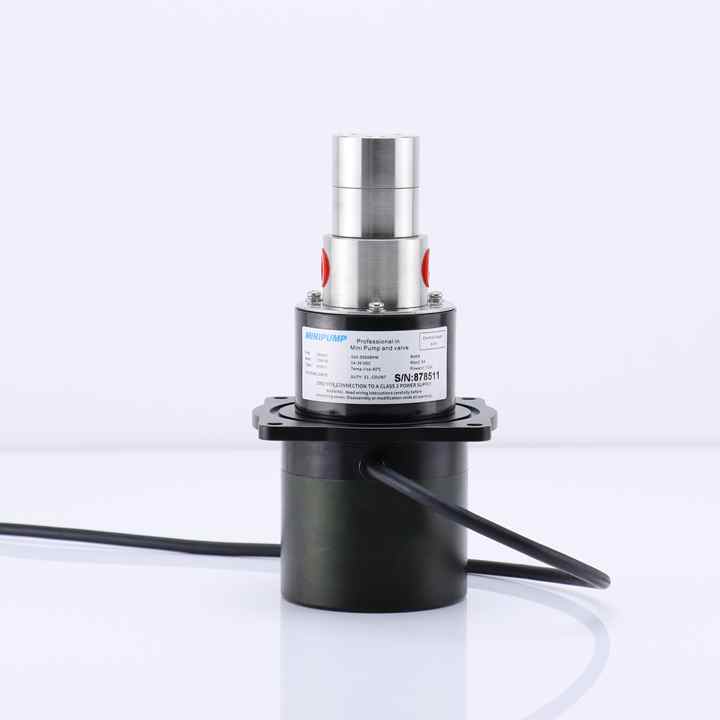

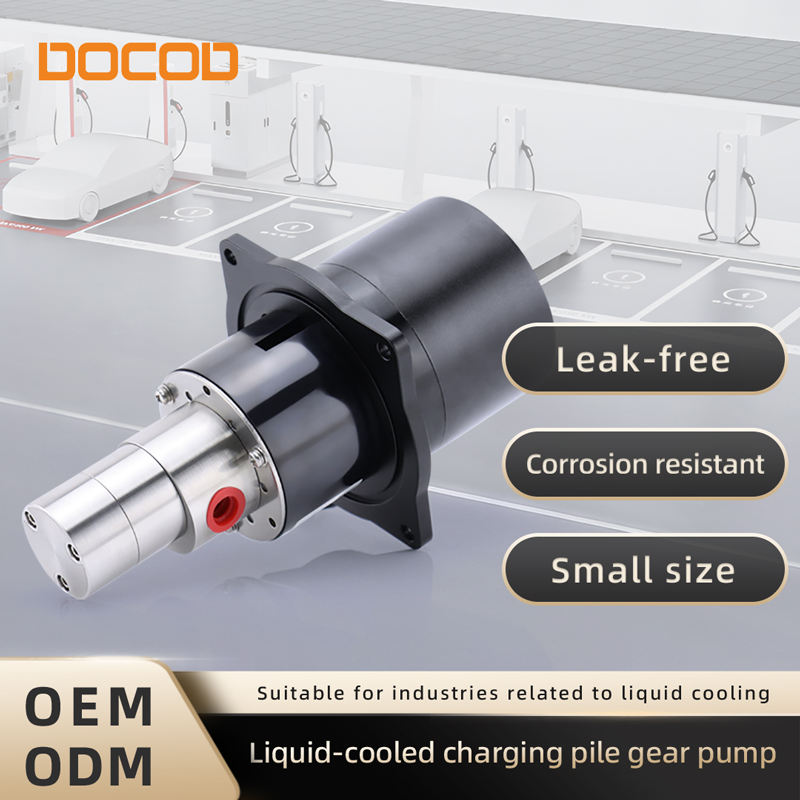

DOCOD Stainless Steel Low Flow Miniature Food Grade Oil Seal Metering Dosing Pumps Water Gear Pump Drinking Automatic Filling

No reviews yet

$299.54

1-99 pieces

$239.63

100-499 pieces

$199.69

≥500 pieces

Flow Rate

6L/min(water as medium)

maximum head

other

type

gear pump

+ 1 more variants

Key attributes

application

Automotive Industry

pressure

Low Pressure

customized support

OEM, ODM, OBM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

application

Automotive Industry

pressure

Low Pressure

customized support

OEM, ODM, OBM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

model number

GQA125ESLD01

brand name

DOCOD

Applicable temperature

-40 to 105 degrees Celsius

Chemical Compatibility

Water, oils, Diesel, Alcohol

Displacement

1.25ml/rev

Max Flow Rate

6L/min(water as medium)

Max Pressure

0.25MPa

motor

Servo Motor, Stepper Motor, Brushless DC Motor

Sealing Material

Ceramic

structure

Gear Pump

Material

Stainless Steel

Operating Speeds

500-4500rpm

Rated Voltage

24VDC

Rated Power

70W

Gear Material

PEEK

Pump Body Material

SUS316L

Static Seal

PTFE (gaskets), EPDM (O-rings)

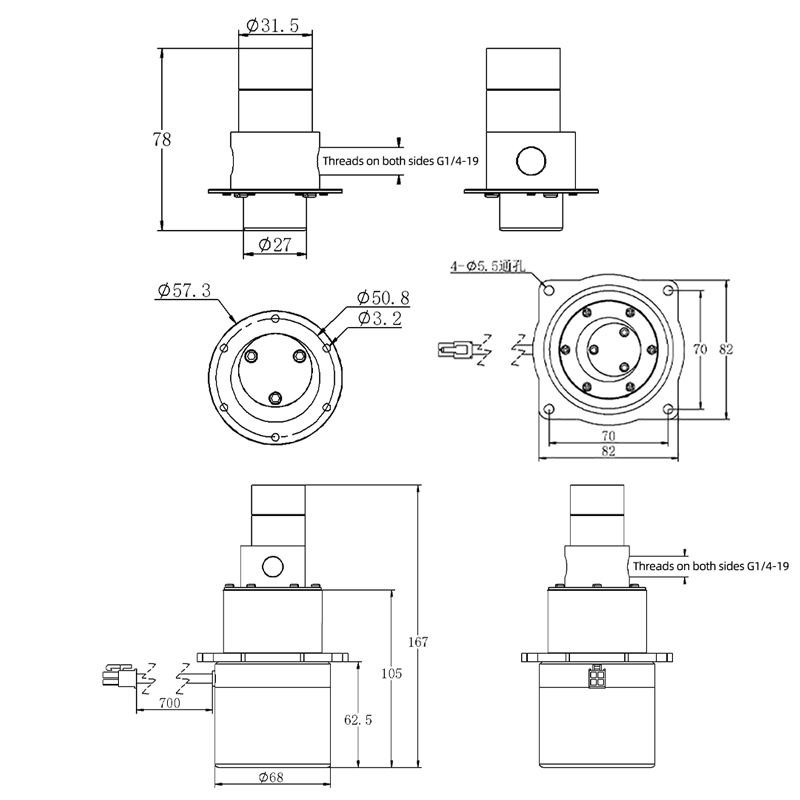

thread specifications

Standard configuration NPT1/4-18(customizable)

Compatible Drive

Brushless DC, Stepper, Servo

Max. Flow Rate

6L/min(water as medium)

Max. Pressure

0.25MPa

Viscosity Range

0.5-1500CP

Shaft Material

Stainless steel

Temperature resistance

-40 to 105 degrees Celsius

Packaging and delivery

Selling Units

Single item

Single volume

0 cm³

Single gross weight

0.0 kg

Lead time
