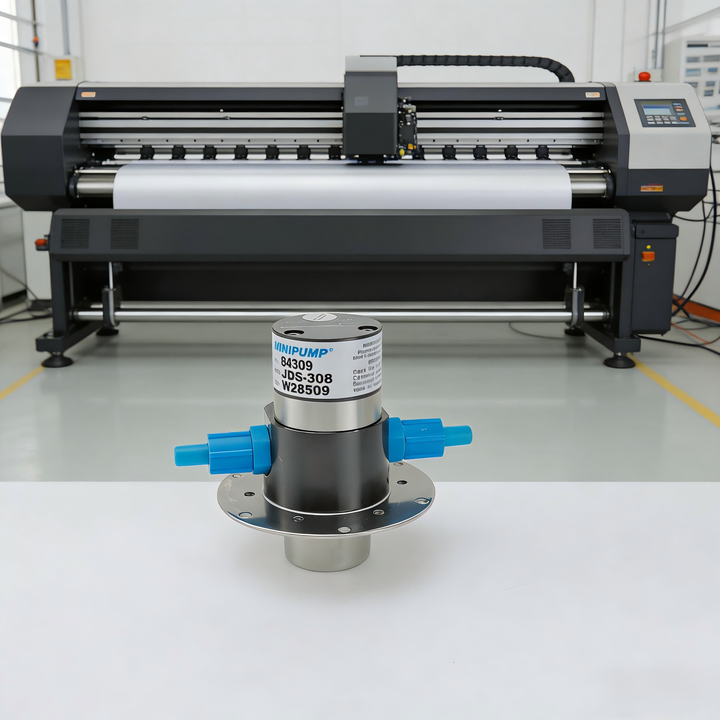

DOCOD Magnetic Drive Micro Liquid Gear Pumps for Ink-jet Printing Machine and Coffee Machine

Name: DOCOD Magnetic Drive Micro Liquid Gear Pumps for Ink-jet Printing Machine and Coffee Machine
Brand: DOCOD PRECISION GROUP LIMITED
SKU: 1601709309878
Price: 192.31 USD
Availability: InStock

No reviews yet

DOCOD PRECISION GROUP LIMITED

1 yr

Attributes

Automotive Industryapplication

Gear Pumpstructure

2.5L/minMax Flow Rate

0.8MPa (preset value0.7MPa)Max Pressure

Electricpower source

Alcohol, Diesel, oils, WaterChemical Compatibility

Applicable temperature:-40 to 105 degrees Celsius

Material:Stainless Steel

motor:Servo Motor, Brushless DC Motor, Stepper Motor

warranty:1 Year

customized support:OEM, ODM, OBM

pressure:Low Pressure

model number:GQB065ESLB01

place of origin:Guangdong, China

brand name:DOCOD

Nominal Displacement:0.65ml/rev

Max. Flow Rate:2.5L/min (water as medium)

Max. Pressure:0.8MPa

Viscosity Range:0.5-1500CP

Operating Speeds:500-4500rpm

Rated Voltage:24VDC

Rated Power:40W

Gear Material:Metal

Pump Body Material:SUS316L

Static Seal:PTFE (gaskets), EPDM (O-rings)

thread specifications:Standard configuration G1/8-28(customizable)

Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor

Temperature resistance:-40 to 105 degrees Celsius

Shaft Material:Porcelain

Product spotlights

SUS316L Pump Body: The pump body made of SUS316L stainless steel ensures high resistance to corrosion and compatibility with a wide range of chemicals, making it suitable for various industrial applications.

Wide Viscosity Range: With a viscosity range of 0.5-1500CP, the pump can handle a variety of fluids, from thin inks to thicker oils, providing flexibility in different operating conditions.

High Operating Speeds: The pump operates at speeds between 500-4500rpm, allowing for efficient and precise fluid delivery in both low and high flow rate applications.
