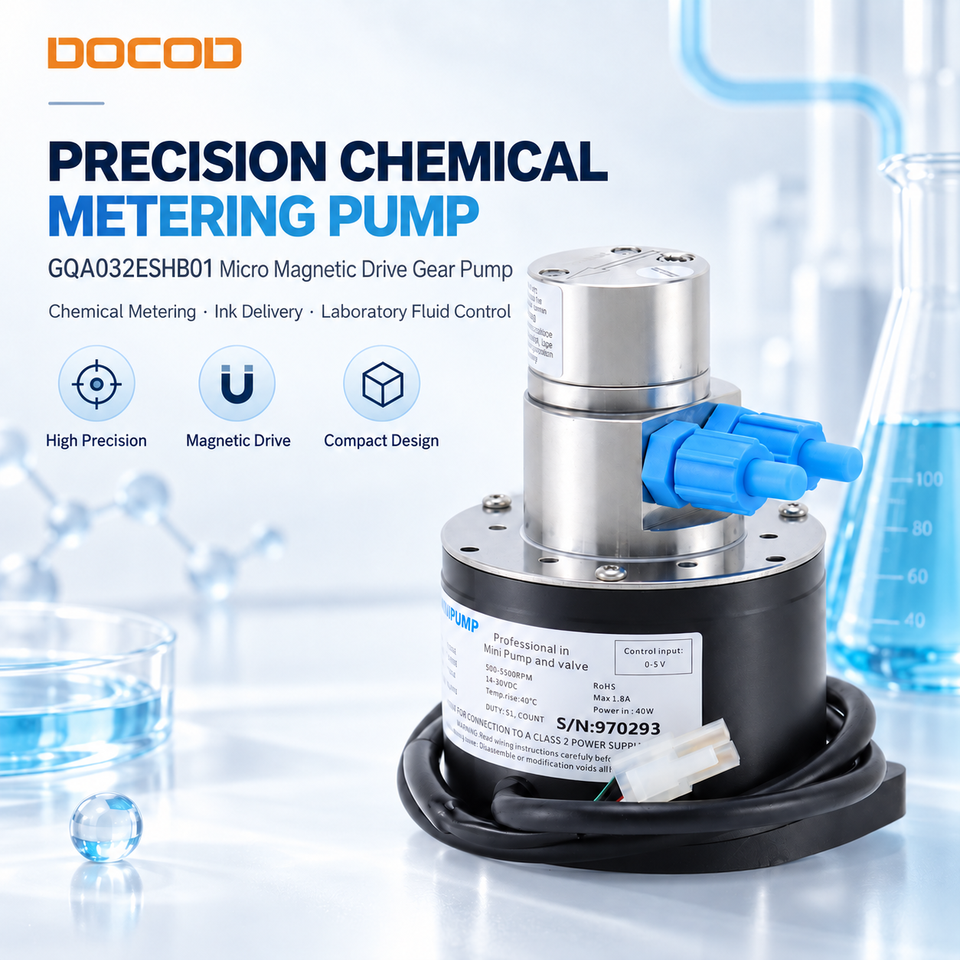

DOCOD Manufacturer Customization Metering Pump Micro Water Liquid Transfer Magnetic Drive Gear Pump With 40w BLDC Motor

No reviews yet

Attributes

Otherapplication
Gear Pumpstructure
1.4L/min(water as medium)Max Flow Rate
0.05-1.2MPa (preset value0.7MPa)Max Pressure
Electricpower source
Water, Alcohol, Diesel, oilsChemical Compatibility
pressure:Low Pressure
customized support:OEM, ODM, OBM
place of origin:Guangdong, China
warranty:1 Year
model number:GQA032ESHB01
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:0.32mL/rev
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
company logo
DOCOD PRECISION GROUP LIMITED
HK1 yr on Alibaba.com
Response Time ≤ 5hOn-time delivery rate ≥ 100%

Key attributes

application
Other
structure
Gear Pump
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
0.05-1.2MPa (preset value0.7MPa)
power source
Electric
Chemical Compatibility
Water, Alcohol, Diesel, oils
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
Low Pressure
model number
GQA032ESHB01
brand name
DOCOD
place of origin
Guangdong, China
Nominal Displacement
0.32mL/rev
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)

Packaging and delivery

Selling Units
Single item

Lead time

Product descriptions from the supplier

1 - 99 pieces
£16490
100 - 499 pieces
£13192
>= 500 pieces
£10993

Variations

Select now

Flow Rate: 1.4L/min

1.4L/min

maximum head: other

other

type: Gear pump

Gear pump

voltage

24VDC
