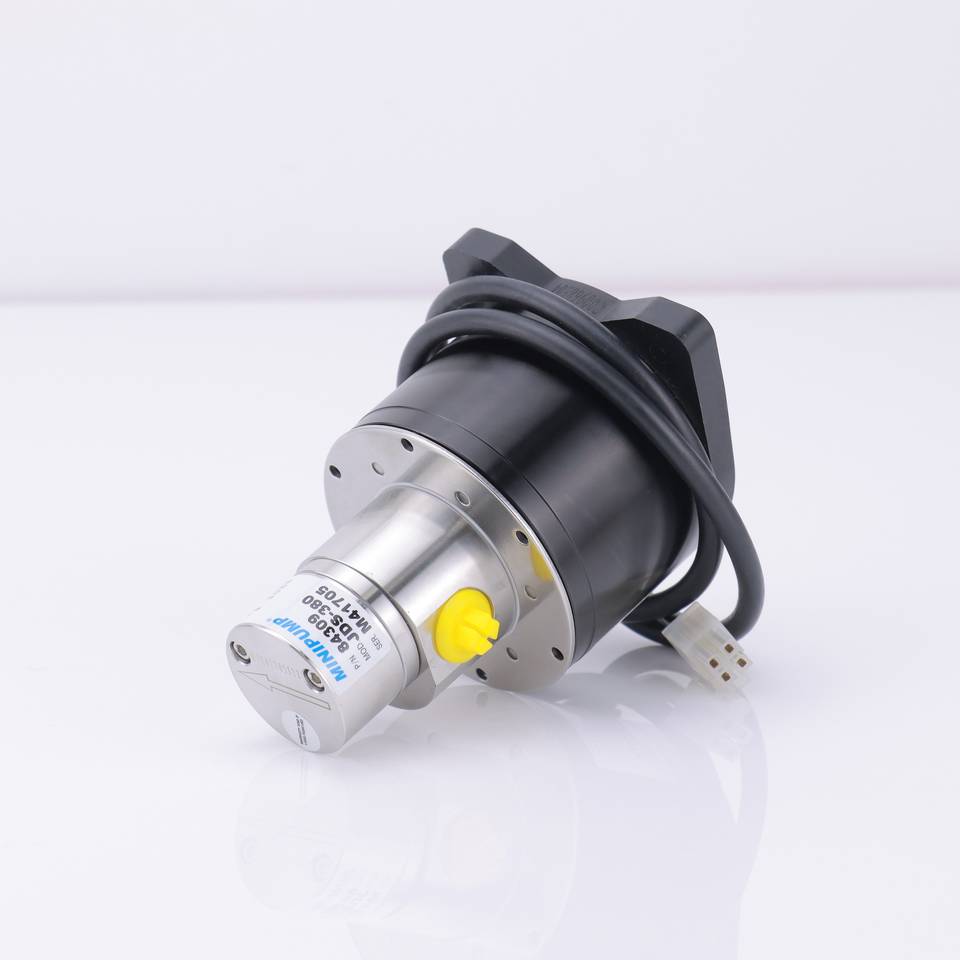

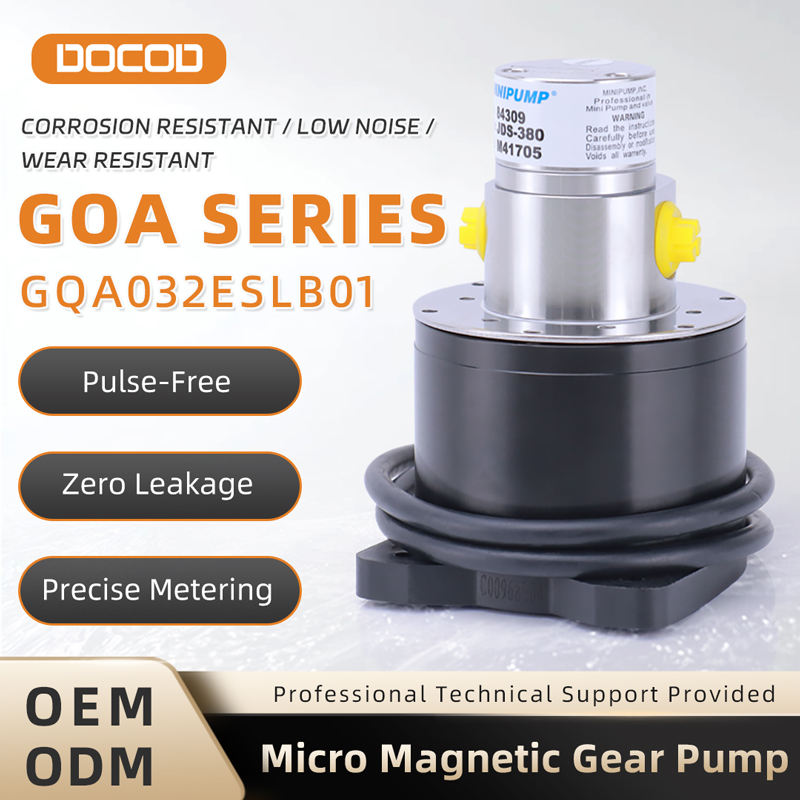

1.4L/min Stainless Steel Micro Magnetic Drive Gear Pump for Coffee and Espresso Machine Water Delivery

No reviews yet6 sold
£16698
1-99 pieces
£13358
100-499 pieces
£11132
≥500 pieces
Flow Rate
maximum head
type
Customization options
motor (Min. order: 1 piece)

Key attributes

application

Food And Beverage Industry

pressure

Low Pressure

customized support

OEM, ODM, OBM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

At a glance

  • SUS316L Pump Body: The SUS316L material ensures high corrosion resistance and durability, making it suitable for use in the food and beverage industry.

  • PEEK Gear Material: Using PEEK for the gear provides excellent wear resistance and chemical compatibility, ensuring long-term reliability in various applications.

  • 24VDC Rated Voltage: Operating at 24VDC allows for efficient and safe power consumption, making it compatible with a wide range of electrical systems.

  • 500-4500rpm Operating Speeds: A wide operating speed range of 500-4500rpm offers flexibility in adjusting flow rates to meet specific application requirements.

Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Payment & financing

Buy now, pay later

Key attributes

application
Food And Beverage Industry
pressure
Low Pressure
customized support
OEM, ODM, OBM
place of origin
Guangdong, China
power source
Electric
warranty
1 Year

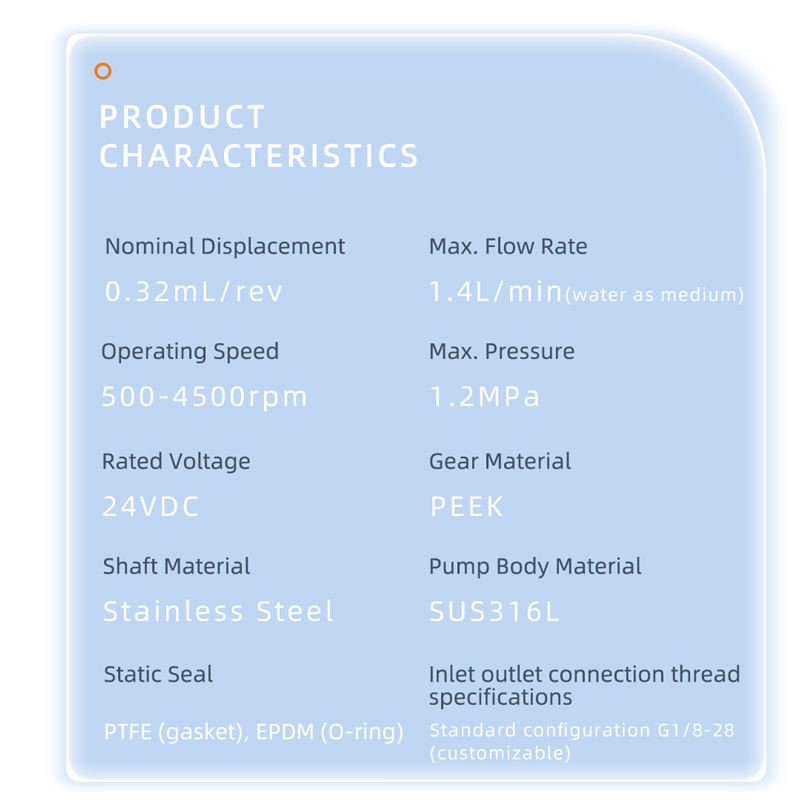

model number
GQA032ESLB01
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Water
Displacement
0.32mL/rev
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
1.2MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
structure
Gear Pump
Material
Stainless Steel
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)

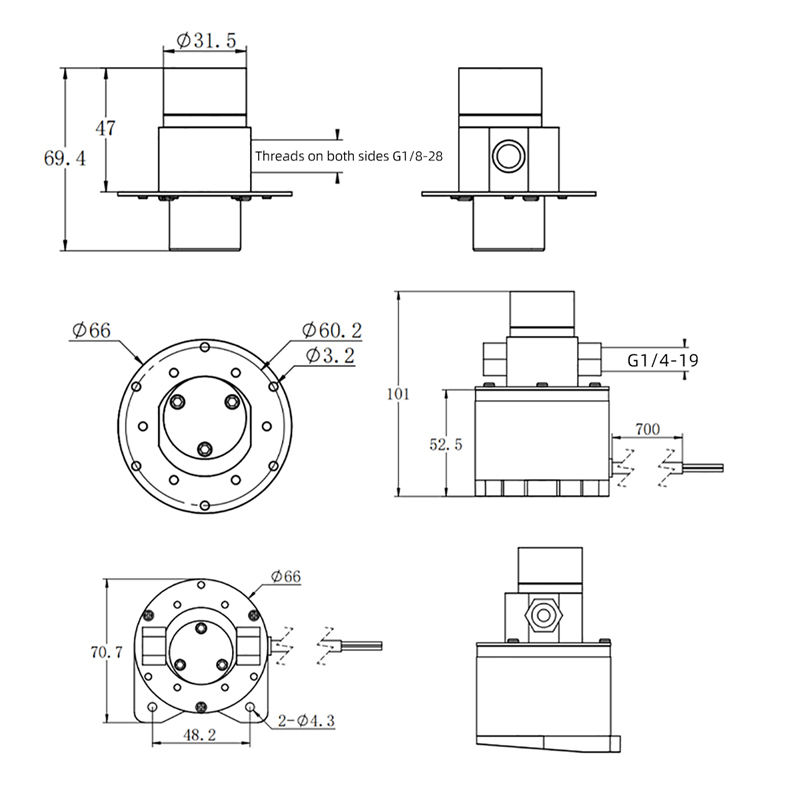

thread specifications
G1/8-28
Shaft Material
Stainless steel
Compatible Drive
Brushless DC, Stepper, Servo
Flow Rate
1.4L/min
