Attributes
DavicomBrand Name
DM9119INXModel Number
RGMIIInterface
SMTMounting Type
25+Manufacturing Date Code
Taiwan, ChinaPlace of Origin
Application:Network Interface Adapter, Surveillance Camera, Embedded System, Ethernet Hub, Ethernet Switch
Type:PHY
Series:DM9119 series

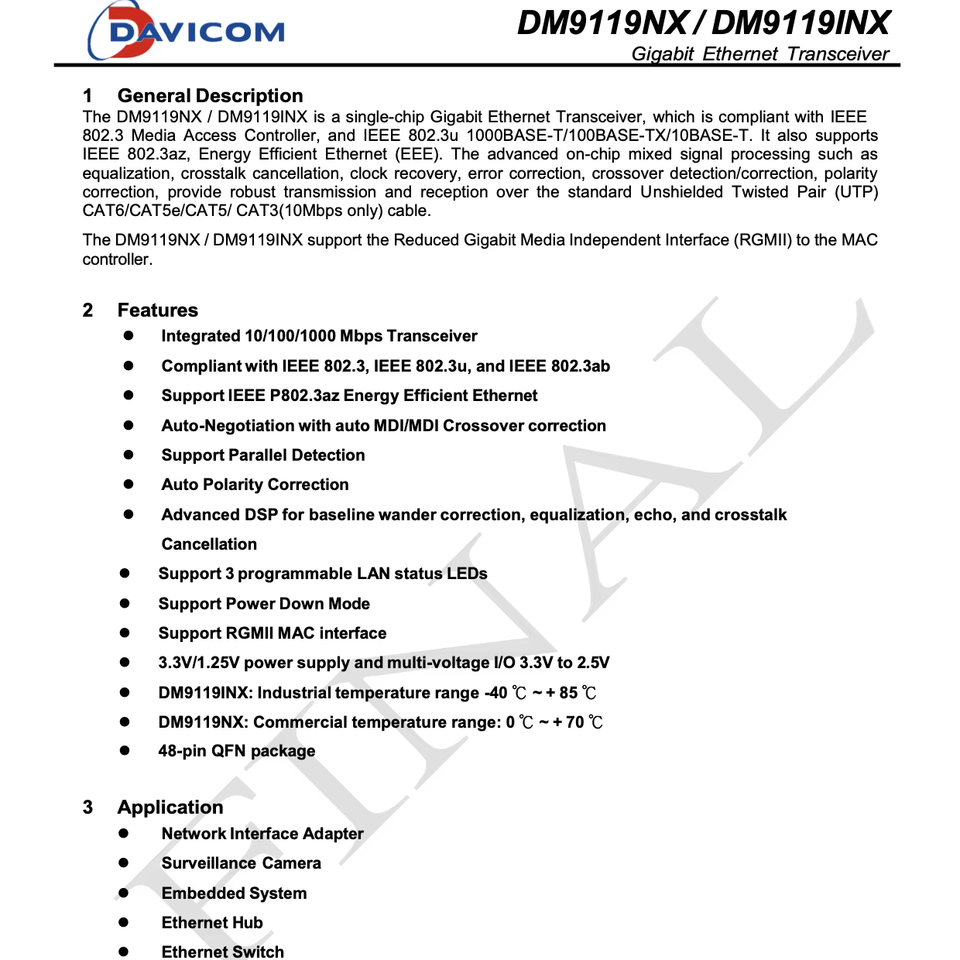

Description:The DM9119NX / DM9119INX is a single-chip Gigabit Ethernet Transceiver, which is compliant with IEEE 802.3 Media Access Controller,, and IEEE 802.3u 1000BASE-T/100BASE-TX/10BASE-T. It also supports IEEE 802.3az, Energy Efficient Ethernet (EEE). The advanced on-chip mixed signal processing such as equalization, crosstalk cancellation,, clock recovery, error correction, crossover detection/correction, polarity correction, provide robust transmission and reception over the standard Unshielded Twisted Pair (UTP) CAT6/CAT5e/CAT5/ CAT3(10Mbps only) cable., The DM9119NX / DM9119INX supports the Gigabit Media Independent Interface (GMII) and Reduced Gigabit Media Independent Interface (RGMII) to the MAC controller.

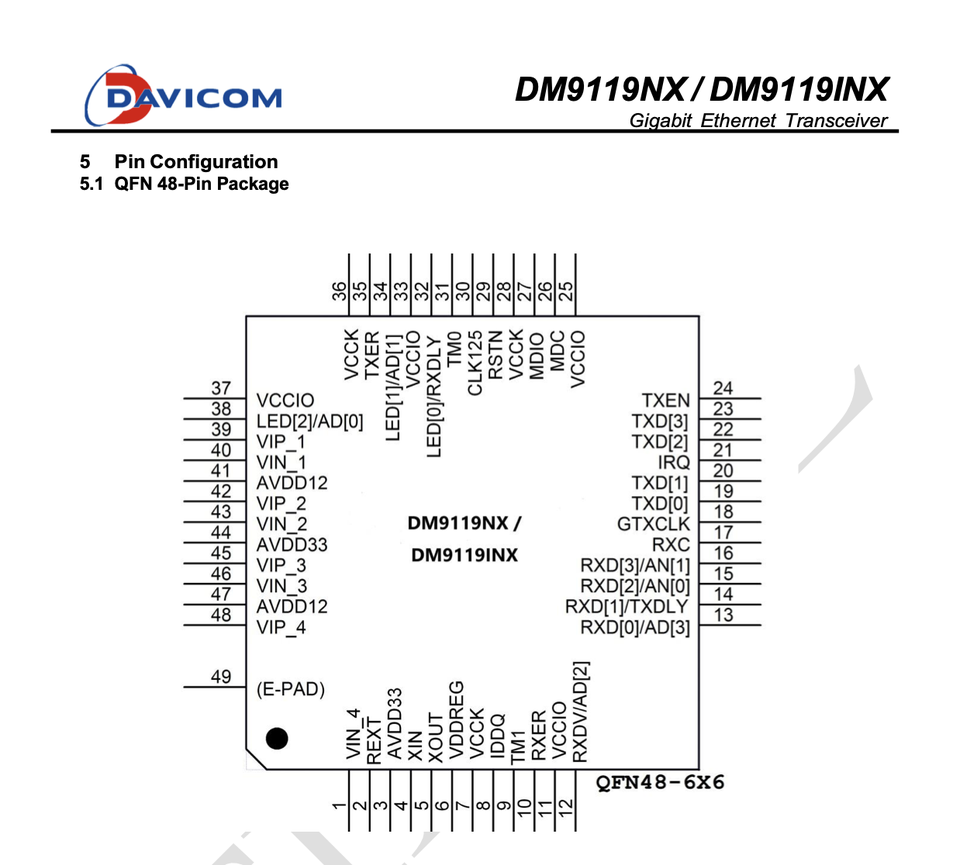

Packaging Type:48-pin QFN
Function:Integrated 10/100/1000 Mbps Transceiver, Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, Support IEEE P802.3az Energy Efficient Ethernet, Auto-Negotiation with auto MDI/MDI Crossover correction, Support Parallel Detection, Auto Polarity Correction, Advanced DSP for baseline wander correction, equalization, echo, and crosstalk Cancellation, Support 3 programmable LAN status LEDs, Support Power Down Mode, Support RGMII MAC interface, 3.3V/1.25V power supply and multi-voltage I/O 3.3V to 2.5V
Operating Temperature:0~70, -40~85
Data Rate:10/100/1000 Mbps
Package / Case:48-pin QFN

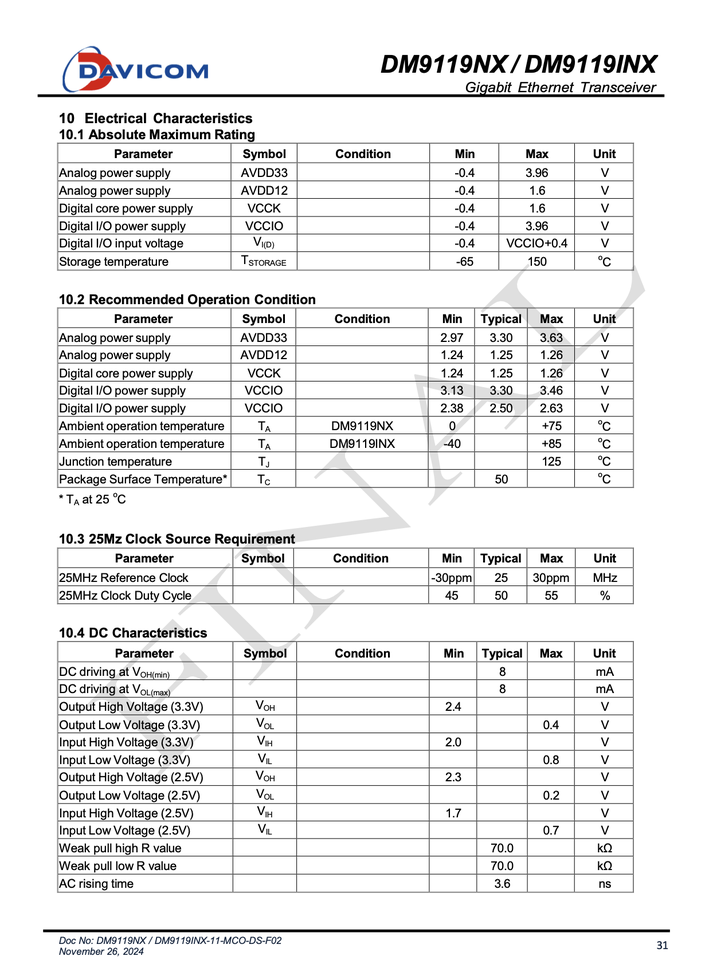

Voltage - Supply:3.3V/1.25V, I/O 3.3V to 2.5V
protocol:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Selling Units:Multiple of 490
Package size per batch:40X20X12 cm
Gross weight per batch:2.800 kg
