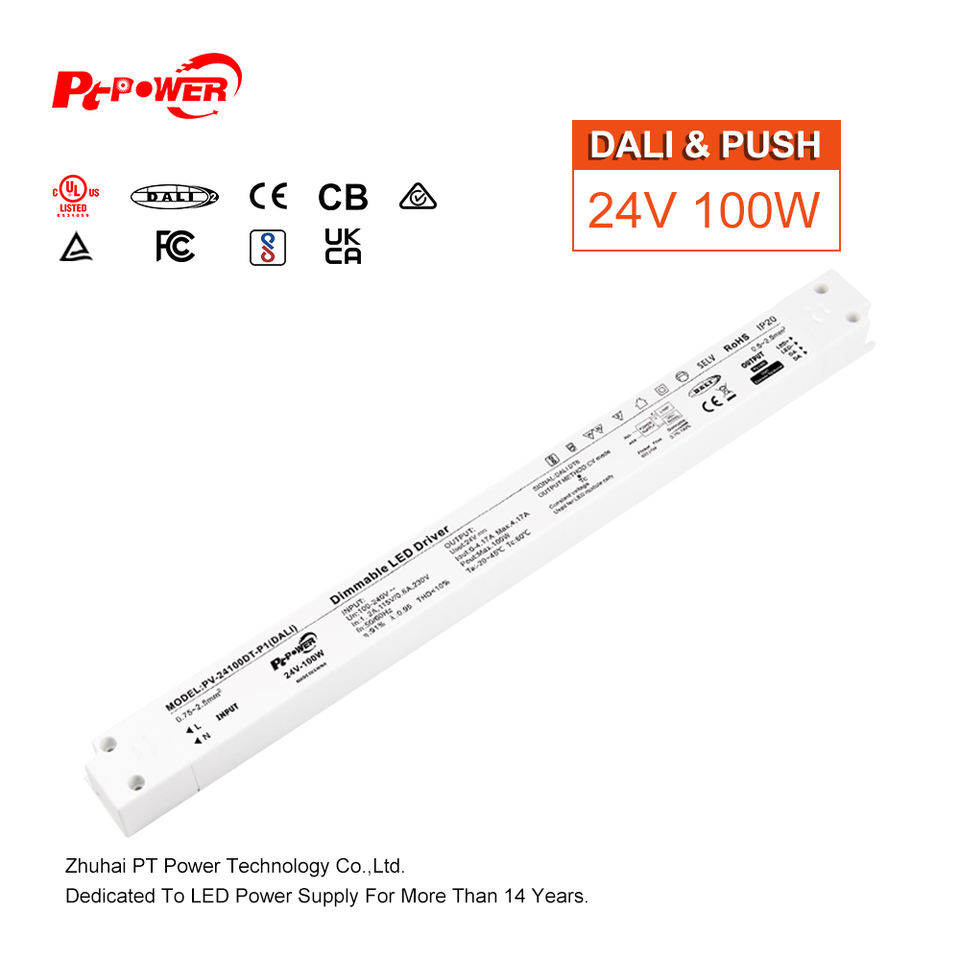

150W DALI-2 Push Dimmable Flicker Free 0-100% LED Light Power Supply 200-240V AC-DC 12V 24V IP20 Smart LED Strip Driver Single
No reviews yet
Attributes
Led Lighting, Indoor LightingApplication
AC200-240VInput Voltage
100WOutput Power
4.17A/8.33AOutput Current
IP20 Non-waterproofType
AC-DCEnergy Transfer
Warranty(Year):5-Year
Place of Origin:Guangdong, China

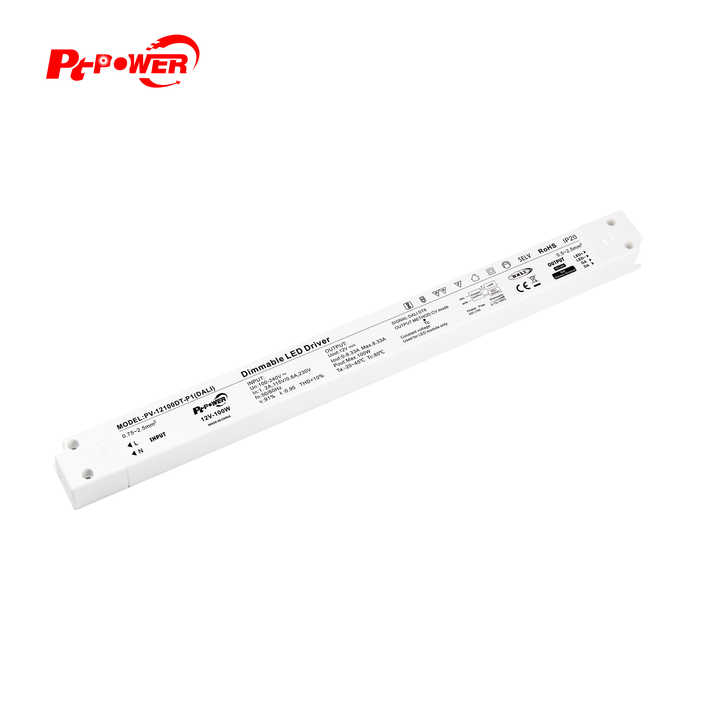

Model Number:PV-12100DT-P1(DALI) / PV-24100DT-P1(DALI)
Brand Name:Pt POWER
Case Material:Plastic
Dimming:DALI-2 Dimmable
Dimming Mode:DALI & Push Dimming
Efficiency:≥91%
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Frequency:50~60HZ
Output Type:Single
Product Weight（kg）:0.37
Topology:Ac-Dc Converter
IP Rate:IP20
Power Factor:PF≥0.95

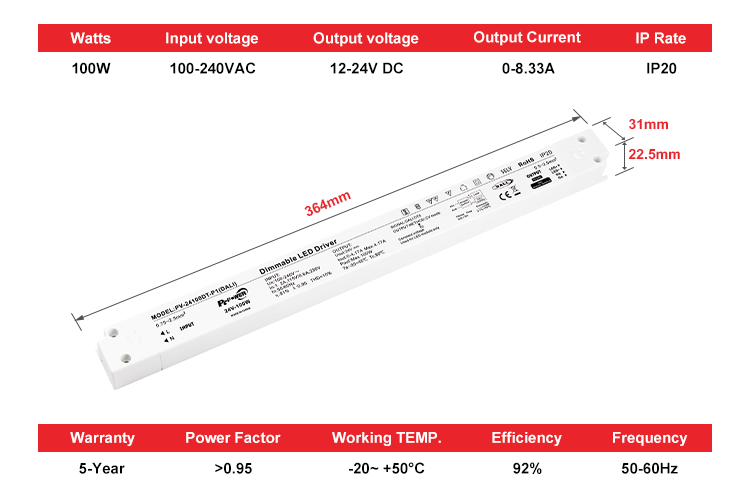

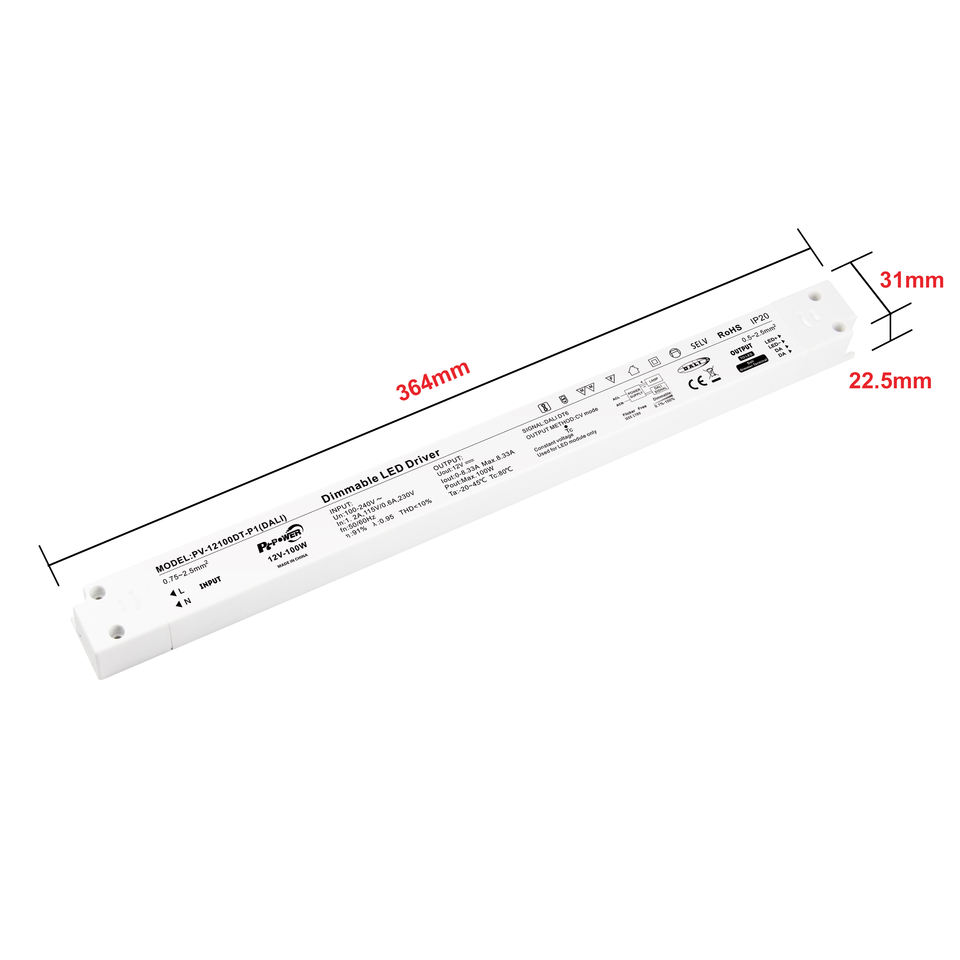

Size:334*31*22.5mm
Certification:CE/UKCA/SAA/RoHS
OEM:Yes
ODM:Yes
Feature:Flicker-free dimming 0-100%
Working temperature:-25°C~+45°C
Standby power consumption:<0.5W
DALI Standard:IEC62386
ENC Standard:EN55015,EN61000-3-2,EN61000-3-3
Safety standard:EN61347-1,EN61347-2-13
Other application:Class 1 2 3 LED Lighting
Key attributes
Application
Led Lighting, Indoor Lighting
Input Voltage
AC200-240V
Output Power
100W
Output Current
4.17A/8.33A
Type
IP20 Non-waterproof
Energy Transfer
AC-DC
Output Type
Single
Dimming Mode
DALI & Push Dimming
Dimming
DALI-2 Dimmable
Efficiency
≥91%
Topology
Ac-Dc Converter
Case Material
Plastic
Warranty(Year)
5-Year
Lighting solutions service
Lighting And Circuitry Design, Project Installation, Other
Place of Origin
Guangdong, China
Model Number
PV-12100DT-P1(DALI) / PV-24100DT-P1(DALI)
Brand Name
Pt POWER
Output Frequency
50~60HZ
Product Weight（kg）
0.37
IP Rate
IP20
Power Factor
PF≥0.95
Size
334*31*22.5mm
Certification
CE/UKCA/SAA/RoHS
OEM
Yes
ODM
Yes
Feature
Flicker-free dimming 0-100%
Working temperature
-25°C~+45°C
Standby power consumption
<0.5W
DALI Standard
IEC62386
ENC Standard
EN55015,EN61000-3-2,EN61000-3-3
Safety standard
EN61347-1,EN61347-2-13
Other application
Class 1 2 3 LED Lighting
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 500 pieces)
Customized packaging(+ from /Min. order: 500 pieces)
Graphic customization(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
2 - 499 pieces
£1392
500 - 999 pieces
£1317
≥ 1,000 pieces
£1249
Variations
Select now输入电压（伏）: AC200-240V
AC200-240V
Lamp Power(W): 100
100
Output Voltage
12 V
24 V
Customization options
Customized logo (Min. order: 500 pieces)
Customized packaging (Min. order: 500 pieces)
Graphic customization (Min. order: 500 pieces)
