Attributes
2/3-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

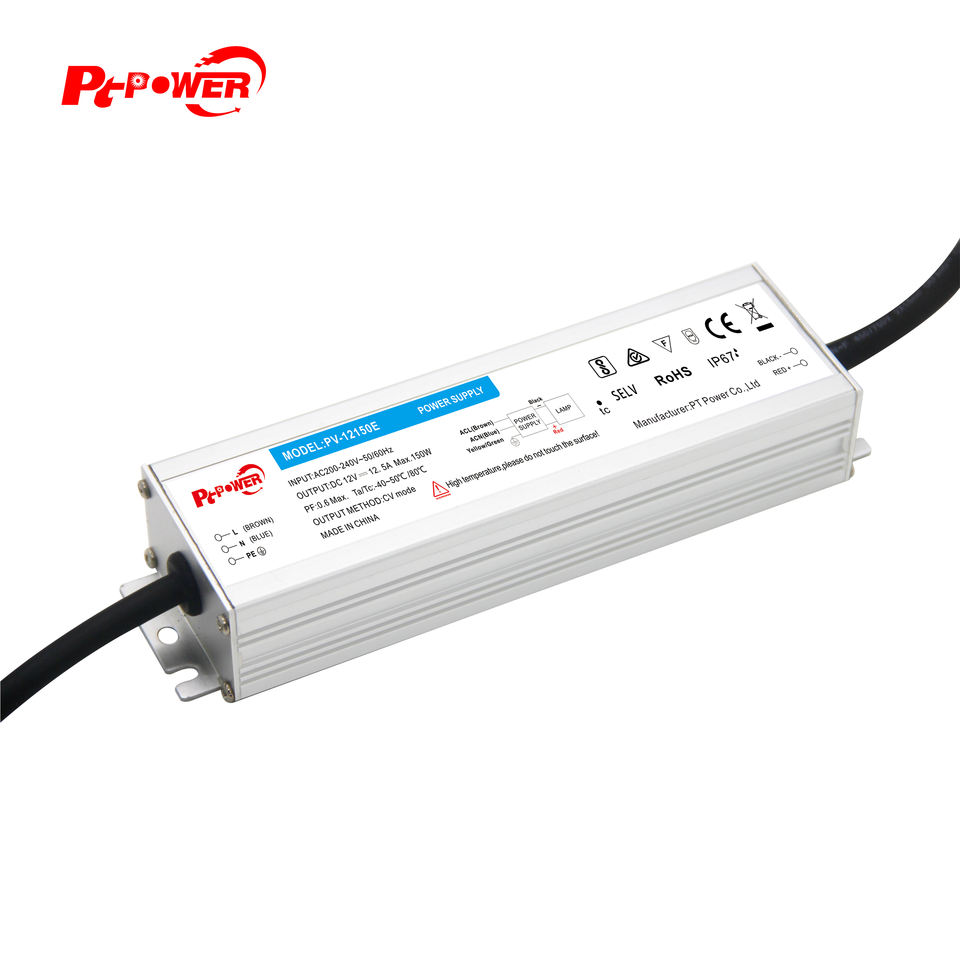

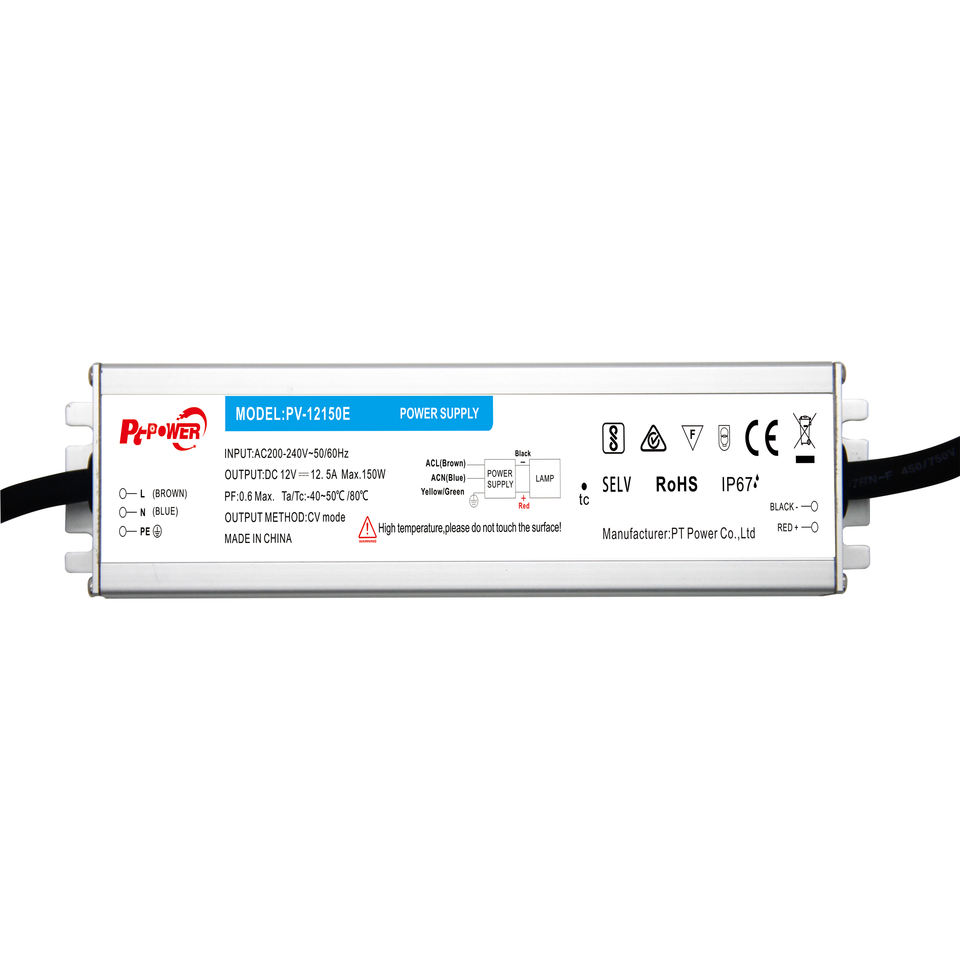

PV-12150E/PV-24150E/PV-48150EModel Number
Pt POWERBrand Name

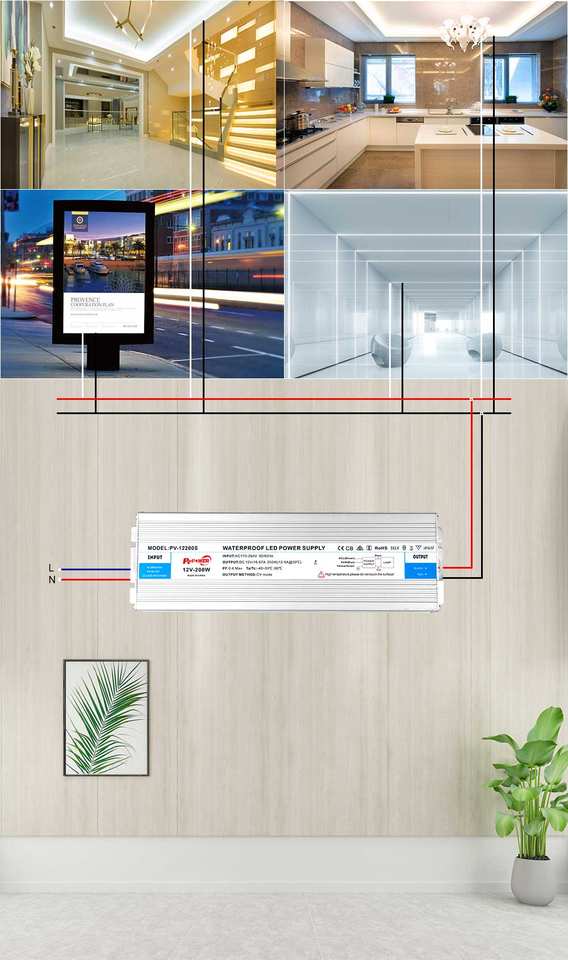

Led Lighting, Outdoor Lighting, Street LightApplication
AluminumCase Material
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥93%
Energy Transfer:AC-DC
Input Voltage:AC220-240V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:3.13A/6.25A/12.5A
Output Frequency:50/60Hz
Output Power:150W
Output Type:Single
Product Weight（kg）:0.57
Topology:Ac-Dc Converter
Type:IP67 Waterproof
Type:Constant Voltage LED driver
Waterproof Level:IP67
Certification:CB/CE/SAA/RoHS
OEM/ODM:Yes
Protection:Short circuit, overload protection
Withstand voltage:I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature:-40°C~+70°C
Safety standard:IEC61347-2-13 2014+A1 IEC61347- 2015+A1
Output voltage:DC12V/24V/48V
Size:183*51*32mm
