Attributes
3-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

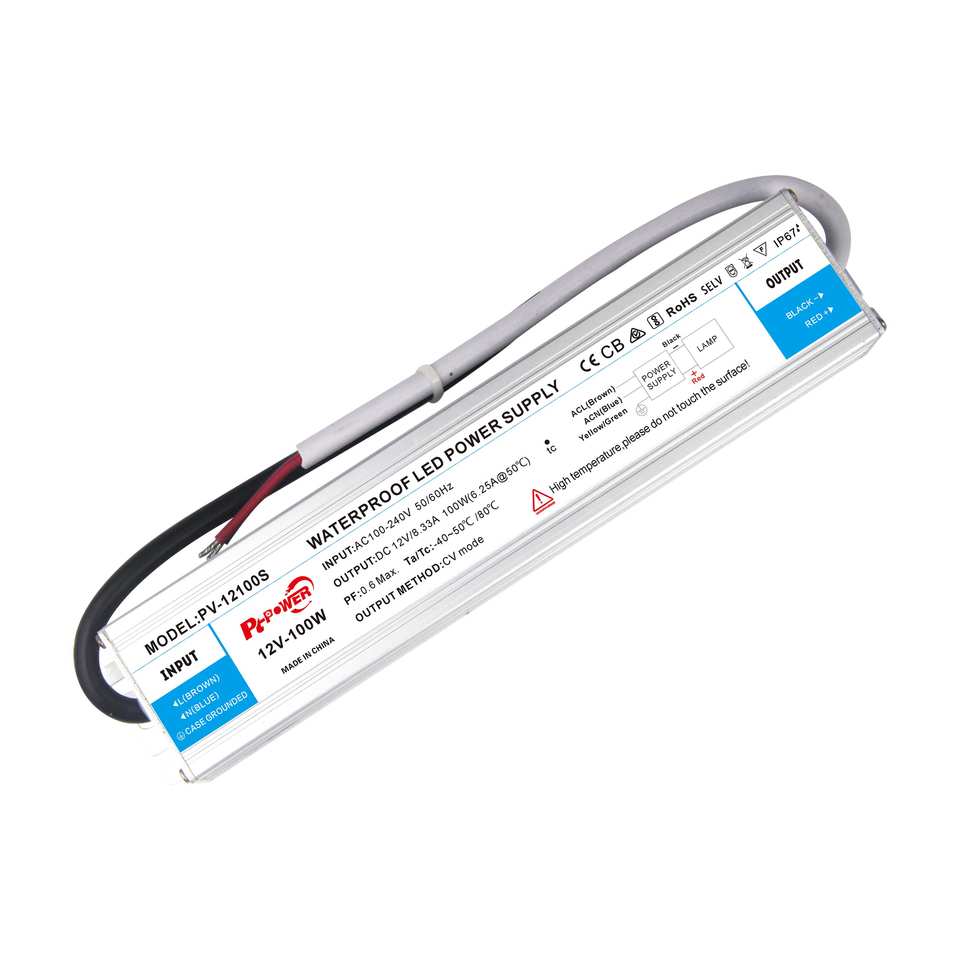

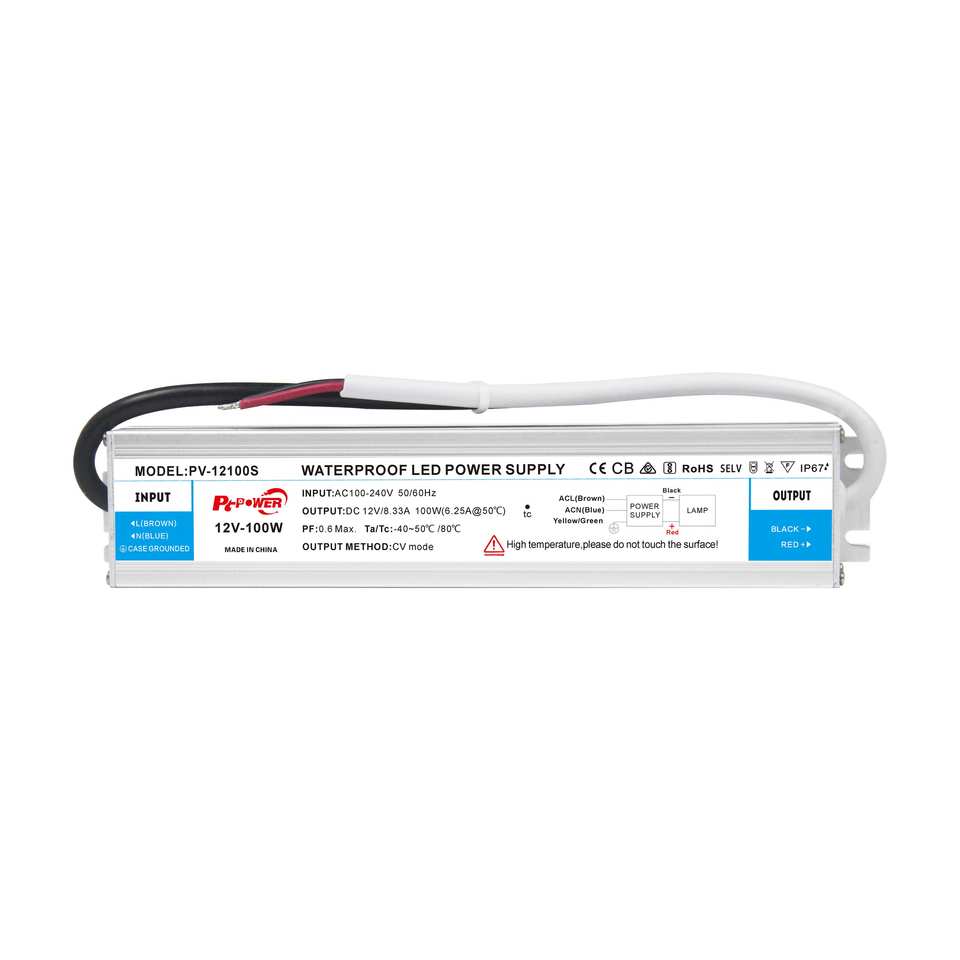

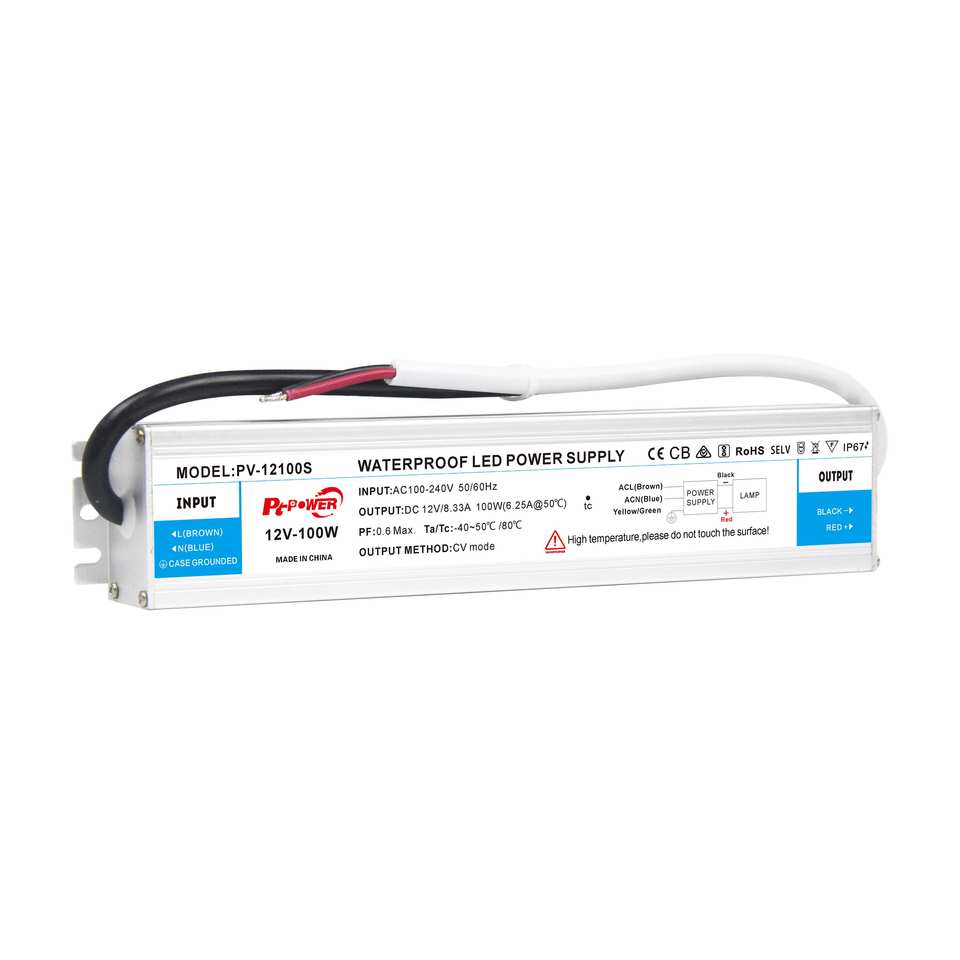

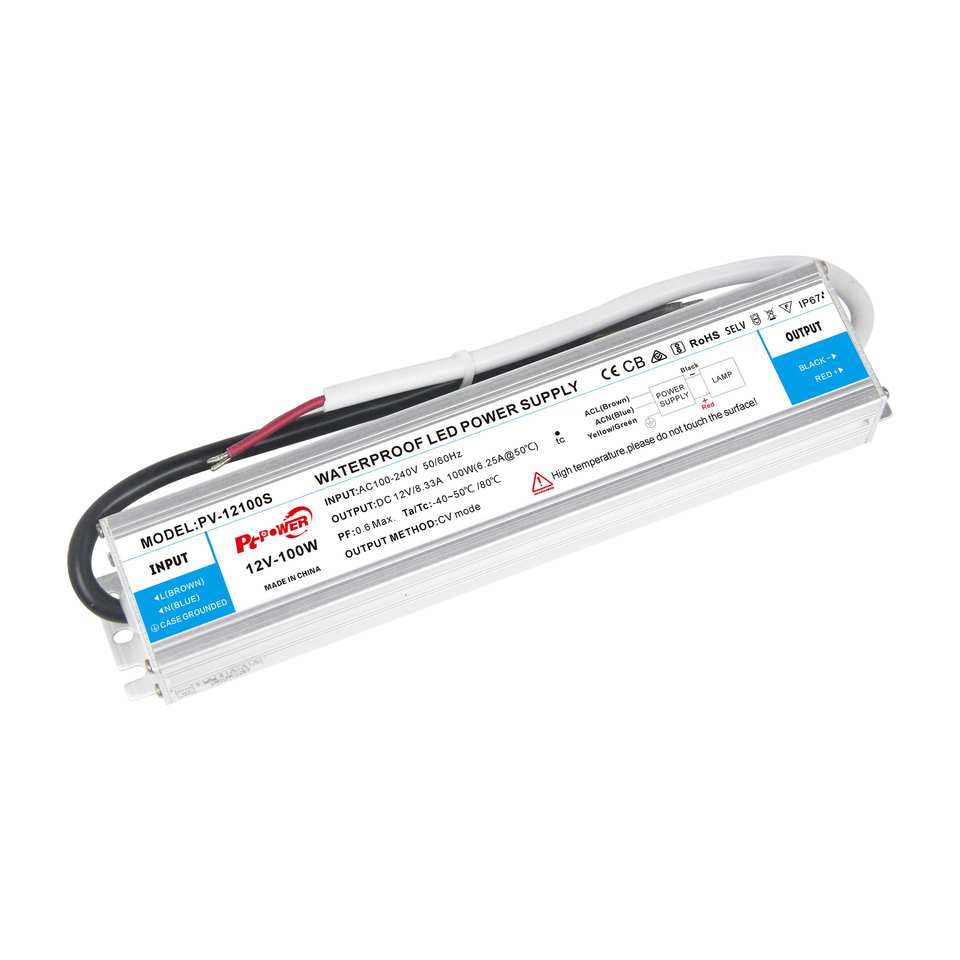

PV-12100S/PV-24100SModel Number
Pt POWERBrand Name
Led Lighting, Outdoor Lighting, Street LightApplication
AluminumCase Material
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥86%
Energy Transfer:AC-DC
Input Voltage:AC170-264V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:4.17A/8.33A
Output Frequency:50-60HZ
Output Power:100W
Output Type:Single
Product Weight（kg）:0.45
Topology:Ac-Dc Converter
Type:IP67 Waterproof
Type:Constant Voltage LED Driver
Waterproof Level:IP67
OEM/ODM:YES
Certification:CE/CB/FCC/RoHS
Size:230*42*30mm(L*W*H)
Protection:Short circuit, overload and class 1 protection
Working temperature:-40°C~+70°C
Withstand voltage:I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC standard:EN55032,EN61000-3-2,EN61000-3-3,EN55024
Output voltage:DC12V/24V
