Attributes
PrismaticBattery Type
15 KWhOutput Power
16Max Load Quantity(cells)
NBattery Management System
LiFepO4Battery Size
JKESSBrand Name
Model Number:280Ah
Place of Origin:Guangdong, China
Features:LCD Display
Dimension (L*W*H):715mm*420mm*267mm
Weight:32KG
Material:metal
Nominal Voltage:51.2V
Discharge Cut-off Voltage:41.6V
Charge Voltage:57.6V
Continuously Charge/Discharge Current:140A25±2℃(Recommended)
Max Standard charge/discharge Current:200A25±2℃
Working Temperature:0~50℃(Charge),-10~50℃(Discharge),-20~55℃(Storage)
SOC Range:5%-100%
Recommended SOC Range:15%-95%

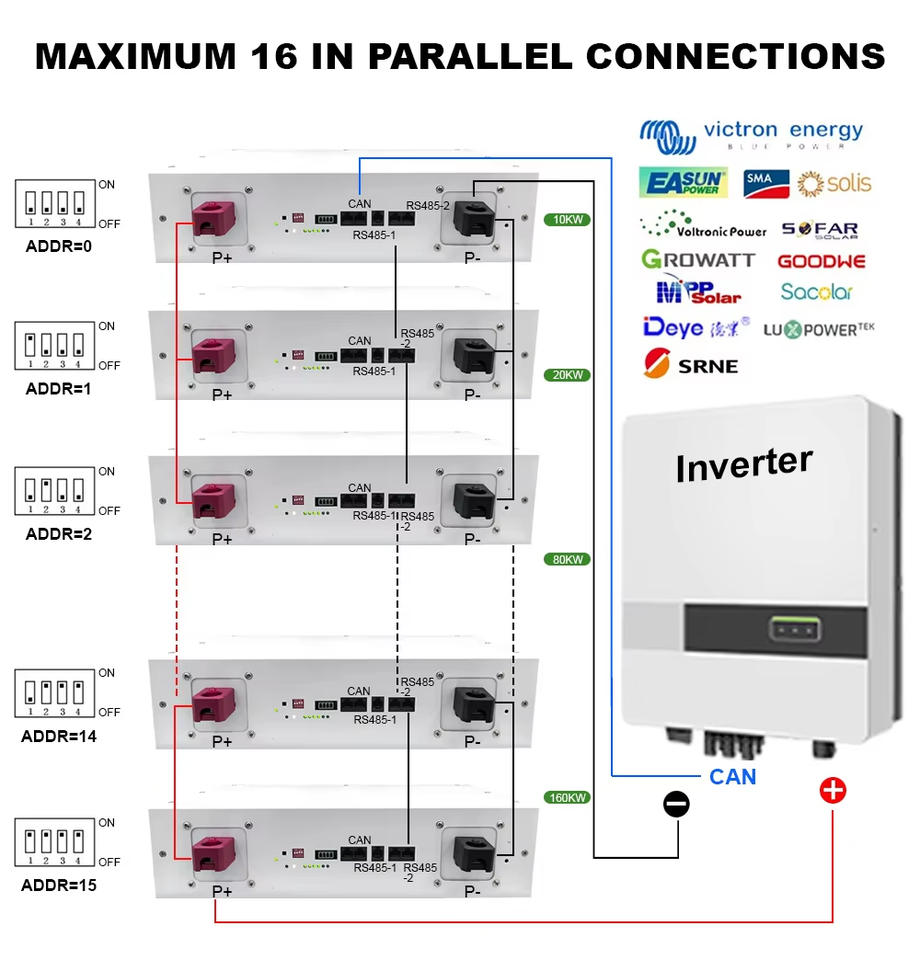

Communication Interface:Can or RS 485
Humidity:10%-85%
IP level:IP 20
