Attributes
Wire EDMmachine type
380 V, 220 V, 110 Vvoltage
CNCcnc or not
Providedmachinery test report
High Productivitykey selling points
Providedvideo outgoing-inspection
core components:PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
warranty:1 Year
power (kw):6
place of origin:Jiangsu, China
weight (kg):2500
brand name:Minnuo
dimension(l*w*h):2050*1720*2160

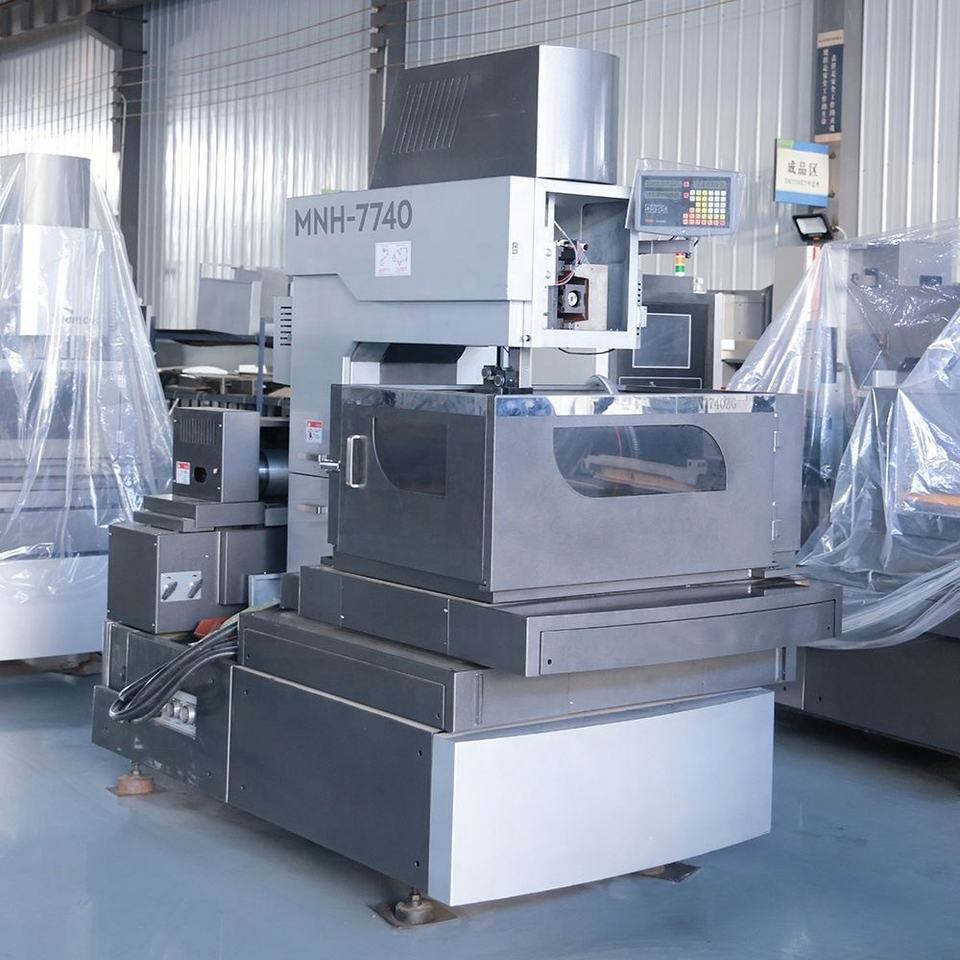

Product name:Edm Machine ≤0.008mm Level Precision
Precision:≤0.008mm
Certification:CE ISO
Max - machining speed:≥250mm/min
Power supply:Three-phase 3N-380V/50Hz
Average cutting efficiency:70mm²/min
Surface roughness (straight line):First cut Ra < 2.5μm, third cut Ra < 0.8μm, fourth cut Ra < 0.6μm
Wire feed rate:1 - 11.4/8 segments, frequency - adjustable
Control and connection mode:X,Y,U,Vstepping (gear)/hybrid,servo (direct-drive) drive
noise:≤70db
