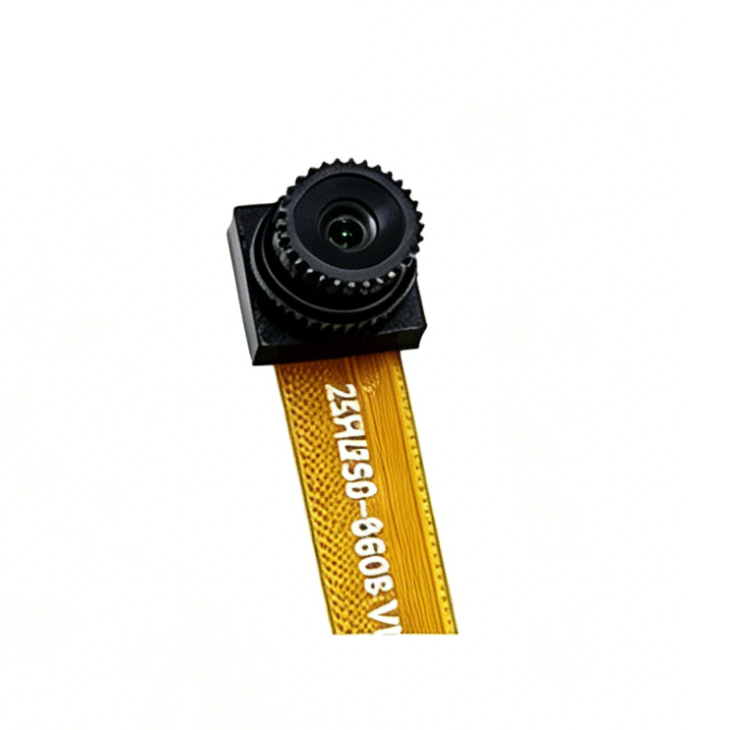

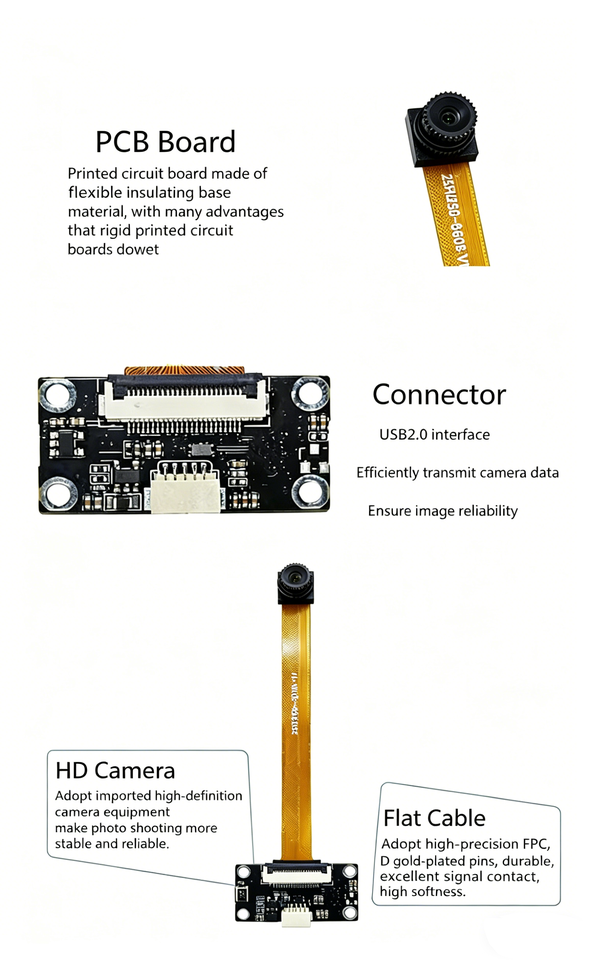

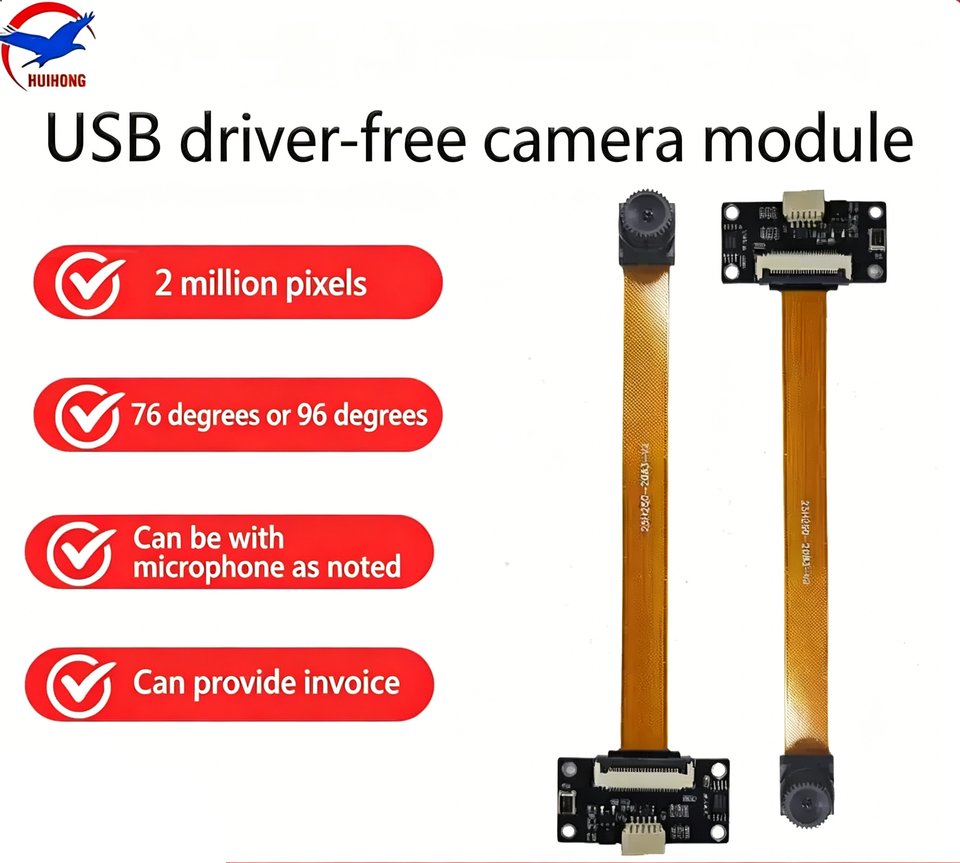

FPC Flexible 1080P Camera Module 1/3 CMOS Sensor USB2.0 with Optional Mic for Industrial Terminal
No reviews yet
Attributes
1920X1080Resolution
USBConnectivity
USBStorage
USBnetwork
MJPEG, YUV2Video Compression Format
25H250/76°Model Number
Brand Name:LLGCAM
Place of Origin:China
Mounting Type:USB
Description:2MP 1080P USB2.0 Camera Module
Application:INDOOR
Series:USB

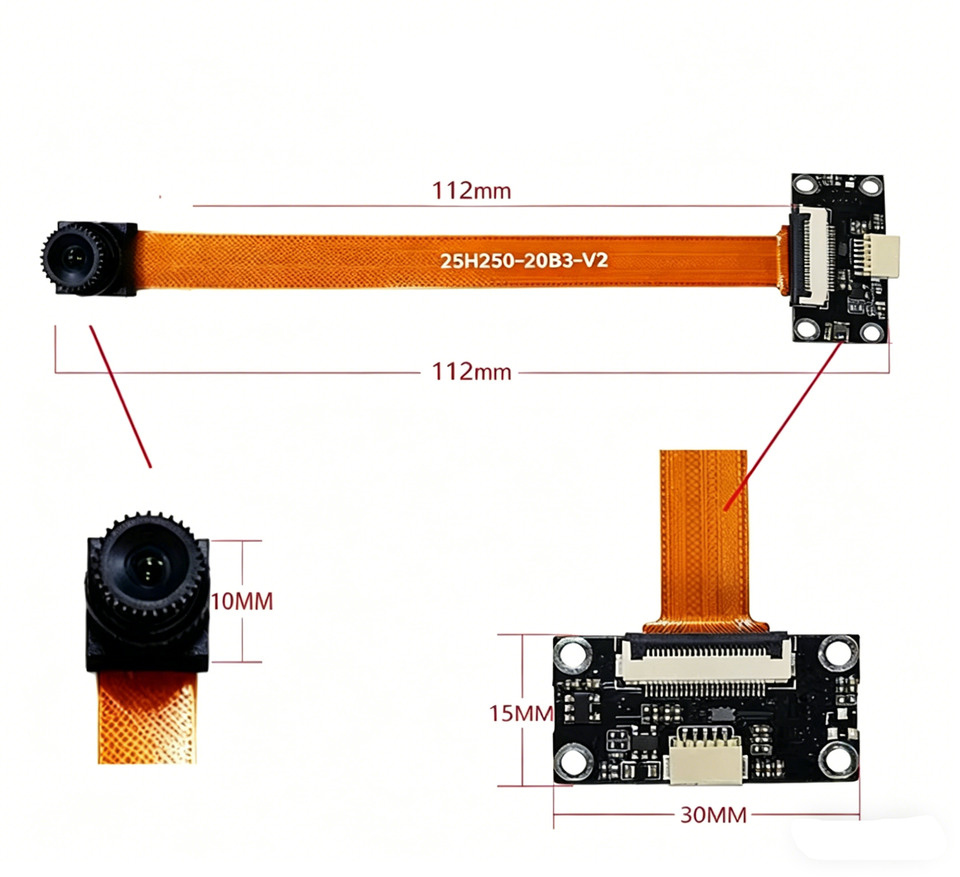

Size / Dimension:112x30x10mm
Sensor:NO
Technology:High Speed USB2.0
Sensor:1/3-Inch CMOS Sensor
FOV:DFOV:76°
Lens:FEL:4.43mm F/NO:2.1
Interface:5PIN 1.0MM Socket
Dynamic Range:NA
Scanning Speed:0.1S
Focus Type:FF/ MF
Shutter Type:Electronic Rolling shutter
Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS:Windows, Android, Linux, Wince, Mac OS
Cable Length:TBD
MIC:NC
Operating Voltage:USB DC +5V Supply
Operating Current:<100mA
Operating Temperature:-20℃ ~ 60℃
Storage Temperature:-20℃ ~ 85℃
Key attributes
Resolution
1920X1080
Connectivity
USB
Storage
USB
network
USB
Video Compression Format
MJPEG, YUV2
Model Number
25H250/76°
Brand Name
LLGCAM
Place of Origin
China
Mounting Type
USB
Description
2MP 1080P USB2.0 Camera Module
Application
INDOOR
Series
USB
Size / Dimension
112x30x10mm
Sensor
NO
Technology
High Speed USB2.0
Sensor
1/3-Inch CMOS Sensor
FOV
DFOV:76°
Lens
FEL:4.43mm F/NO:2.1
Interface
5PIN 1.0MM Socket
Dynamic Range
NA
Scanning Speed
0.1S
Focus Type
FF/ MF
Shutter Type
Electronic Rolling shutter
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
TBD
MIC
NC
Operating Voltage
USB DC +5V Supply
Operating Current
<100mA
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-20℃ ~ 85℃
Packaging and delivery
Selling Units
Single item
Single package size
16.5X11.5X6.5 cm
Single gross weight
0.500 kg
Lead time
Customization options
OEMODM(+ from /Min. order: 500 pieces)
Packaging Customization(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
FREE shipping capped at £20
Minimum order quantity: 1 piece
£945
*Taxes and import charges will be calculated at checkout
Variations
Select nowSpecification
2MP 1080P Fixed Focus 76° No Microphone
2MP 1080P Fixed Focus 76° with Microphone
2MP 1080P Fixed Focus 96° No Microphone
2MP 1080P Fixed Focus 96° with Microphone
