Attributes
15AContinuous Current(A)
IE 4Efficiency
3000Speed(RPM)
ChinaPlace of Origin
NOFrame
Glue typeMotor Mounting Type
Rated Power:943W

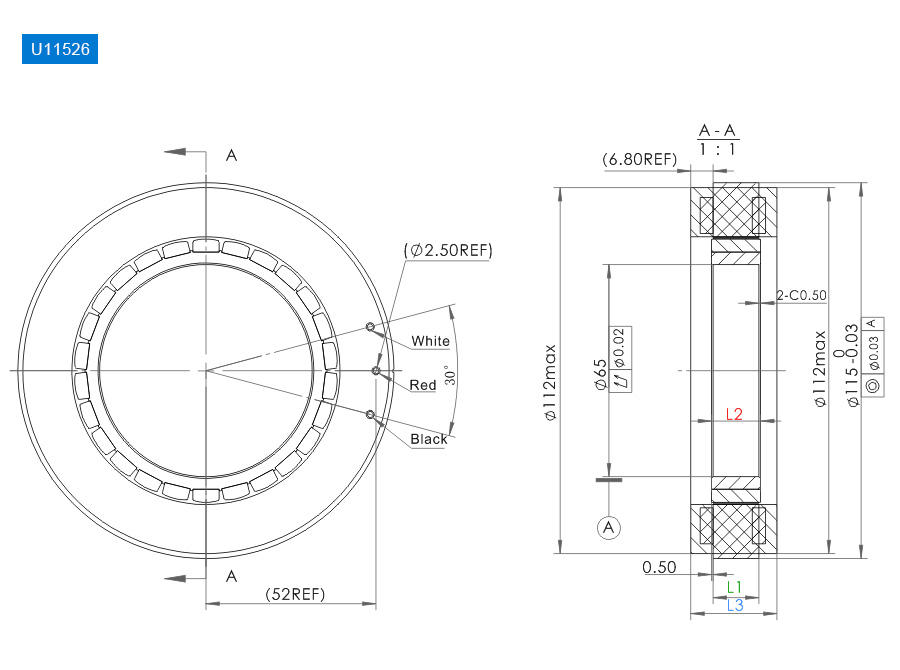

Model Number:U11526
Brand Name:other
Commutation:Brushless
Construction:Permanent Magnet
Protect Feature:Totally Enclosed
Speed Rpm:3000
Torque:3NM
Type:Brushless Motor
Usage:Home Appliance, Cosmetic Instrument, robot
Warranty:Other
OD(mm):115
Height(mm):26.6
Voltage:48V DC
Rated Output*1 (W):943
Rated torque*1 (Nm):3
Instant Max Torque*1 (Nm):7.5
Rated Current*1 (Arms):15
Instant Max Current*1 (Arms):45
Rated Speed*1 (Rpm):3000
Max Speed*1 (Rpm):5000
