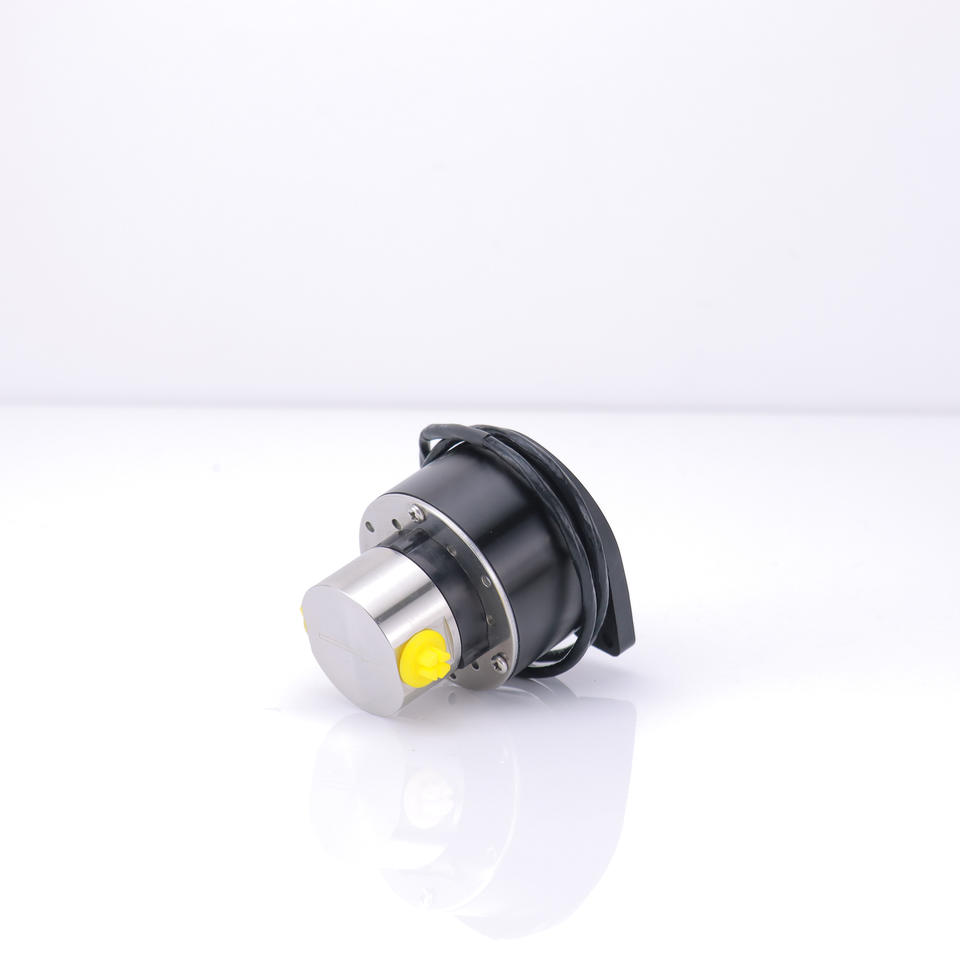

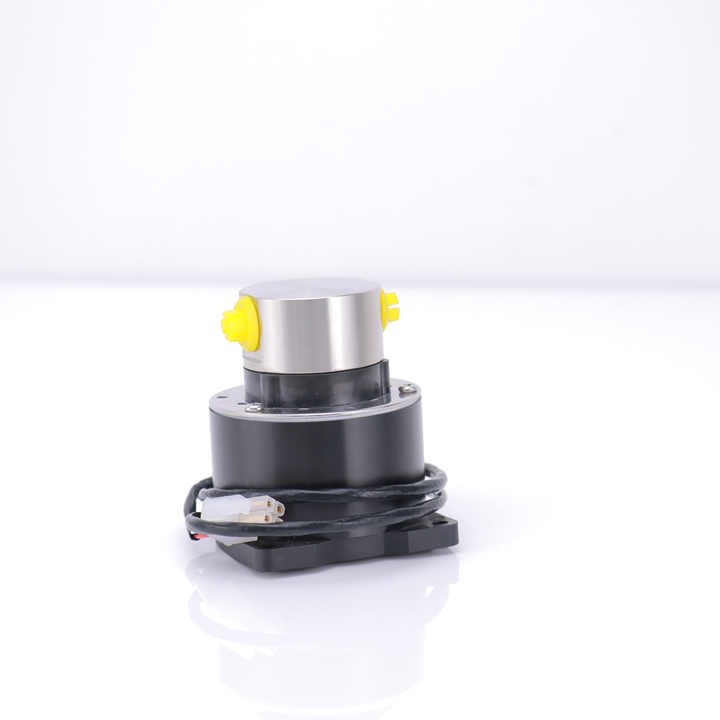

Factory Price 253 White Ink Double Head Pump (short Rotor) MG for Dimono Inkjet Printer Compatible
No reviews yet
Attributes
Otherapplication
ink pumpstructure
480mL/minMax Flow Rate
1.6MPaMax Pressure
Electricpower source
-40 to 105 degrees CelsiusApplicable temperature
pressure:1.6MPa
customized support:OEM, ODM, OBM
place of origin:China
warranty:1 Year
model number:GQC010ESLB02
brand name:DOCOD
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:0.1mL/rev
Max. Flow Rate:480mL/min(water as medium)
Max. Pressure:1.6MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4800rpm
Rated Voltage:24VDC
Rated Power:20W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Shaft Material:Tungsten steel (principal axis), Porcelain(subshaft)
Key attributes
application
Other
structure
ink pump
Max Flow Rate
480mL/min
Max Pressure
1.6MPa
power source
Electric
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
1.6MPa
model number
GQC010ESLB02
place of origin
China
brand name
DOCOD
Nominal Displacement
0.1mL/rev
Max. Flow Rate
480mL/min(water as medium)
Max. Pressure
1.6MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4800rpm
Rated Voltage
24VDC
Rated Power
20W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Shaft Material
Tungsten steel (principal axis), Porcelain(subshaft)
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
£16372
100 - 499 pieces
£13098
>= 500 pieces
£10915
Variations
Select nowFlow Rate: 500-4800rpm
500-4800rpm
maximum head: other
other
type: ink pump
ink pump
voltage
24VDC
