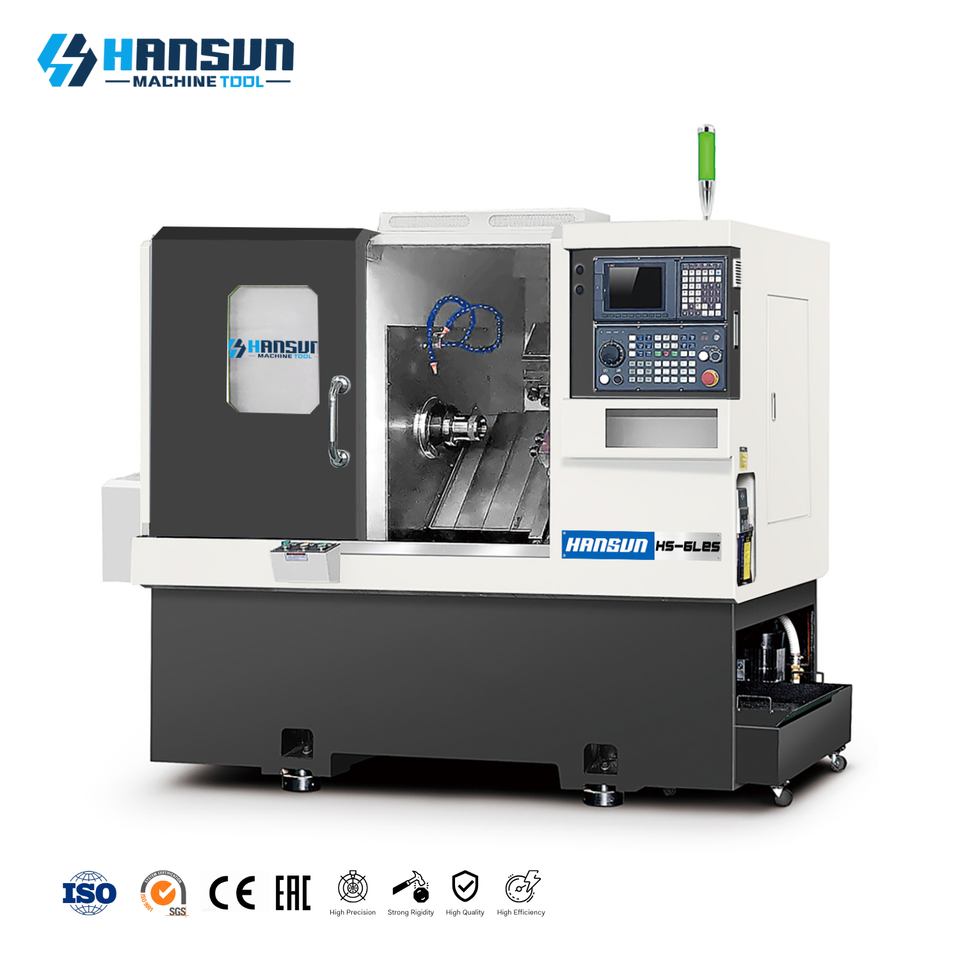

Fanuc System HS-6LES Economical Price Gang Type Horizontal Slant Bed CNC Lathe with Milling
No reviews yet
Attributes
380 V, 220V Electrical Equipmentvoltage
FANUCcnc control system
Light Dutymachining capacity
2number of axes
Singleno. of spindles
8tool post stations
max. length of workpiece (mm):250
key selling points:Multifunctional, Automatic, Competitive Price
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year
type:cnc lathe
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):50
travel (x axis)(mm):1040
travel (z axis)(mm):330
place of origin:Guangdong, China
dimension(l*w*h):2400x1500x2000
brand name:HANSUN
model number:6LES
weight:3100
range of spindle speed:0 - 4500
CNC or Not:cnc
max process diameter:380mm
spindle bore:56mm
chuck size:6 inch
x/z axis machining travel:1030/300 mm
center height:56mm
bar feeder ground to center:1120mm
square tool holder size:20x20 mm
max passable bar diameter:45mm
power head speed:0-3000 r/min
x/z axis fast moving speed:26/26 m/min

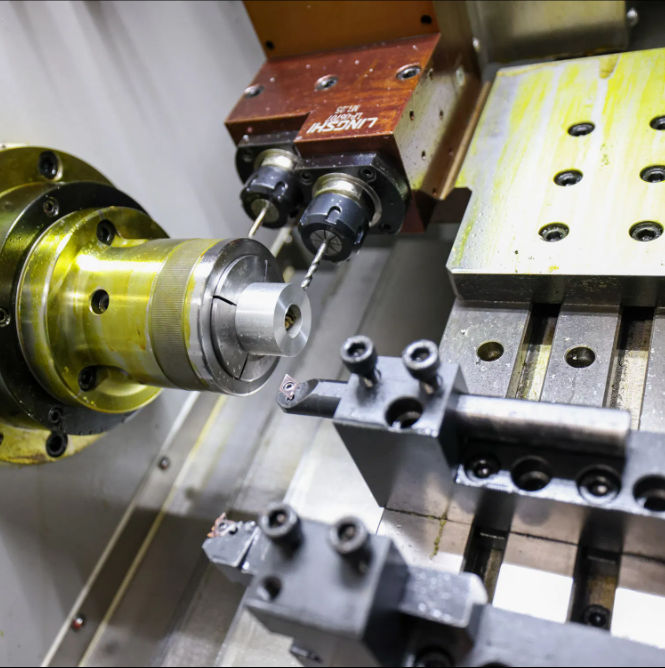

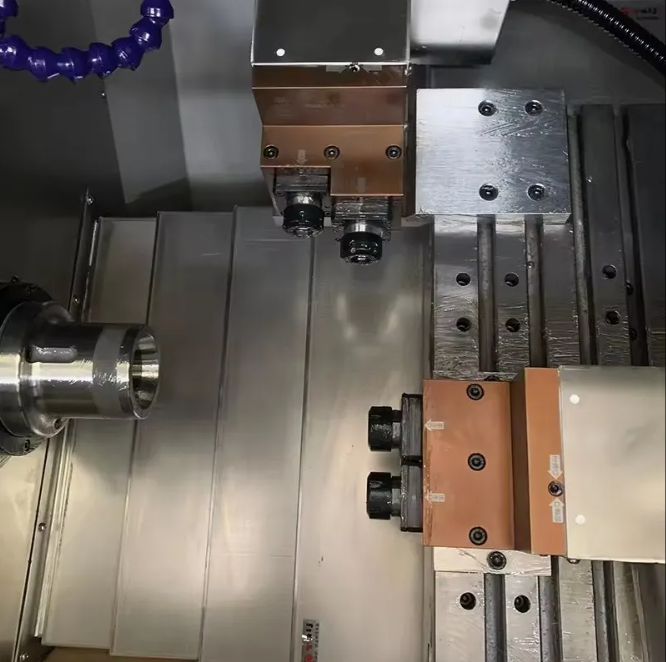

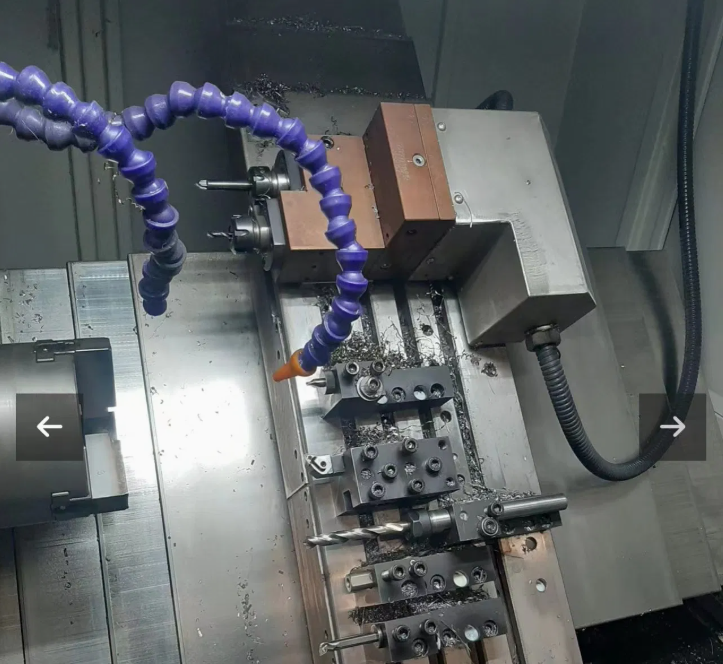

tool installation:ER25 live tools + gang type

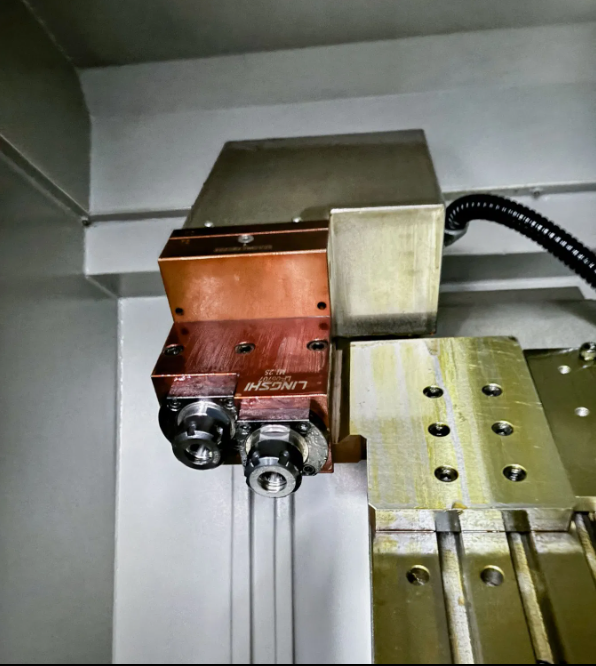

side milling power head structure:side milling: 1 long+ 1 short live tool
end milling power head structure:end milling: 2 short live tools
Key attributes
voltage
380 V, 220V Electrical Equipment
cnc control system
FANUC
machining capacity
Light Duty
number of axes
2
no. of spindles
Single
tool post stations
8
max. length of workpiece (mm)
250
key selling points
Multifunctional, Automatic, Competitive Price
repeatability (x/y/z) (mm)
±0.005
positioning accuracy (mm)
±0.005
warranty
1 Year
type
cnc lathe
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
50
travel (x axis)(mm)
1040
travel (z axis)(mm)
330
place of origin
Guangdong, China
dimension(l*w*h)
2400x1500x2000
brand name
HANSUN
model number
6LES
weight
3100
range of spindle speed
0 - 4500
CNC or Not
cnc
max process diameter
380mm
spindle bore
56mm
chuck size
6 inch
x/z axis machining travel
1030/300 mm
center height
56mm
bar feeder ground to center
1120mm
square tool holder size
20x20 mm
max passable bar diameter
45mm
power head speed
0-3000 r/min
x/z axis fast moving speed
26/26 m/min
tool installation
ER25 live tools + gang type
side milling power head structure
side milling: 1 long+ 1 short live tool
end milling power head structure
end milling: 2 short live tools
Packaging and delivery
Selling Units
Single item
Single package size
2400X1500X2000 cm
Single gross weight
3000.000 kg
Lead time
Customization options
cnc control system (Min. order: 1 set)
View details
Product descriptions from the supplier
Customizable
1 - 2 sets
£31,42892
>= 3 sets
£30,44035
Sample price: £373.05
Variations
Select nowmax. swing diameter (mm): 380
380
spindle motor power(kw)
7.5kw
Customization options
cnc control system (Min. order: 1 set)
