Dai Viet DV 001 Fast 3240 Epoxy Board Fireproof High Temperature Insulation RoHS Generators 100-130C Resistance 40kv Rated
No reviews yet
Attributes
40kvRated Voltage
Insulating boardType
Epoxy resin, FiberglassMaterial
High TemperatureApplication
Other Mounting TypeMounting Type
340MPaTensile Strength
Place of Origin:Guangdong, China
Brand Name:Dai Viet
Model Number:DV 001

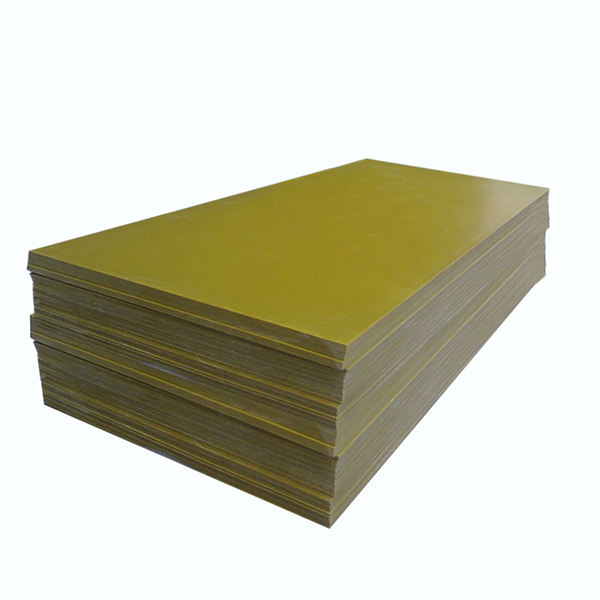

Product name:3240 Epoxy Board
Material:Epoxy Resin+fiber Glass Cloth
Color:Yellow
Size:1020x1220mm / 1220x2440mm
Thickness:0.3mm-100mm
Type:Insulating board
Application:Electrical Equipment Insulation, Electronic Circuit Board Substrate
Density:1.9-2.2g/cm³
Tensile strength:340 MPa
Temperature resistance:100 - 130°C
Key attributes
Rated Voltage
40kv
Type
Insulating board
Material
Epoxy resin, Fiberglass
Application
High Temperature
Mounting Type
Other Mounting Type
Tensile Strength
340MPa(49312.83psi)
Place of Origin
Guangdong, China
Brand Name
Dai Viet
Model Number
DV 001
Product name
3240 Epoxy Board
Material
Epoxy Resin+fiber Glass Cloth
Color
Yellow
Size
1020x1220mm / 1220x2440mm
Thickness
0.3mm-100mm
Type
Insulating board
Application
Electrical Equipment Insulation, Electronic Circuit Board Substrate
Density
1.9-2.2g/cm³
Tensile strength
340 MPa
Temperature resistance
100 - 130°C
Packaging and delivery
Selling Units
Multiple of 1
Gross weight per batch
3.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 500 kilometers)
Customized packaging(+ from /Min. order: 500 kilometers)
Graphic customization(+ from /Min. order: 500 kilometers)
View details
Product descriptions from the supplier
1 - 499 kilometers
£393
500 - 999 kilometers
£285
>= 1,000 kilometers
£223
