Attributes
+/-1%, +/-1.5%accuracy
Liquid, Air, GasMedium
Variable Area Air & Gas Flowmeterstype
Taiwan, Chinaplace of origin
FlangeConnectivity
Liquid flow rate upper limit: 10m/s; Gas & steam flow rate upper flow rate: 80m/sFlow Rate
material:Metal
Measurement Range:35~80m/s

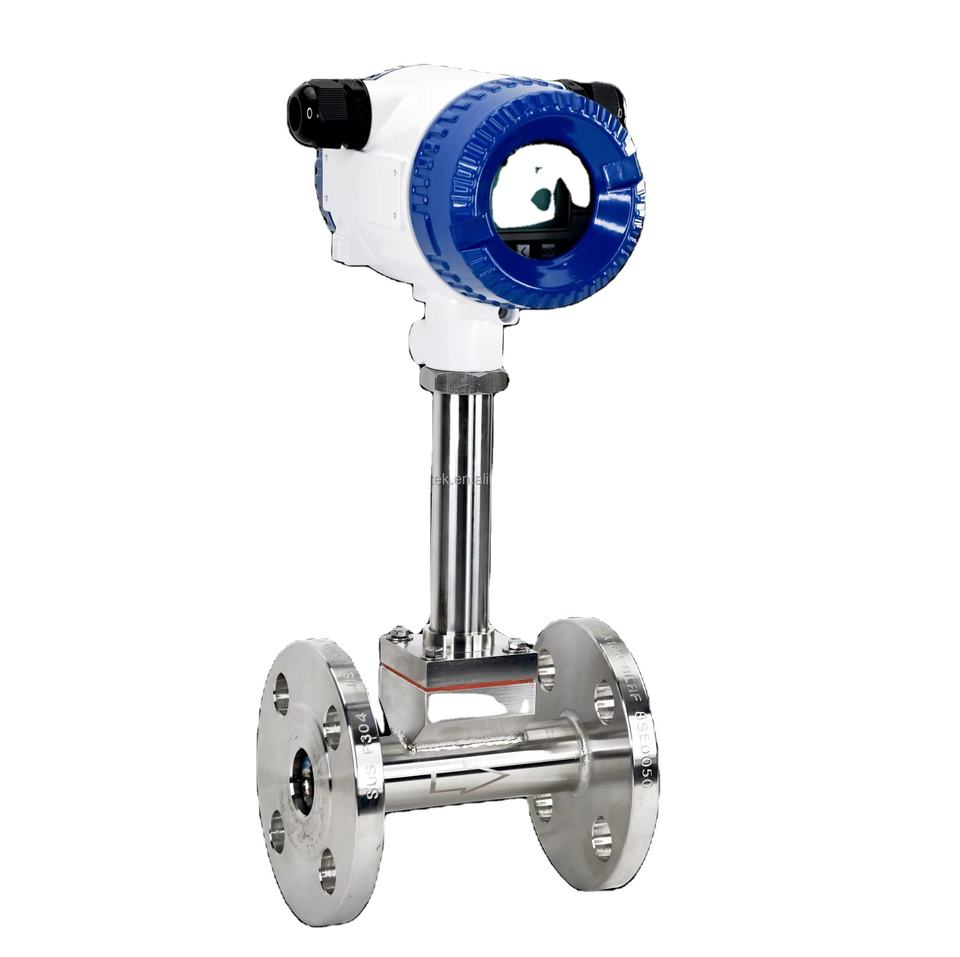

model number:EPV
brand name:Fine-tek
Applicable pipe diameter:DN25,DN40,DN50,DN65,DN80,DN100
Flow velocity range:Liquid : 10m/s; Gas & steam : 80m/s
Accuracy:Liquid: ±1%;Gas & steam: ±1% (flow rate: 35m/s)
Fluid temperature range:-30~250℃
Ambient temperature range:-30~80℃
Working condition pressure range:-0.1MPa (-1kg/cm2)~Flange rating
Structure:Integrated flange type
Pipe material:SUS304
Junction box material:Aluminum
Protection level:IP67
Power input:10.5~36Vdc
Temperature compensation:Built-in probe PT100
Pressure gauge, provide voltage:12Vdc
Pressure gauge, provide current:50mA
Pressure detection mode:0~5V / 0.5~4.5V / 1~5V
Communication interface:RS-485(Modbus)
Analog output:4~20mA / 0-20mA (Max. Load 700Ω)
Pulse mode:Pulse NO / Pulse NC / Frequency / Vortex Pulse NPN crystal
Pulse specifications:NPN crystal output 32Vdc/200mA
