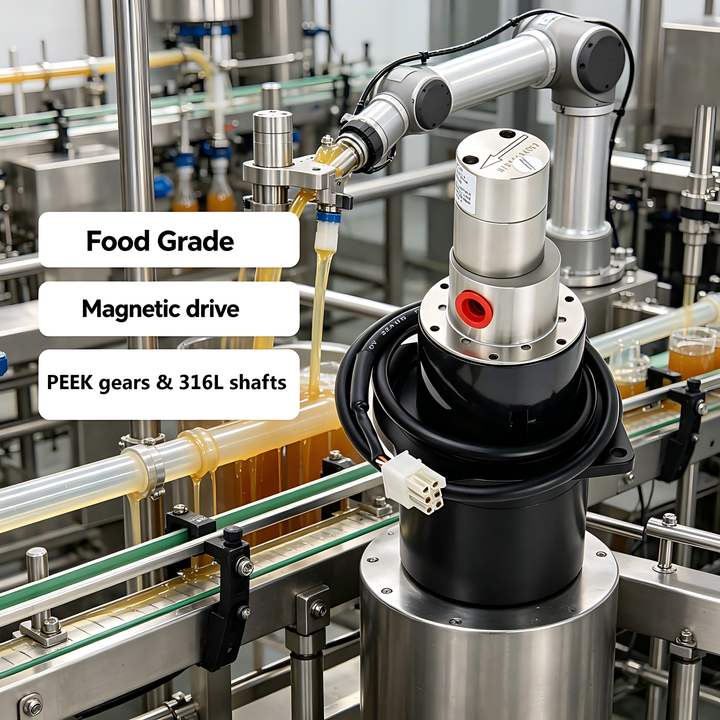

Sanitary Food Grade Magnetic Micro Gear Pump High Precision Pulse-Free Dosing Pump for Syrup Dispensing Liquid Filling Machine

£243.43
1-99 pieces
£194.74
100-499 pieces
£162.29
≥500 pieces
Flow Rate
maximum head
type
Customization options
motor (Min. order: 1 piece)

Key attributes

application

Drinking Water Treatment

pressure

Low Pressure

customized support

OEM, ODM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

At a glance

  • Stainless Steel Construction: Ensures durability and resistance to corrosion, making it suitable for sanitary and sensitive liquid applications.

  • Zero Leakage Design: Eliminates the risk of media contamination, ensuring absolute liquid purity for food, pharmaceutical, and cosmetic industries.

  • PEEK Gear Material: Provides long service life and excellent wear resistance, ensuring reliable continuous operation in demanding environments.

  • Pulsation-Free Flow: Delivers a stable and continuous flow rate, making it ideal for high-precision dosing and filling applications.

Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Payment & financing

Buy now, pay later

Key attributes

application
Drinking Water Treatment
pressure
Low Pressure
customized support
OEM, ODM
place of origin
Guangdong, China
power source
Electric
warranty
1 Year
model number
GQA175FSLD01
brand name
DOCOD
cable length
OEM
Chemical Compatibility
Alcohol
horsepower
0.01
Max Flow Rate
7.3L/min
Max Pressure
0.05-1.2MPa (preset value0.7MPa)
motor
DC Motor, DC/BLDC
Outlet Type
Universal Style
Sealing Material
Ceramic
structure
Gear Pump
Material
Stainless Steel
Nominal Displacement
1.75ml/rev
Max. Flow Rate
7.3L/min(water as medium)
Max. Pressure
0.35MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4200rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
