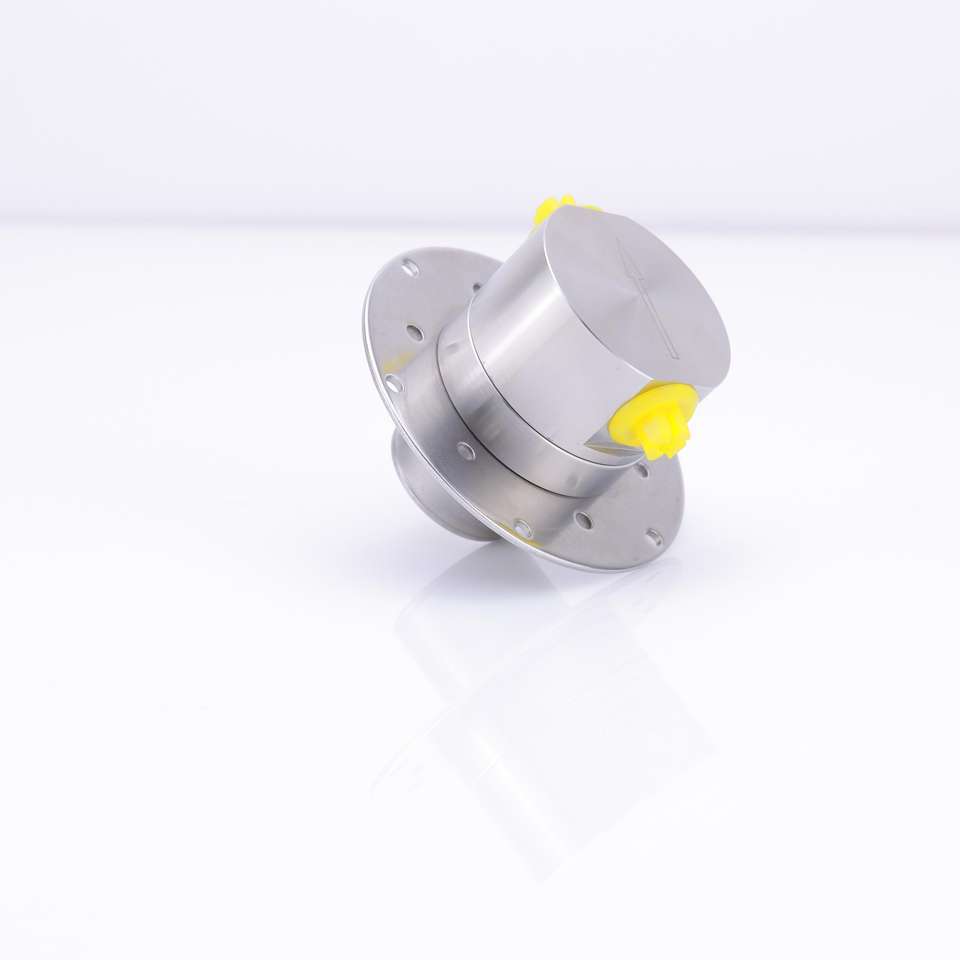

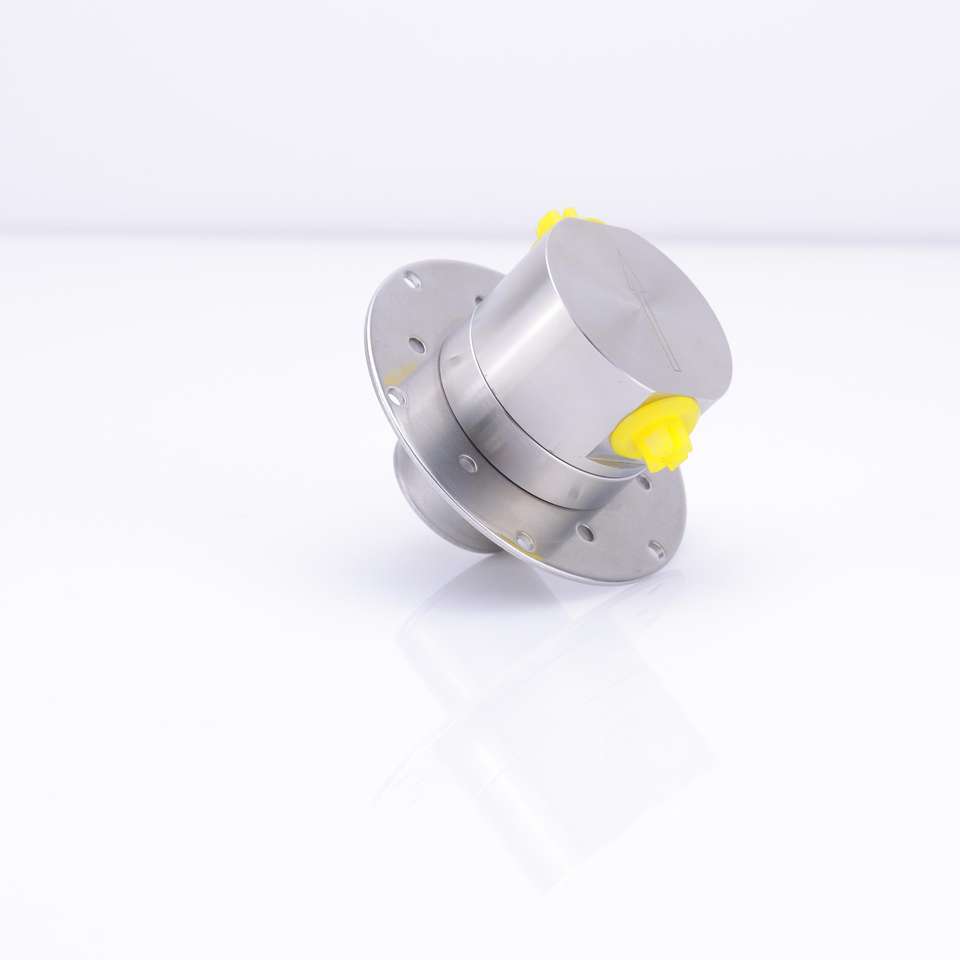

Food Grade High Pressure 20 Bar Low Flow 70w Espresso Coffee Machine Micro Pump Milk Magnetic Gear Pump

No reviews yet
DOCOD PRECISION GROUP LIMITED
1 yr
HK

Attributes

Otherapplication
3MPapressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Chinaplace of origin
Electricpower source
structure:ink pump

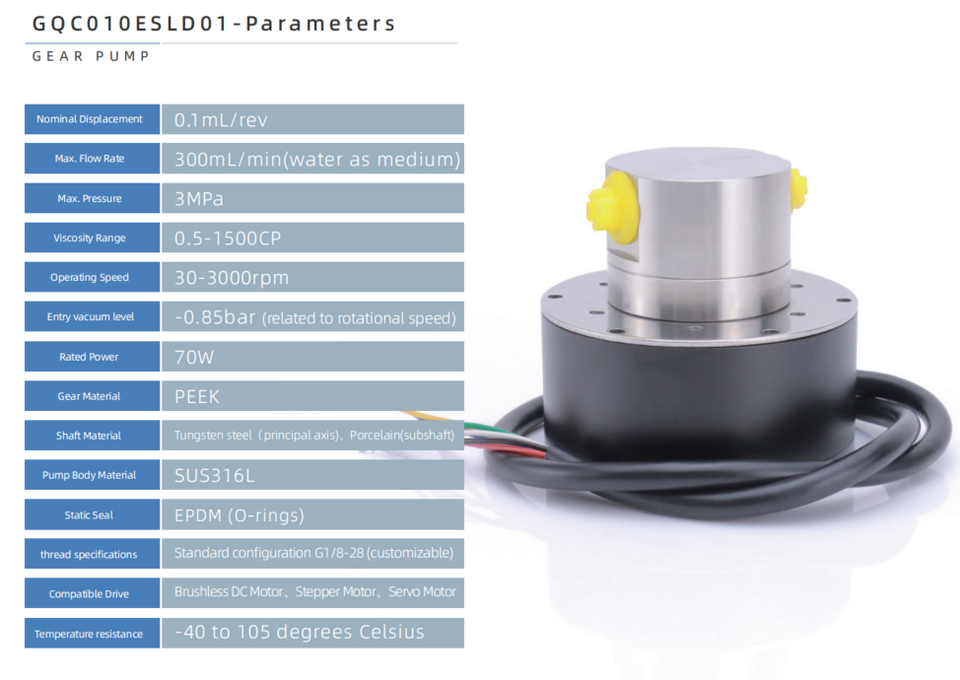

model number:GQC010ESLD01
Applicable temperature:-40 to 105 degrees Celsius
Max Flow Rate:300mL/min
Max Pressure:3MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:0.1mL/rev
Max. Flow Rate:480mL/min(water as medium)
Max. Pressure:1.6MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4800rpm
Rated Voltage:24VDC
Rated Power:20W
Gear Material:PEEK
Pump Body Material:SUS316L,PPS
Static Seal:EPDM (O-rings)

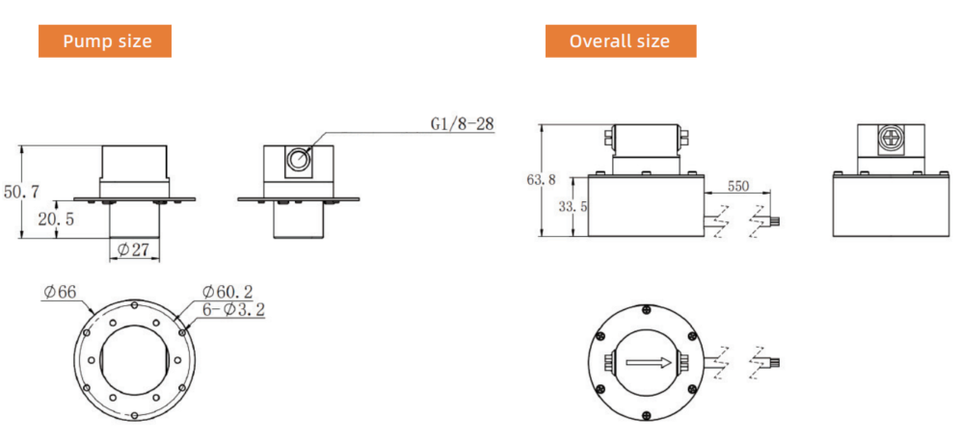

thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Shaft Material:Tungsten steel (principal axis), Porcelain(subshaft)

Key attributes

application
Other
pressure
3MPa
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
China
power source
Electric
structure
ink pump
model number
GQC010ESLD01
Applicable temperature
-40 to 105 degrees Celsius
Max Flow Rate
300mL/min
Max Pressure
3MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Nominal Displacement
0.1mL/rev
Max. Flow Rate
480mL/min(water as medium)
Max. Pressure
1.6MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4800rpm
Rated Voltage
24VDC
Rated Power
20W
Gear Material
PEEK
Pump Body Material
SUS316L,PPS
Static Seal
EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Shaft Material
Tungsten steel (principal axis), Porcelain(subshaft)

Packaging and delivery

Selling Units
Single item
Show more

Lead time

Product descriptions from the supplier

1 - 99 pieces
$26538
100 - 499 pieces
$21231
>= 500 pieces
$17692

Variations

Select now

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
