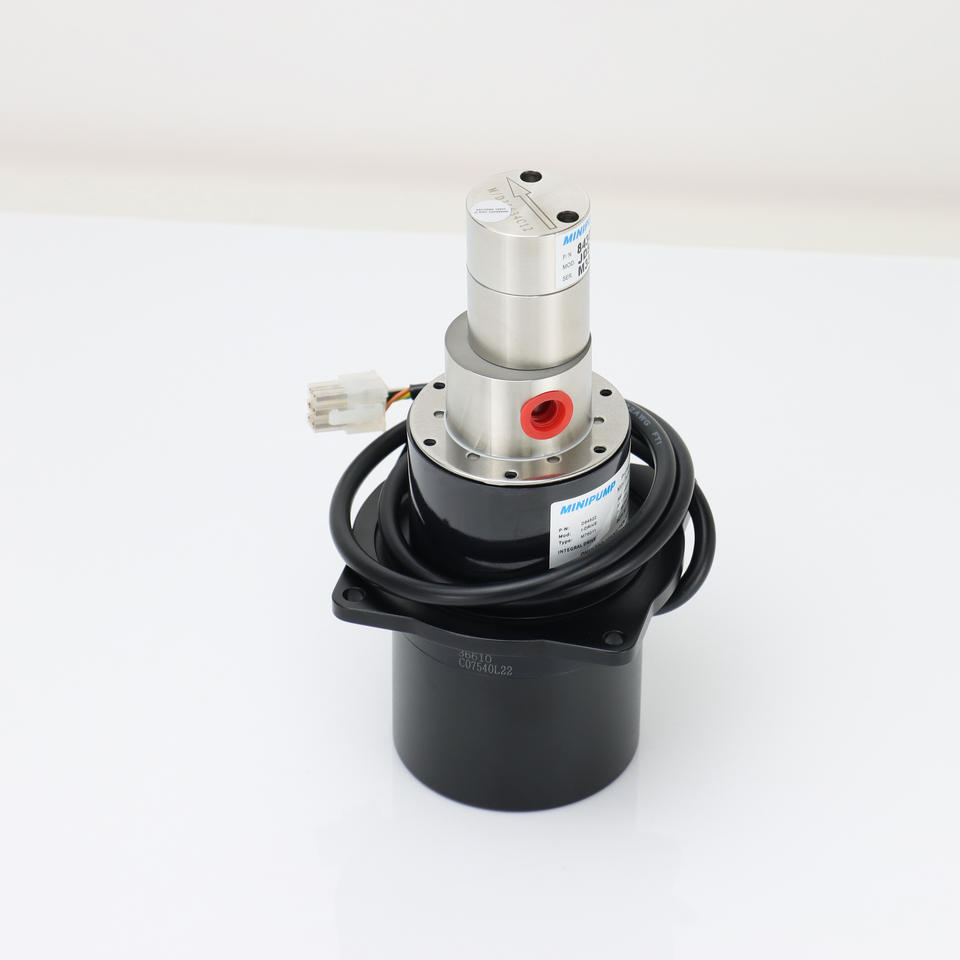

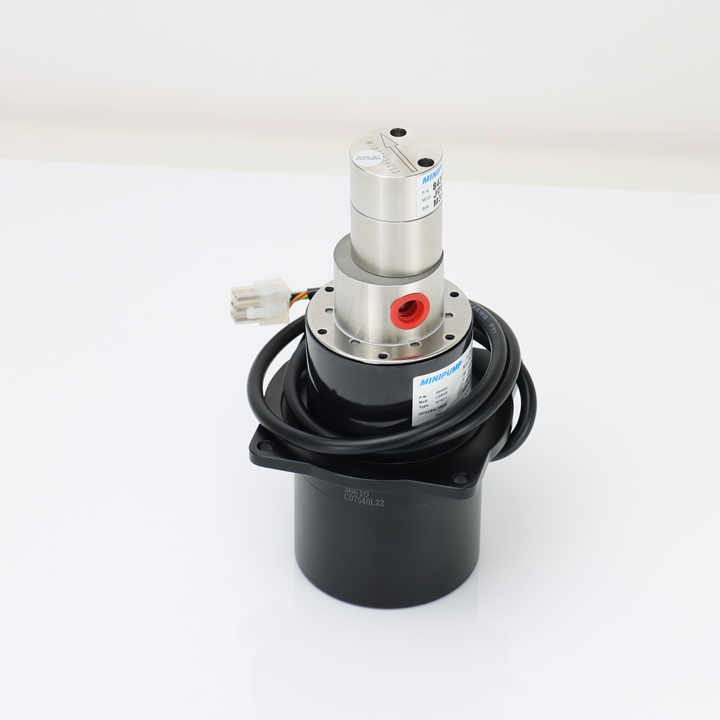

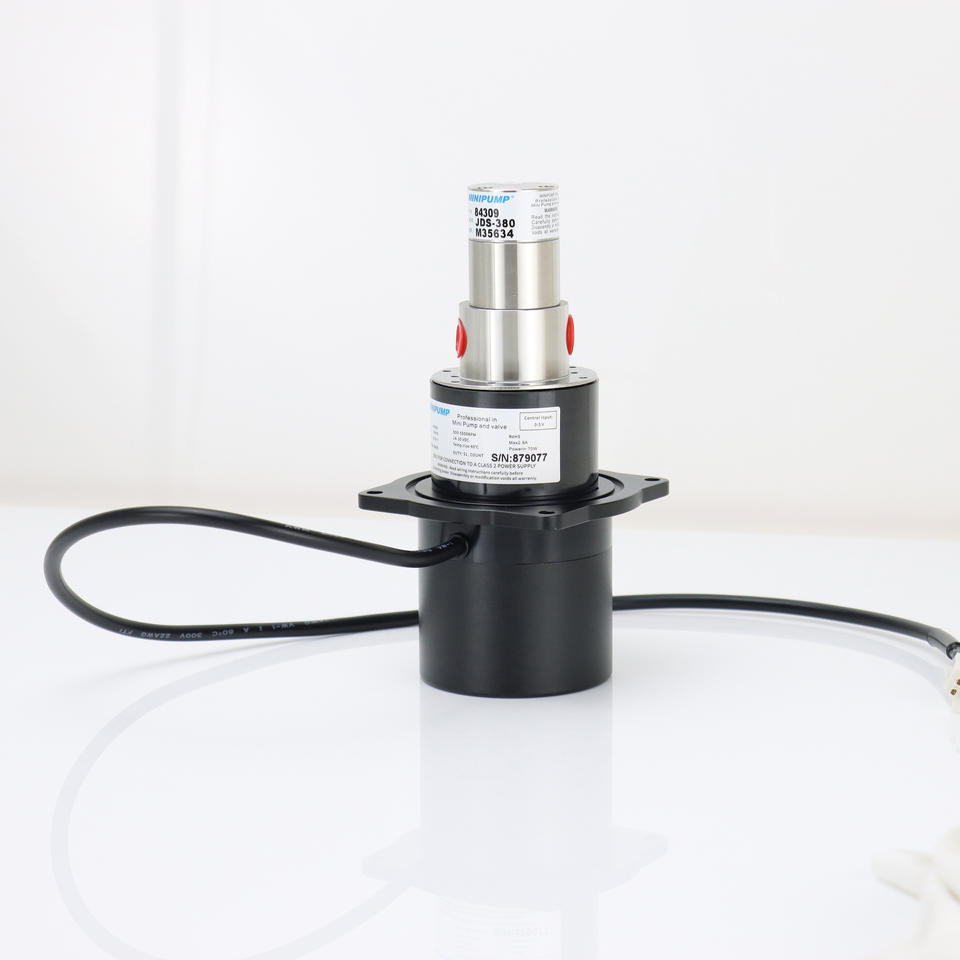

Food Grade Low Pressure Liquid Filling Machine Dosing Pump 70W BLDC Micro Pump Stainless Steel Magnetic PEEK Gear Pump

Food Grade Low Pressure Liquid Filling Machine Dosing Pump 70W BLDC Micro Pump Stainless Steel Magnetic PEEK Gear Pump

Food Grade Low Pressure Liquid Filling Machine Dosing Pump 70W BLDC Micro Pump Stainless Steel Magnetic PEEK Gear Pump

Food Grade Low Pressure Liquid Filling Machine Dosing Pump 70W BLDC Micro Pump Stainless Steel Magnetic PEEK Gear Pump

Food Grade Low Pressure Liquid Filling Machine Dosing Pump 70W BLDC Micro Pump Stainless Steel Magnetic PEEK Gear Pump

Food Grade Low Pressure Liquid Filling Machine Dosing Pump 70W BLDC Micro Pump Stainless Steel Magnetic PEEK Gear Pump

DOCOD PRECISION GROUP LIMITED

HK1 yr

≤4h

Response Time

≥100%

On-time dispatch rate

25%

Reorder rate

Main markets: Iraq, Turkey/Türkiye, Bahrain, Pakistan, United States

Supplier vettingGenerate report

Food Grade Low Pressure Liquid Filling Machine Dosing Pump 70W BLDC Micro Pump Stainless Steel Magnetic PEEK Gear Pump

No reviews yet1 sold

£23921

1-99 pieces

£19137

100-499 pieces

£15948

≥500 pieces

Flow Rate

Maximum Head

Type

Customization options

motor (Min. order: 1 piece)

Key attributes

Application

Chemical Industry

Pressure

0.35MPa

Customized Support

OEM, ODM, OBM

Place of Origin

Guangdong, China

Power Source

Electric

Warranty

1 Year

At a glance

SUS316L Pump Body: Ensures high corrosion resistance and durability, making it suitable for a wide range of chemical applications.
0.5-1500CP Viscosity Range: Handles a broad range of fluid viscosities, providing versatility in various dosing and filling operations.
Magnetic Drive: Provides zero leakage and pulseless fluid transfer, ensuring precise and reliable dosing.

Shipping

Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

Buy now, pay later

Key attributes

Application

Chemical Industry

Pressure

0.35MPa

Customized Support

OEM, ODM, OBM

Place of Origin

Guangdong, China

Power Source

Electric

Warranty

1 Year

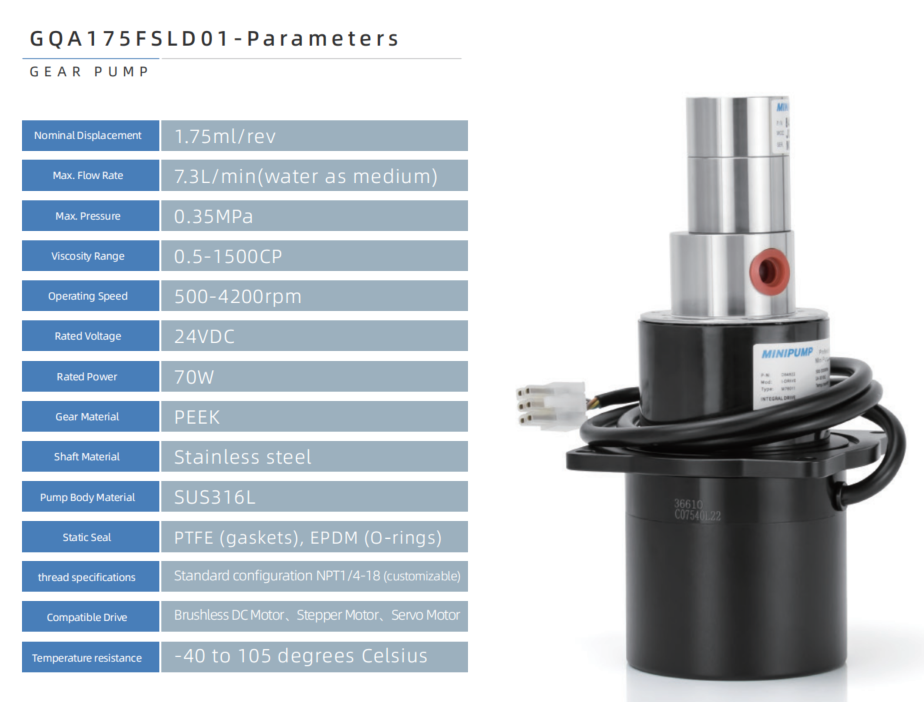

Model Number

GQA175FSLD01

Brand Name

DOCOD

Applicable temperature

-40 to 105 degrees Celsius

Chemical Compatibility

Alcohol, Diesel, Gasoline, Kerosene, oils, Water

Inlet Height

Customized

Max Flow Rate

7.3L/min

Max Pressure

0.05-1.2MPa (preset value0.7MPa)

motor

Servo Motor, Brushless DC Motor, Stepper Motor

Sealing Material

Ceramic, PTFE, Magnetic, Stainless Steel

Structure

Gear Pump

Surface Treatment

Polishing

Material

Stainless Steel

Nominal Displacement

1.75ml/rev

Max. Flow Rate

7.3L/min(water as medium)

Max. Pressure

0.35MPa

Viscosity Range

0.5-1500CP

Operating Speeds

500-4200rpm

Rated Voltage

24VDC

Rated Power

70W

Gear Material

PEEK

Pump Body Material

SUS316L

Static Seal

PTFE (gaskets), EPDM (O-rings)

thread specifications

Standard configuration G1/8-28(customizable)

Compatible Drive

Brushless DC Motor, Stepper Motor, Servo Motor

Temperature resistance

-40 to 105 degrees Celsius

Pump Type

Magnetic Drive Gear Pump

Pump Structure

External Gear Pump

Drive Type

Magnetic Drive

Application

Food & Beverage Filling

Industry

Food Processing / Pharmaceutical / Cosmetic

Control Method

Variable Speed Control

Flow Control

Precision Metering
