UL 60W Triac/Phase/0-10V/1-10V/10V PWM/Potentiometer Dimmable LED Driver 100-277V AC-DC 12V 24V 48V IP20 Indoor LED Power Supply
No reviews yet150 sold
Attributes
Led Lighting, Indoor Lighting, Commercial LightingApplication
AC100-277VInput Voltage
60WOutput Power
0-5.0A/0-2.5A/0-1.25AOutput Current
IP20 Non-waterproofType
AC-DCEnergy Transfer
Warranty(Year):5-Year
Place of Origin:Guangdong, China
Model Number:PV-12060T-P2W/PV-24060T-P2W/PV-48060T-P2W
Brand Name:Pt Power
Case Material:Plastic
Dimming:Triac
Dimming Mode:Triac/Phase/0-10V/1-10V/10V PWM/Potentiometer
Efficiency:83%-85%
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Frequency:50-60HZ
Output Type:Single
Product Weight（kg）:0.35
Topology:Ac-Dc Converter
OEM/ODM:Yes
Power Factor:PF≥0.95
IP Rate:IP 20 Indoor Non-waterproof
Feature:Flicker-free dimming 0-100%

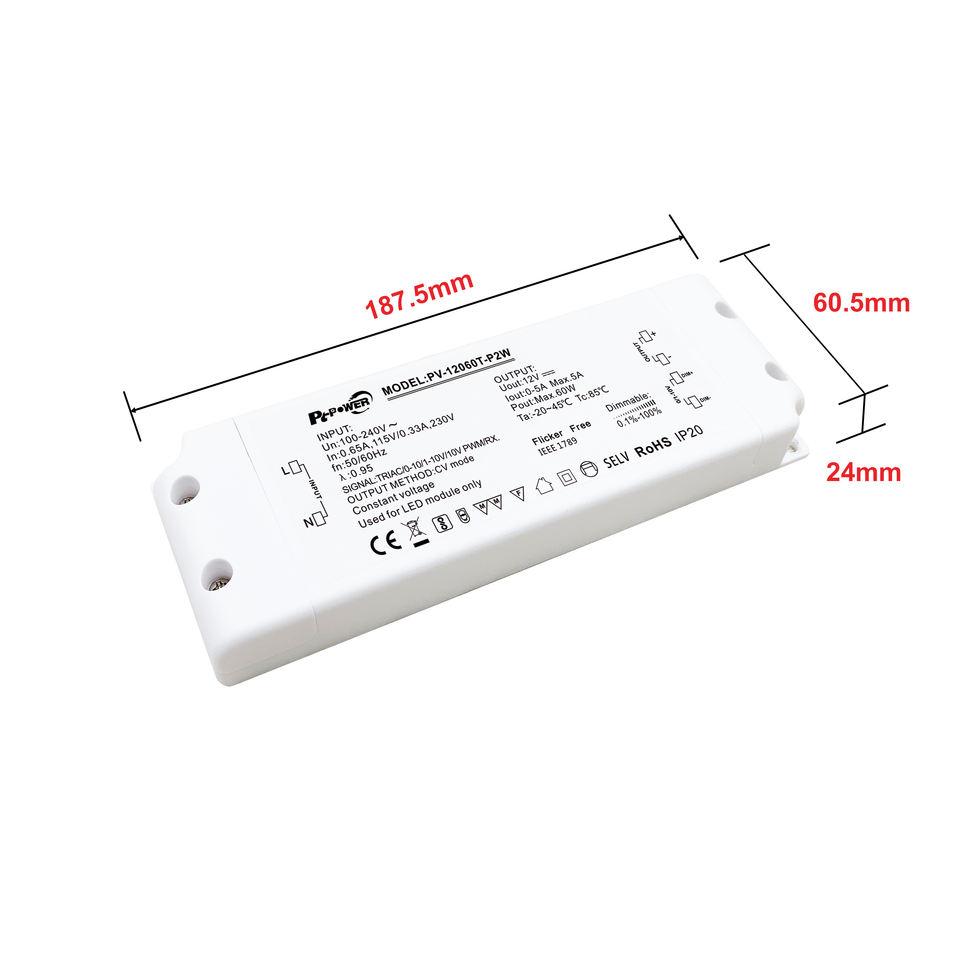

Size:187.5*60.5*24mm
Certification:UL/CUL/FCC/Class P/TYPE HL/Class 2/RoHS
Protection:Short circuit, over-load and over temperature protection
Safety standard:UL8750(Class 2,Class P, TYPE HL),CAN/CSA-C22.2 NO.250.13
EMC emissiobn:FCC Part 15
Output Voltage:DC12V/24V/48V
Key attributes
Application
Led Lighting, Indoor Lighting, Commercial Lighting
Input Voltage
AC100-277V
Output Power
60W
Output Current
0-5.0A/0-2.5A/0-1.25A
Type
IP20 Non-waterproof
Energy Transfer
AC-DC
Output Type
Single
Dimming Mode
Triac/Phase/0-10V/1-10V/10V PWM/Potentiometer
Dimming
Triac
Efficiency
83%-85%
Topology
Ac-Dc Converter
Case Material
Plastic
Warranty(Year)
5-Year
Lighting solutions service
Lighting And Circuitry Design, Project Installation, Other
Place of Origin
Guangdong, China
Model Number
PV-12060T-P2W/PV-24060T-P2W/PV-48060T-P2W
Brand Name
Pt Power
Output Frequency
50-60HZ
Product Weight（kg）
0.35
OEM/ODM
Yes
Power Factor
PF≥0.95
IP Rate
IP 20 Indoor Non-waterproof
Feature
Flicker-free dimming 0-100%
Size
187.5*60.5*24mm
Type
Constant Voltage Triac LED Driver
Certification
UL/CUL/FCC/Class P/TYPE HL/Class 2/RoHS
Protection
Short circuit, over-load and over temperature protection
Safety standard
UL8750(Class 2,Class P, TYPE HL),CAN/CSA-C22.2 NO.250.13
EMC emissiobn
FCC Part 15
Output Voltage
DC12V/24V/48V
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 500 pieces)
Customized packaging(+ from /Min. order: 500 pieces)
Graphic customization(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
2 - 99 pieces
£1053
100 - 499 pieces
£1015
≥ 500 pieces
£940
Variations
Select nowInput Voltage(V): 100-277VAC
100-277VAC
Lamp Power(W): 60
60
Output Voltage
48 V
24 V
12V
Customization options
Customized logo (Min. order: 500 pieces)
Customized packaging (Min. order: 500 pieces)
Graphic customization (Min. order: 500 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
