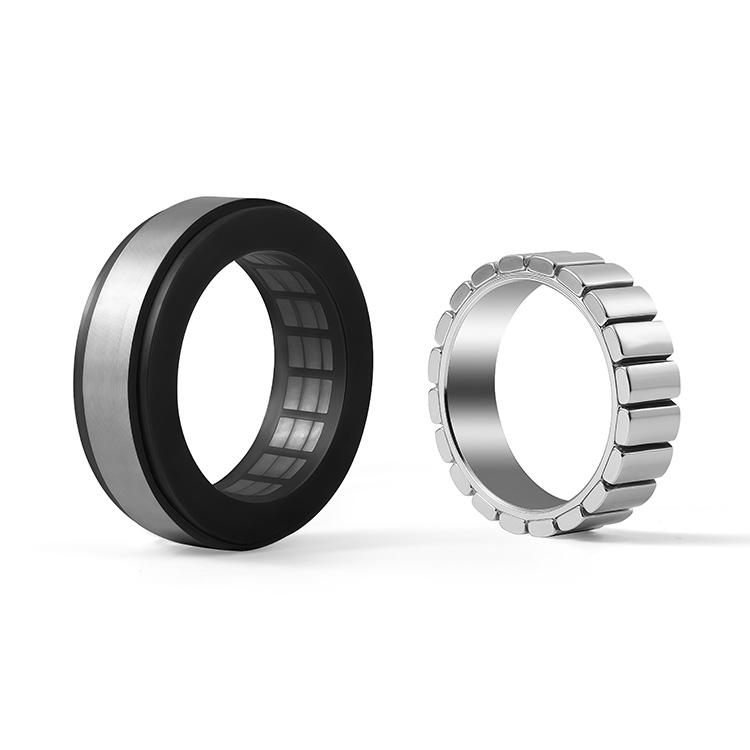

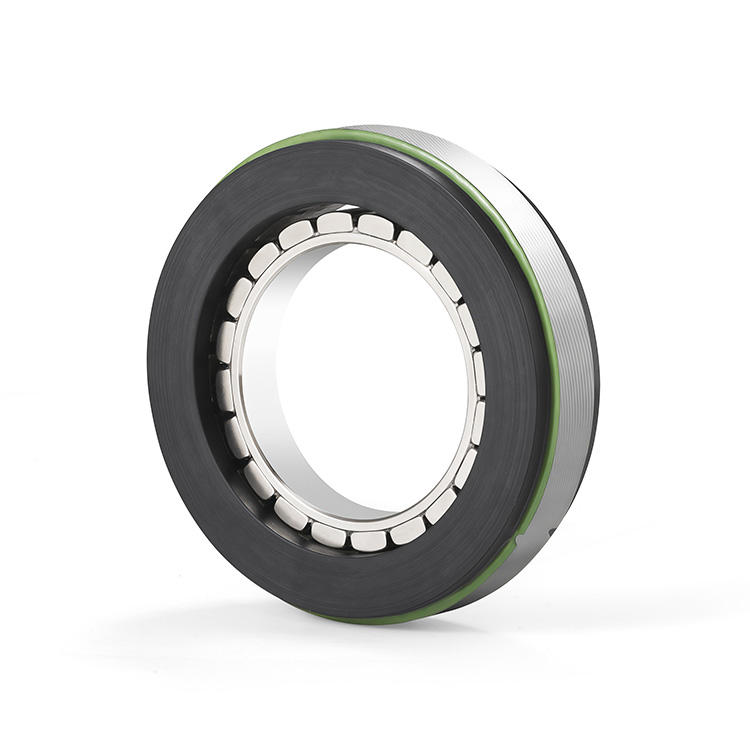

Frameless Motor OD 85mm Height 23.9mm 1.65NM Brushless DC Torque Robot Arm Joint Actuator Motor
Store rating:4.6
(14 reviews)
Attributes
customContinuous Current(A)
IE 4Efficiency
2/4 (Rps)Speed(RPM)
ChinaPlace of Origin
NOFrame
Foot MountMotor Mounting Type
Rated Power:518.76W
Model Number:U8523
Brand Name:other
Commutation:Brushless
Construction:Permanent Magnet
IP Rating:other
Protect Feature:Totally Enclosed
Speed Rpm:3000
Torque:1.65NM
Type:Brushless Motor
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty:Other
AC Voltage(VDC):48V
OD(mm):85
Height(mm):23
Rated Output(W):518.76
Rated Torque(Nm):1.65
Instant Max Torque(Nm):4.45
Rated Current(A):14
Instant Max Current(A):36
Rated Speed(RPM):3000
Max Speed( RPM):6000
Key attributes
Continuous Current(A)
custom
Efficiency
IE 4
Speed(RPM)
2/4 (Rps)
Place of Origin
China
Frame
NO
Motor Mounting Type
Foot Mount
Rated Power
518.76W
Model Number
U8523
Brand Name
other
Commutation
Brushless
Construction
Permanent Magnet
IP Rating
other
Protect Feature
Totally Enclosed
Speed Rpm
3000
Torque
1.65NM
Type
Brushless Motor
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty
Other
AC Voltage(VDC)
48V
OD(mm)
85
Height(mm)
23
Rated Output(W)
518.76
Rated Torque(Nm)
1.65
Instant Max Torque(Nm)
4.45
Rated Current(A)
14
Instant Max Current(A)
36
Rated Speed(RPM)
3000
Max Speed( RPM)
6000
Packaging and delivery
Selling Units
Single item
Single package size
12X12X12 cm
Single gross weight
30.000 kg
Lead time
Product descriptions from the supplier
2 - 299 pieces
$88
>= 300 pieces
$58
