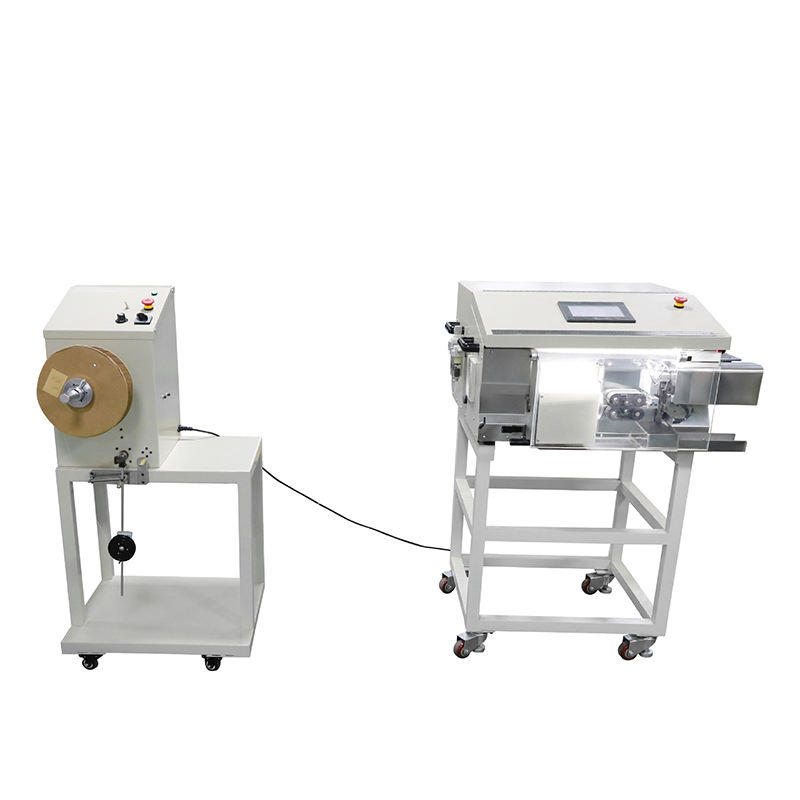

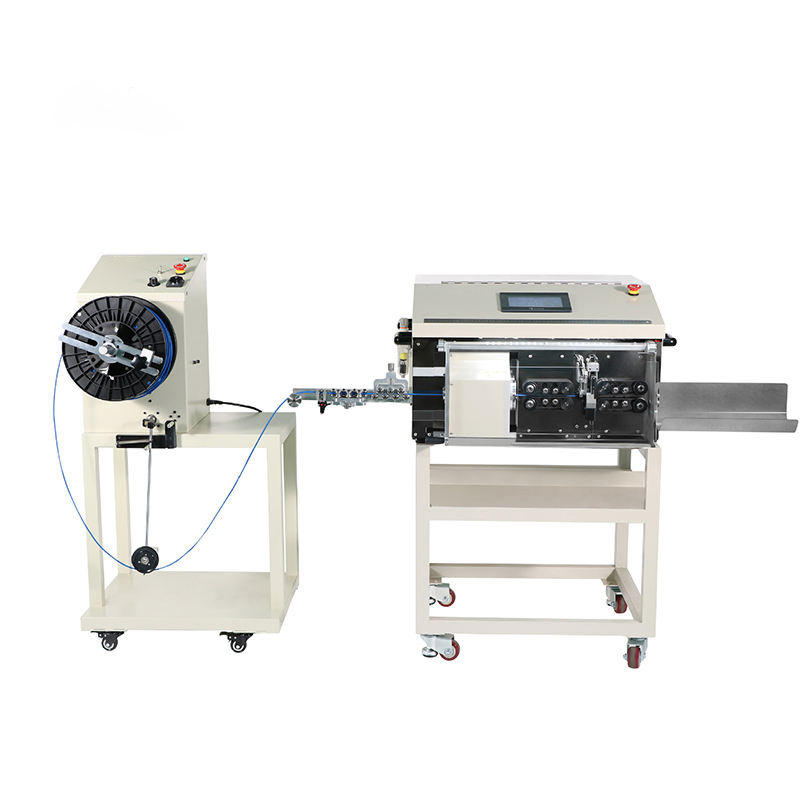

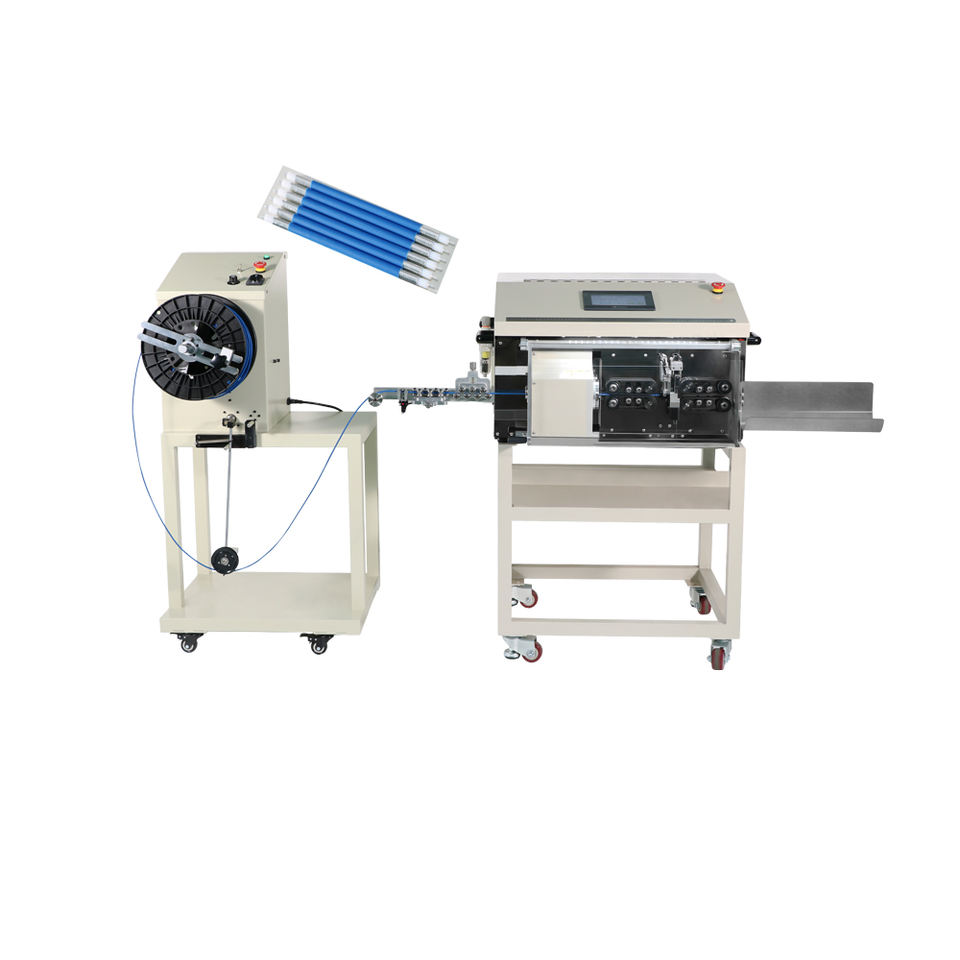

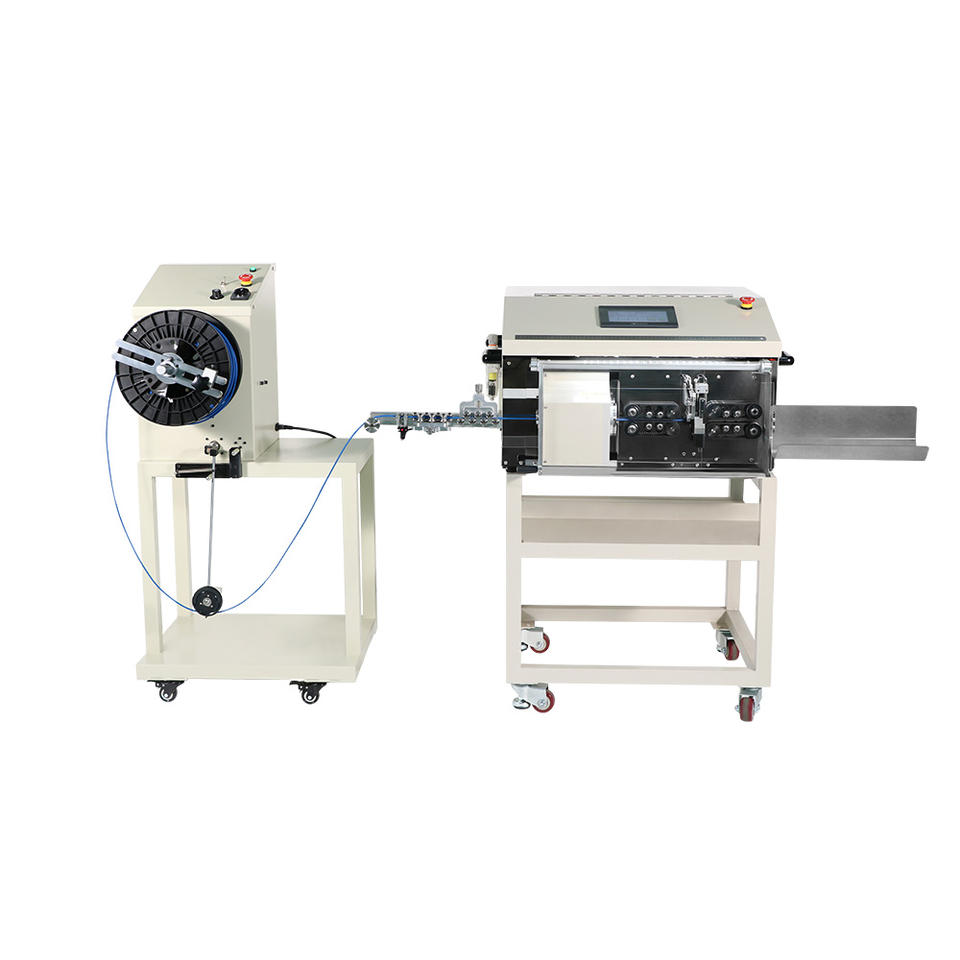

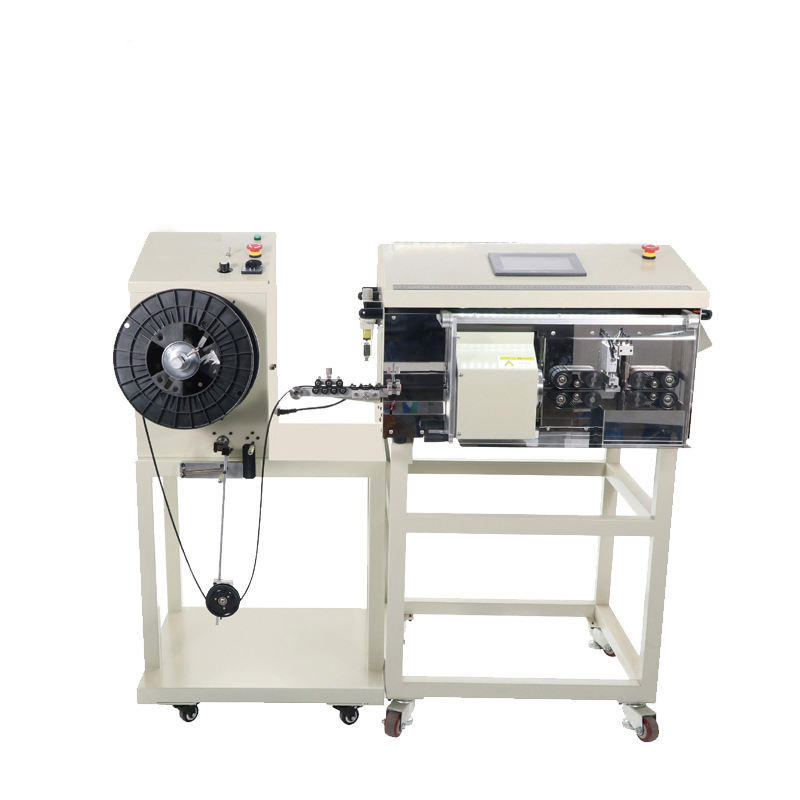

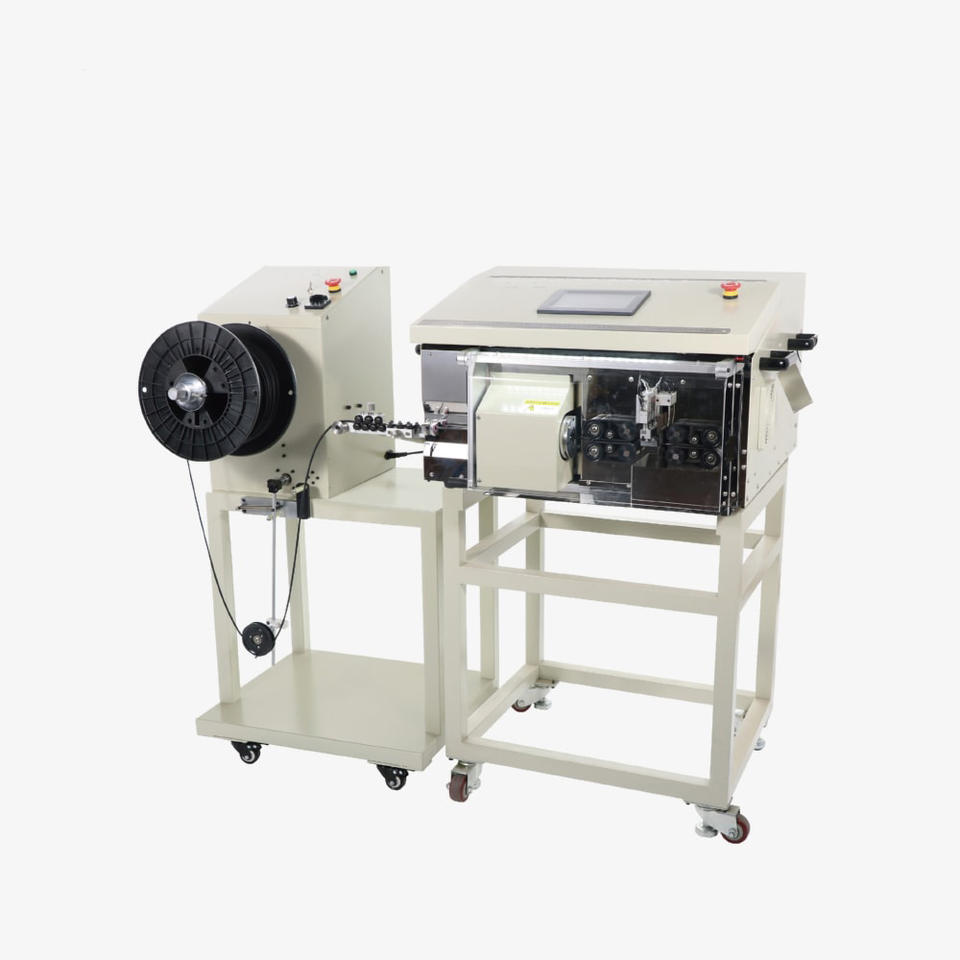

Full Automatic Coaxial Cable Stripping Machine for Intelligent Parameter Setup of Shielded Wires
No reviews yet
SINRAD TECHNOLOGY CO., LIMITED
HK3 yrs on Alibaba.com
5/5.0(7 reviews)Reorder rate: 20%Response Time ≤ 2hOn-time delivery rate ≥ 100%
Attributes
Strippingusage
AutomaticOperating Mode
120Weight (KG)
Guangdong, Chinaplace of origin
sinradbrand name
SR-9610Smodel number
Dimension(L*W*H):790*730*400mm
Model:SR-9610S
Display method:touchscreen
Applicable wires:Coaxial Cable
Wire Cutting Capacity:50mm-9999mm
Wire Diameter Range:1.0-6.0mm (max 8.5mm with different blade heads)
Stripping Length:Max 100mm on the right, Max 45mm on the left
Wire Cutting Accuracy:Length accuracy ±1‰
Stripping Accuracy:±0.1mm (taking PVC outer insulation as an example)
Cutting Depth Setting Unit:0.01mm
Maximum Stripping Layers:6 layers
Display Interface:153mm*85mm (Chinese/English) LCD
Power Supply:AC220V/110V 50/60HZ
Drive Method:Motor/Ball Screw Drive
Stripping Method:Rotary blade + cutting blade
Working environment:5-45 degrees Celsius, dry and vibration-free worktable
Storage capacity:40 types of processing parameter data
Production efficiency:350-900pcs/h (depending on material)
Blade material:Imported tungsten steel + imported high-speed steel
Key attributes
usage
Stripping
Operating Mode
Automatic
Dimension(L*W*H)
790*730*400mm(31.10*28.74*15.75in)
Weight (KG)
120
brand name
sinrad
model number
SR-9610S
place of origin
Guangdong, China
Model
SR-9610S
Display method
touchscreen
Applicable wires
Coaxial Cable
Wire Cutting Capacity
50mm-9999mm
Wire Diameter Range
1.0-6.0mm (max 8.5mm with different blade heads)
Stripping Length
Max 100mm on the right, Max 45mm on the left
Wire Cutting Accuracy
Length accuracy ±1‰
Stripping Accuracy
±0.1mm (taking PVC outer insulation as an example)
Cutting Depth Setting Unit
0.01mm
Maximum Stripping Layers
6 layers
Display Interface
153mm*85mm (Chinese/English) LCD
Power Supply
AC220V/110V 50/60HZ
Drive Method
Motor/Ball Screw Drive
Stripping Method
Rotary blade + cutting blade
Working environment
5-45 degrees Celsius, dry and vibration-free worktable
Storage capacity
40 types of processing parameter data
Production efficiency
350-900pcs/h (depending on material)
Blade material
Imported tungsten steel + imported high-speed steel
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 set
$16,370
Variations
Select nowCapacity (kg/h): 100 kg/h(220.46lb/h)
100 kg/h(220.46lb/h)
Power(W)
800W(1.07hp)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
