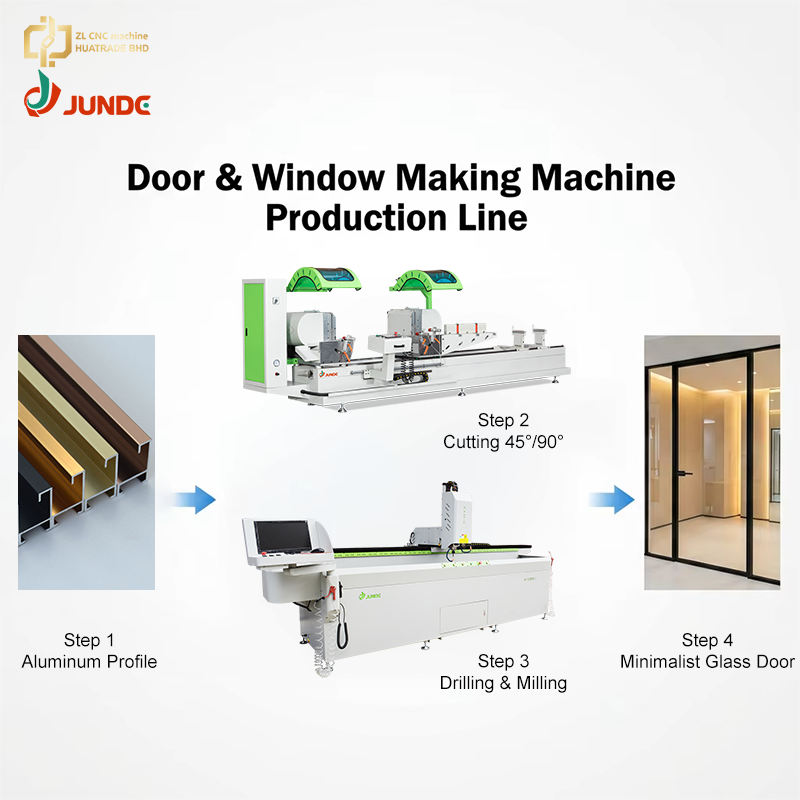

Full Solution Window Door Making Machine Set 4-Axis CNC Machining Center 3000mm Stroke and CNC Swing Cutting Saw
No reviews yet
Attributes
Wood / Plastic / Soft Metal, AluminumApplicable Material
380 VVoltage
High-AccuracyKey Selling Points
Bearing, Spindle motor, Inverter, Guide rail, Ball screw, Servo systemCore Components
1 YearWarranty
ProvidedVideo outgoing-inspection
Machinery Test Report:Provided
Power(W):12.8kw(X3000-4)/5400w(W3700)
Place of Origin:Guangdong, China
Weight:1200 kg
Brand Name:JUNDE
Dimension(L*W*H):4410*2070*2065mm(X3000-4)/6040X1550X1570mm(W3700)

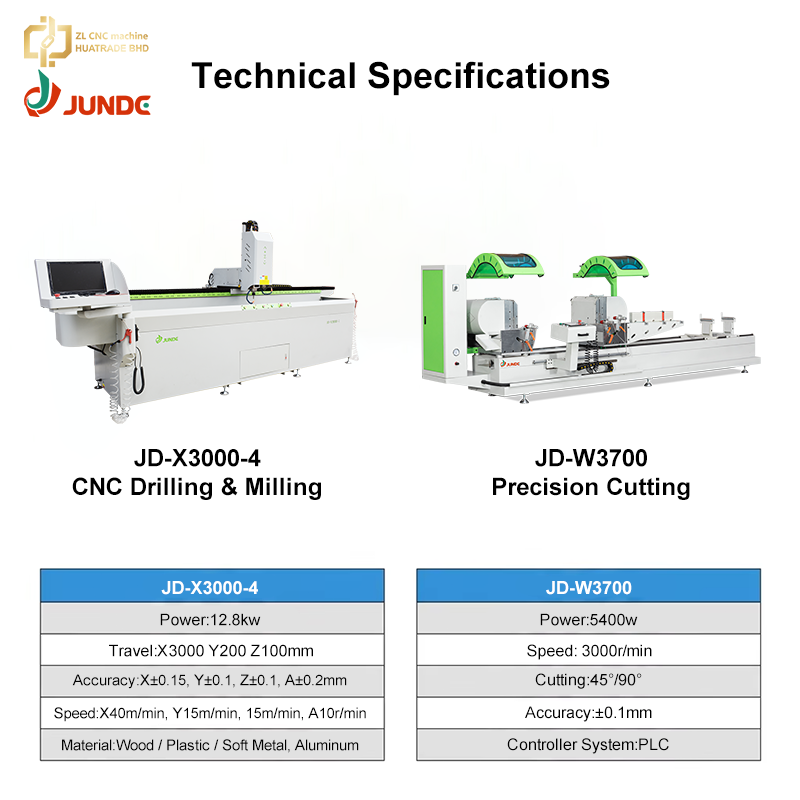

Product name:Four-Axis CNC Drilling and Milling Machine (3-Meter Standard Model)
Application:Production Doors/Windows/Cabinets/Wardrobes,ect.
Servo System:1.0 kW / 3000 RPMProduction Doors/Windows/Cabinets/Wardrobes,ect.
Linear Guide Lubrication:Automatic guideway oil lubrication
Cutting Cooling:4KW
Guide Rail Slider:XYZ Axis 20 Precision Linear Guide Rail Slider
Machining Stroke:X-axis: 3000mm, Y-axis: 200mm, Z-axis: 100mm
Movement Speed:X-axis: 40m/min, Y-axis: 15m/min, Z-axis: 15m/min, A-axis: 10r/min
Accuracy:X-axis: ±0.15, Y-axis: ±0.1, Z-axis: ±0.1, A-axis: ±0.2
Ambient Temperature (24h average ≤35°C):5-40°C
Relative Humidity:30-75%
Vibration Intensity:<0.5 kg
Ground Resistance:<10 Ω (independent grounding, not shared)
Key attributes
Applicable Material
Wood / Plastic / Soft Metal, Aluminum
Voltage
380 V
Key Selling Points
High-Accuracy
Core Components
Bearing, Spindle motor, Inverter, Guide rail, Ball screw, Servo system
Warranty
1 Year
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Power(W)
12.8kw(X3000-4)/5400w(W3700)
Place of Origin
Guangdong, China
Weight
1200 kg
Brand Name
JUNDE
Dimension(L*W*H)
4410*2070*2065mm(X3000-4)/6040X1550X1570mm(W3700)
Product name
Four-Axis CNC Drilling and Milling Machine (3-Meter Standard Model)
Application
Production Doors/Windows/Cabinets/Wardrobes,ect.
Servo System
1.0 kW / 3000 RPMProduction Doors/Windows/Cabinets/Wardrobes,ect.
Linear Guide Lubrication
Automatic guideway oil lubrication
Cutting Cooling
4KW
Guide Rail Slider
XYZ Axis 20 Precision Linear Guide Rail Slider
Machining Stroke
X-axis: 3000mm, Y-axis: 200mm, Z-axis: 100mm
Movement Speed
X-axis: 40m/min, Y-axis: 15m/min, Z-axis: 15m/min, A-axis: 10r/min
Accuracy
X-axis: ±0.15, Y-axis: ±0.1, Z-axis: ±0.1, A-axis: ±0.2
Ambient Temperature (24h average ≤35°C)
5-40°C
Relative Humidity
30-75%
Vibration Intensity
<0.5 kg
Ground Resistance
<10 Ω (independent grounding, not shared)
Packaging and delivery
Selling Units
Single item
Single gross weight
1800.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 1 unit)
Customized packaging(+ from /Min. order: 1 unit)
Graphic customization(+ from /Min. order: 1 unit)
View details
Product descriptions from the supplier
Minimum order quantity: 1 unit
£4,51094-10,74574
Variations

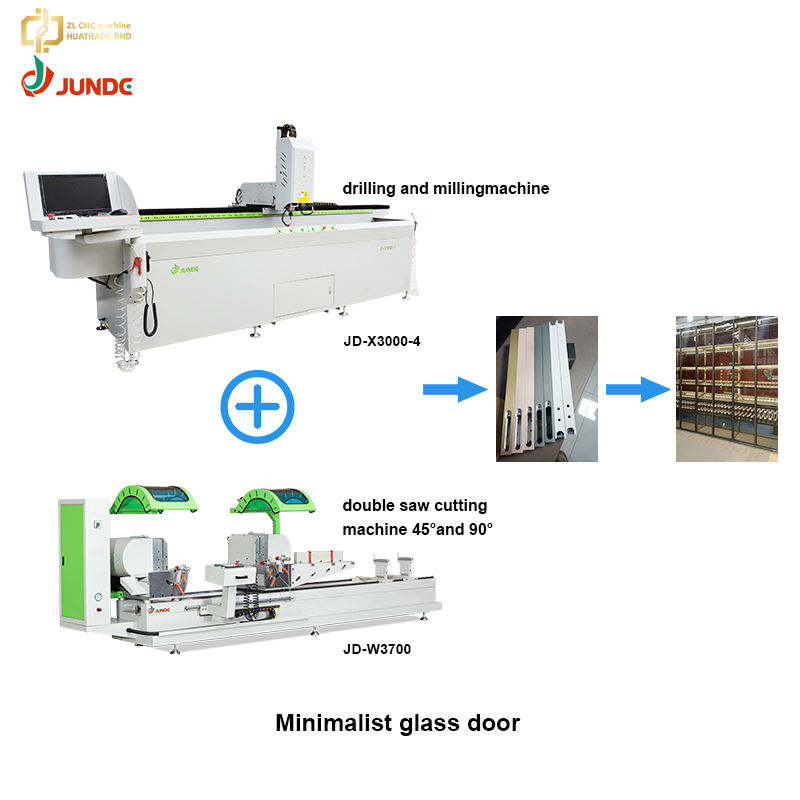

Select nowModel Number: JD-X3000-4
JD-X3000-4
JD-W3700
JD-X3000-4 + JD-W3700
Production Capacity: X-axis: 40m/min;Y-axis:15m/min,Z-axis: 15m/min;A-axis: 10r/min
X-axis: 40m/min;Y-axis:15m/min,Z-axis: 15m/min;A-axis: 10r/min
Max. Working Width
3000mm(118.11in)
100mm(3.94in)
3000/100mm
Customization options
Customized logo (Min. order: 1 unit)
Customized packaging (Min. order: 1 unit)
Graphic customization (Min. order: 1 unit)
