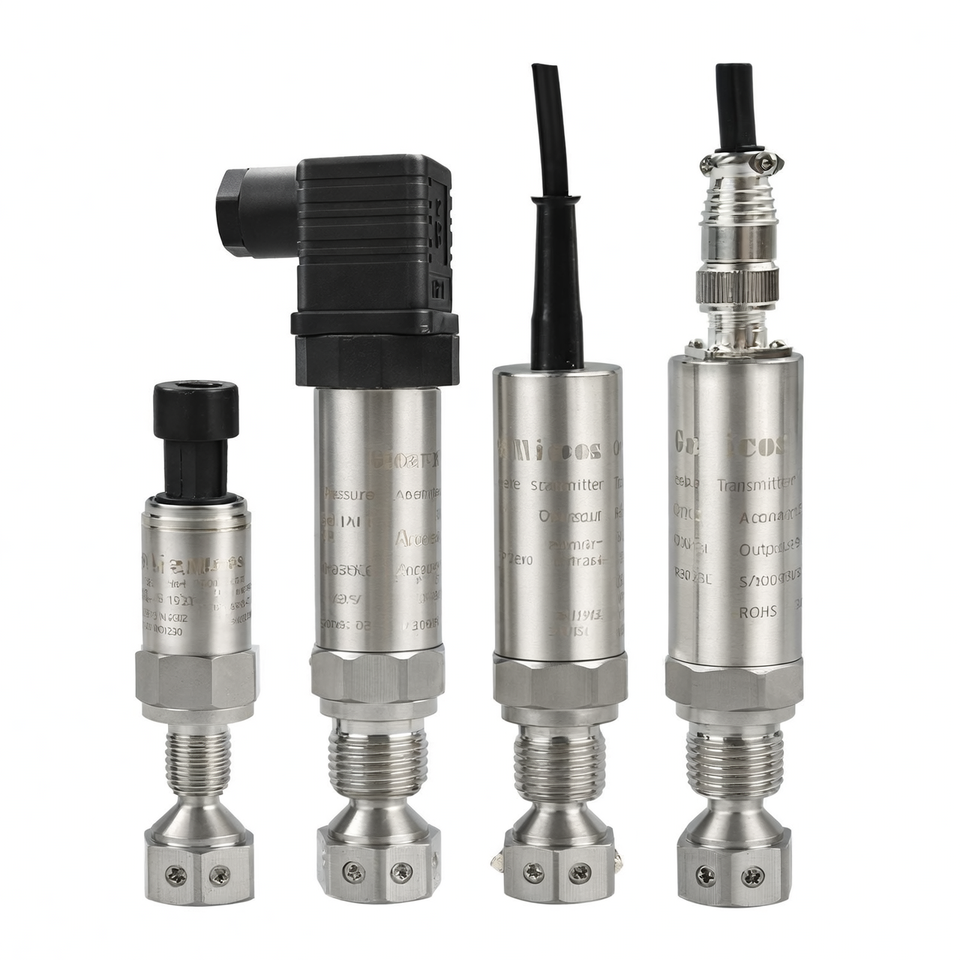

GPT200 Water Gas Piezoresistive Hydraulic 4~20mA 250bar Pressure Transmitter Sensor
No reviews yet
Attributes
0.25%, 0.25%FS(typ.) 0.5%FS(max.)accuracy
Shaanxi, Chinaplace of origin
IP67, iP68Protection Class
GAMICOSbrand name
OEM, ODMcustomized support
stainless steelmaterial
warranty:18months
Products:Hydraulic Pressure Sensor
Pressure range:-100kPa~0...0~10kPa...100MPa
pressure type:gauge (G), absolute (A), sealed gauge (S)
output signal:4~20mA ,0~5Vdc ,1~5Vdc ,0~10Vdc ,0.5~4.5Vdc optional
power supply:12~36Vdc , 5Vdc optional
electrical interface:DIN43650,option1.5m cable connection
pressure interface:M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT (customer request)
material of pressure membrane:316L stainless steel
oem:acceptable
Key attributes
accuracy
0.25%, 0.25%FS(typ.) 0.5%FS(max.)
place of origin
Shaanxi, China
Protection Class
IP67, iP68
brand name
GAMICOS
customized support
OEM, ODM
material
stainless steel
warranty
18months
Products
Hydraulic Pressure Sensor
Pressure range
-100kPa~0...0~10kPa...100MPa
pressure type
gauge (G), absolute (A), sealed gauge (S)
output signal
4~20mA ,0~5Vdc ,1~5Vdc ,0~10Vdc ,0.5~4.5Vdc optional
power supply
12~36Vdc , 5Vdc optional
electrical interface
DIN43650,option1.5m cable connection
pressure interface
M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT (customer request)
material of pressure membrane
316L stainless steel
oem
acceptable
Packaging and delivery
Selling Units
Single item
Single package size
19.5X8.7X14.8 cm
Single gross weight
0.300 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 unit
$3250
Variations
Select nowShipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
