Attributes
Horizontaltype
1000max. length of workpiece (mm)
1500max. weight of workpiece(kg)
1no. of spindles
200travel (x axis)(mm)
1000travel (z axis)(mm)
positioning accuracy (mm):0.015
repeatability (x/y/z) (mm):0.01
place of origin:Guangdong, China
warranty:1 Year
machining capacity:Medium Duty
width of bed (mm):180 mm
number of axes:3
dimension(l*w*h):2450*1380*1640mm
brand name:Rowdai
model number:CK6140
voltage:380 V, 50HZ
cnc control system:GSK

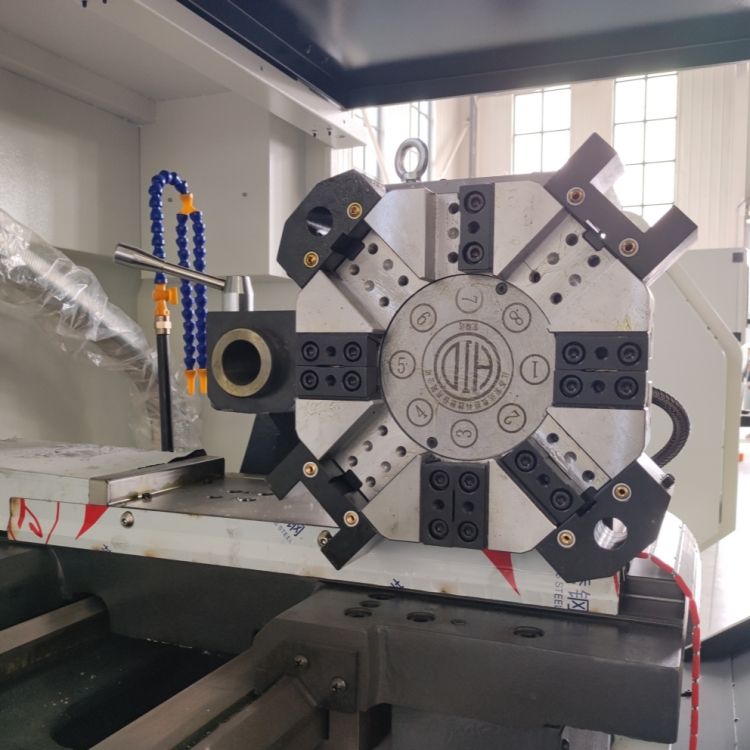

tool post stations:4
weight:1800
key selling points:High-Accuracy
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:125 - 3500
cutting torque:48
Max.cutting diameter:850mm
chuck diameter:400mm
X axis speed:6m/min
Z axis speed:8m/min
The tailstock diameter:65mm
The tailstock travel:140mm
Taper of spindle taper hole of tailstock:MT4
Knife party size:20*20mm
CNC or Not:CNC
After-sales Service Provided:Online Support
Selling Units:Single item
Single package size:XX cm
