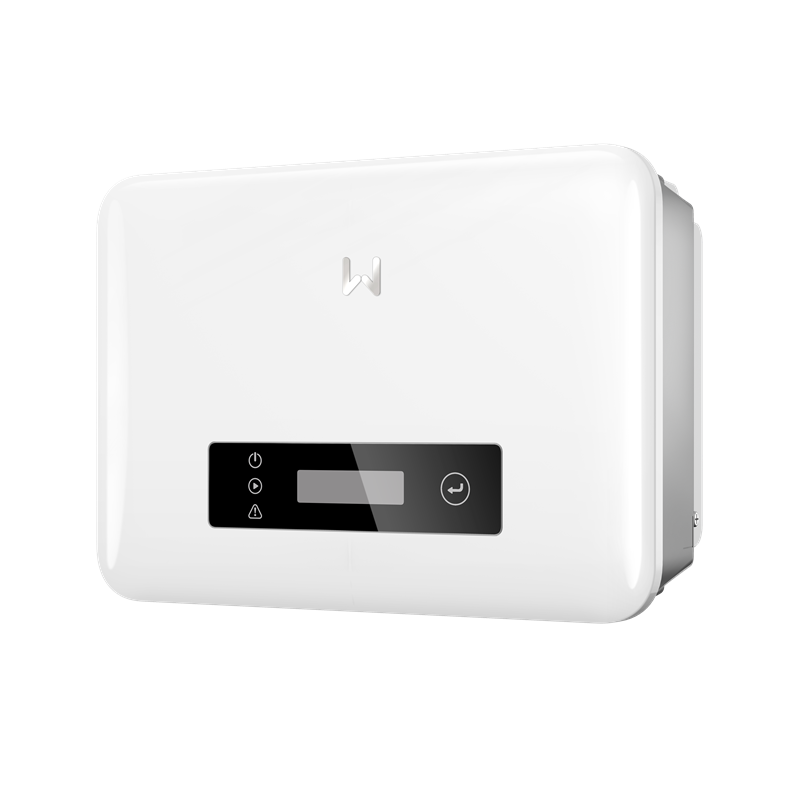

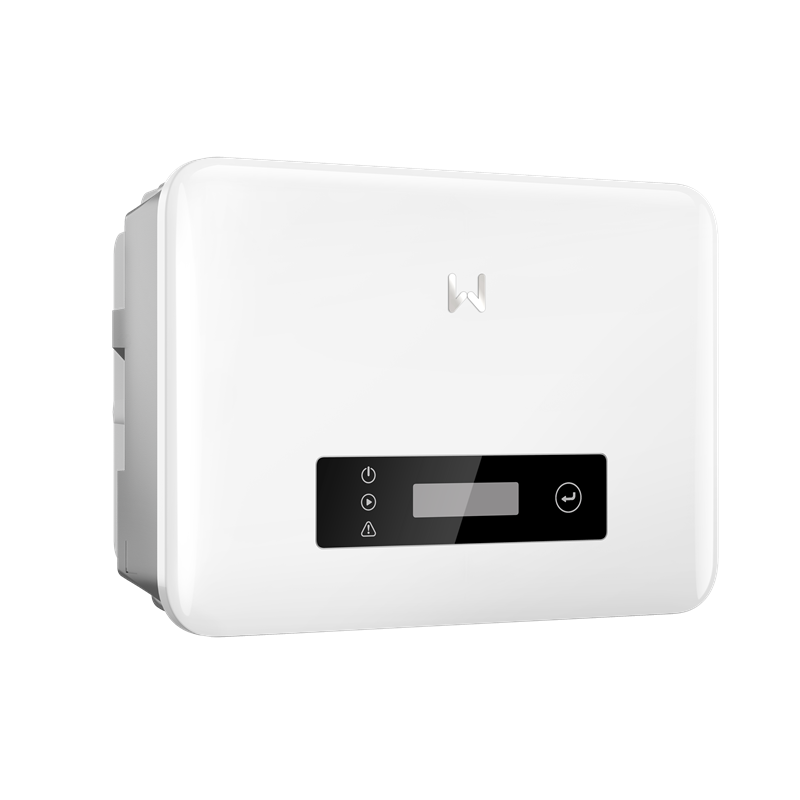

Goodwe GT 100KW-125KW Series Single Phase Residential Grid Connected Inverter 97.6% Efficiency IP66 Compact Design Home Energy

No reviews yet
MATRIX ENERGY PTE LTD
1 yr
SG

Attributes

SingleOutput Type
97.6%Inverter Efficiency
Zhejiang, ChinaPlace of Origin
GW700-3300-XS-30Model Number
GoodweBrand Name
600VInput Voltage
Output Voltage:220 / 230 / 240V
Output Current:3.2-15A
Output Frequency:50Hz/60Hz
Size:306*218*119 mm
Type:DC/AC Inverters
Weight:4.6kg
MPPT Operating Voltage Range (V):40 ~ 450/40 ~ 550
Start-up Voltage (V):50
Nominal Input Voltage (V):360
Max. Input Current per MPPT (A):16
Max. Short Circuit Current per MPPT (A):25
User Interface:LCD, WLAN + APP
Communication:RS485, WiFi, LAN or 4G or Bluetooth (Optional)
Communication Protocols:Modbus RTU, Modbus TCP
Ingress Protection Rating:IP66
AC Connector:Plug and Play Connector

Key attributes

Output Type
Single
Inverter Efficiency
97.6%
Place of Origin
Zhejiang, China
Model Number
GW700-3300-XS-30
Brand Name
Goodwe
Input Voltage
600V
Output Voltage
220 / 230 / 240V
Output Current
3.2-15A
Output Frequency
50Hz/60Hz
Size
306*218*119 mm
Type
DC/AC Inverters
Weight
4.6kg
MPPT Operating Voltage Range (V)
40 ~ 450/40 ~ 550
Start-up Voltage (V)
50
Nominal Input Voltage (V)
360
Max. Input Current per MPPT (A)
16
Max. Short Circuit Current per MPPT (A)
25
User Interface
LCD, WLAN + APP
Communication
RS485, WiFi, LAN or 4G or Bluetooth (Optional)
Communication Protocols
Modbus RTU, Modbus TCP
Ingress Protection Rating
IP66
AC Connector
Plug and Play Connector
