Attributes
Three PhaseOutput Type
98.1%Inverter Efficiency
Zhejiang, ChinaPlace of Origin

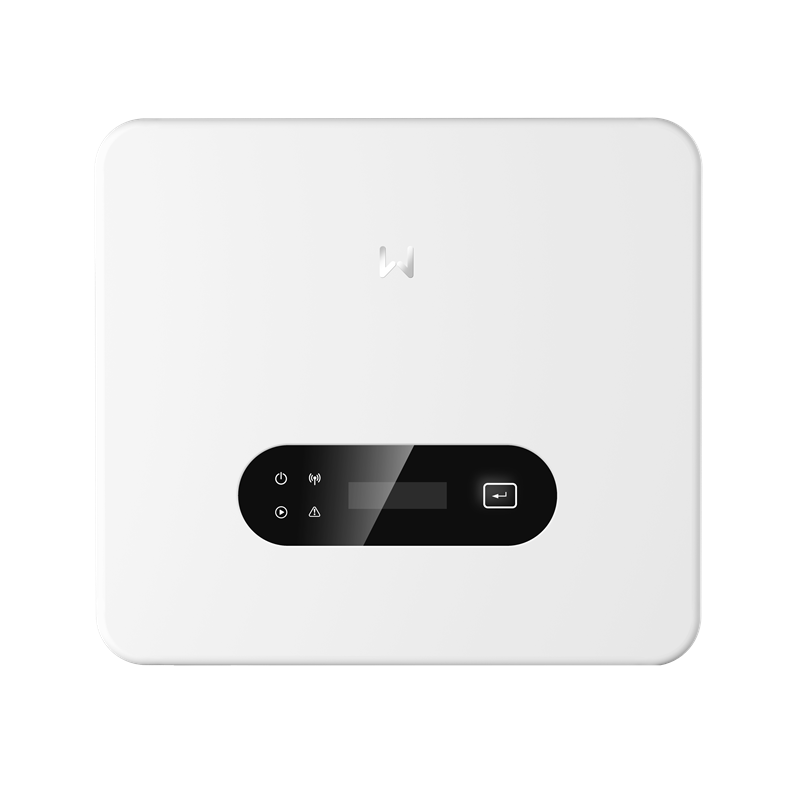

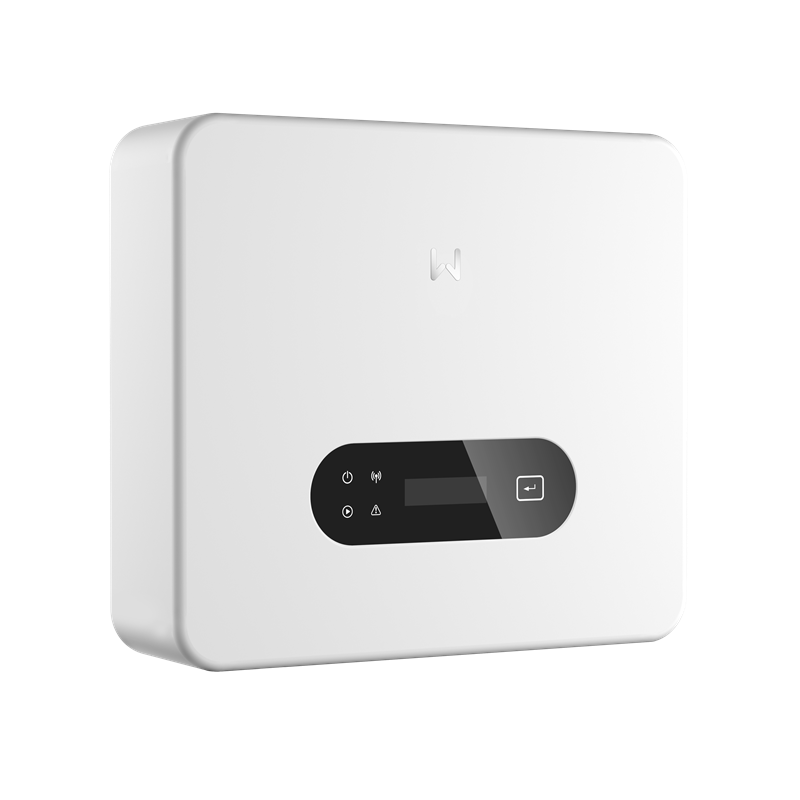

GW3-6K-DNS-G40Model Number
GoodweBrand Name
40 ~ 560VInput Voltage
Output Voltage:220 / 230 / 240V
Output Current:13.7-27.3A
Output Frequency:50Hz/60Hz
Size:358*323*165 mm
Type:DC/AC Inverters
Weight:9.2kg
Max.Input Voltage (V):600
MPPT Operating Voltage Range (V):40 ~ 560
Start-up Voltage (V):50
Nominal Input Voltage (V):360
Max. Input Current per MPPT (A):20
Max. Short Circuit Current per MPPT (A):26
User Interface:LED + LCD / WiFi + APP / Bluetooth + APP
Communication:RS485, WIFI, LAN, Bluetooth, 4G
Topology:Non-isolated
Ingress Protection Rating:IP66
