H32F26/H32F70 Robosense LiDAR 3D SLAM Sensor Industrial Robot 3D 16/32 Beams 150m Range 905nm 360 Embedded

No reviews yet
£1,42698-1,98761
Minimum order quantity: 1 piece
Select now

Specification

Helios 16+Accessory Kit
Helios 32 ( H32F70 )+Accessory Kit
Helios 32 ( H32F26 )+Accessory Kit
Customization options
Customized logo (Min. order: 1 piece)
Customized packaging (Min. order: 200 pieces)
Graphic customization (Min. order: 200 pieces)

Key attributes

Mounting Type

Embedded installation

Manufacturer Part Number

RS-Helios16/32

Brand Name

ND

Usage

Automatic Driving,ADAS,Robot,Train,Vehicle

Output

12W

Description

Original Robosense 16 beam 32 beam LiDAR

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Key attributes

Mounting Type
Embedded installation
Manufacturer Part Number
RS-Helios16/32
Brand Name
ND
Usage
Automatic Driving,ADAS,Robot,Train,Vehicle
Output
12W
Description
Original Robosense 16 beam 32 beam LiDAR
Place of Origin
Guangdong, China
Series
Helios
Theory
Launch laser beam and receive its reflected signal
Brand
Robosense LiDAR
Amplifier Type
940nm laser transceiver scheme
Voltage - Supply
9V - 32V
Output Type
Other
Current - Supply
Other
Operating Temperature
-40.C ~ +60.C
Resolution (Bits)
Other
Features
High precision, high resolution, etc.
Current - Supply (Max)
Other
Packaging
Other
Frequency
5Hz/10Hz/20Hz
Output Configuration
Other
Current
Other
Voltage Rating
Other
Operating Force
Other
Oxygen Range
Other
Humidity Range
Other
Size
Other
Size / Dimension
100mm * H100 mm
Measuring Range
150m(110m@10% NIST)
Resolution
Other
Interface
100Base-T1
Technology
Other
Sensing Range
150m(110m@10% NIST)
Bandwidth
Other
Function
Other
Acceleration Range
Other
Sensitivity (LSB/g)
Other
Sensitivity (mV/g)
Other
Sensitivity (LSB/(°/s))
Other
Sensitivity (mV/°/s)
Other
Sensing Distance
Other
Current - Output
Other
Power - Rated
Other
Voltage - Output Difference (Typ) @ Distance
Other
Voltage - Output (Typ) @ Distance
Other
Voltage - Max
Other
Voltage - DC Reverse (Vr) (Max)
Other
Power - Max
Other
Sensing Object
People,vehicles,obstacles,traffic signs etc.
Sensing Light
Other
Resistance
Other
Resistance Tolerance
Other
Sensing Temperature - Local
Other
Sensing Temperature - Remote
Other
Current Rating - AC
Other
Current Rating - DC
Other
Tolerance
Other
Voltage - Rated
Other
Flow Sensor Type
Other
Voltage - Input
Other
Application
Other
Output Function
Other
Mfg Date Code
Other
Cross Reference
Other
Product Name
Robosense 3D LiDAR
Item Number
Helios 16/ Helios 32
Type

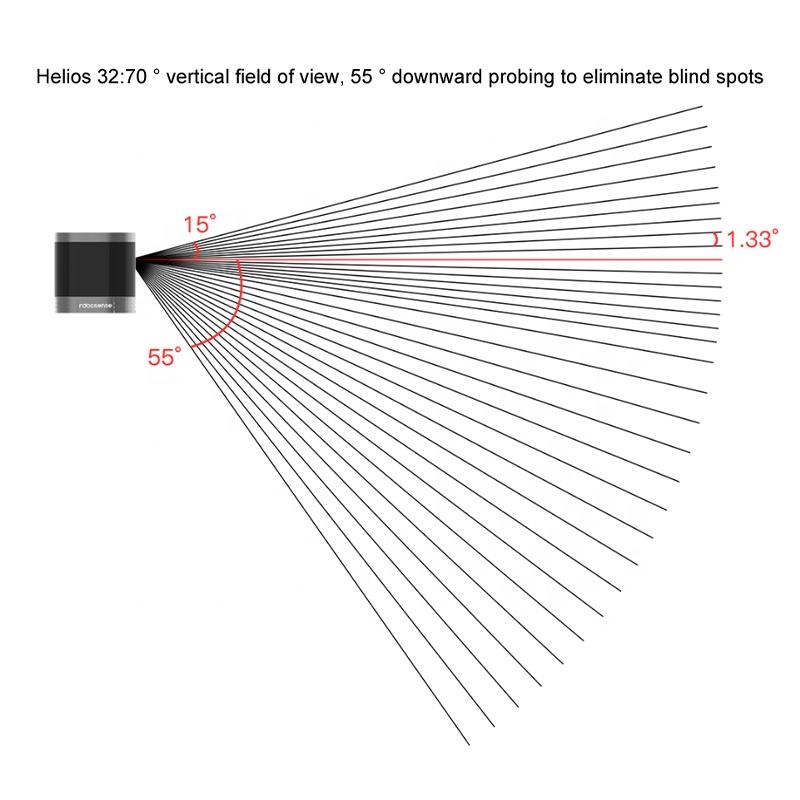

26. FOV, 70. FOV(Helios 32)
# of Lines
16/32 Beams
Laser Wavelength
905nm
Laser Safety
Class 1 eye safey
Range
150m(110m@10% NIST)
Blind Spot
≤0.2m
Horizontal FOV
360.
Warranty
1 Year

Packaging and delivery

Selling Units
Single item
Single package size
30X25X25 cm
Single gross weight
5.000 kg
