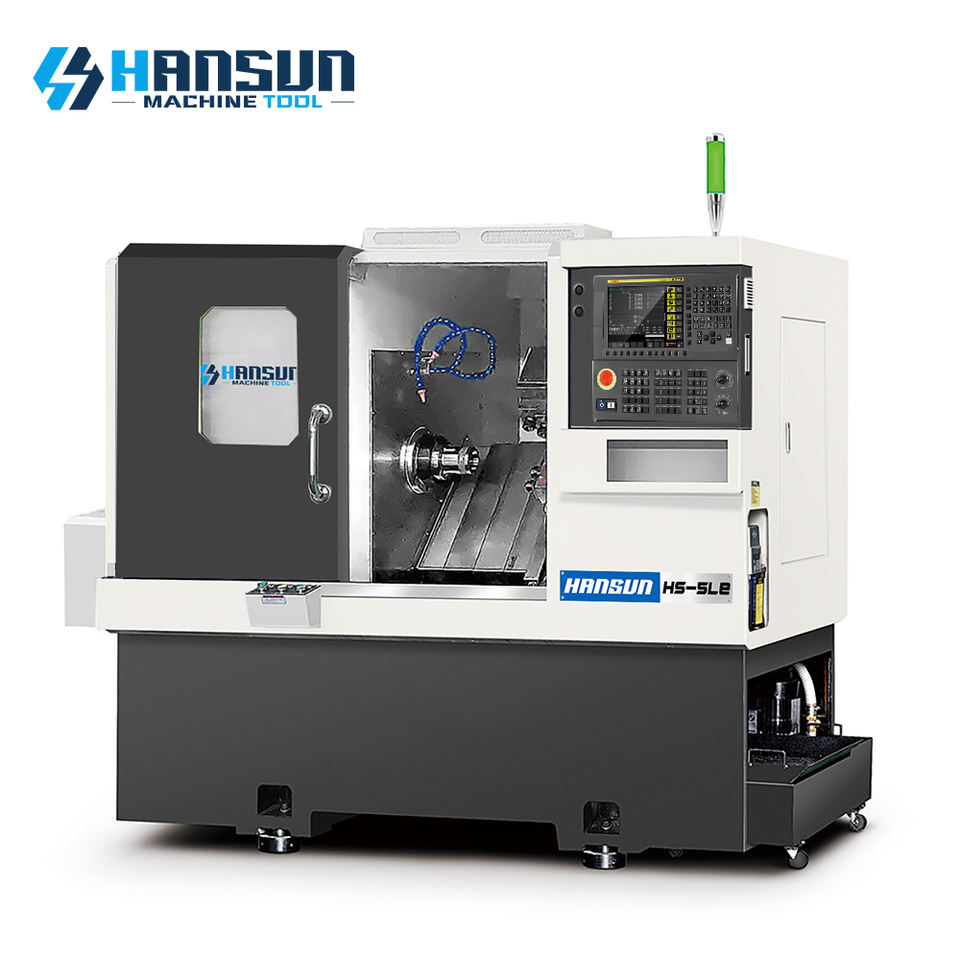

HANSUN-5le High Accurate Long Travel Metal CNC Lathe Cutting Machine
No reviews yet
Attributes
380 V, 220V Electrical Equipmentvoltage
FANUCcnc control system
Light Dutymachining capacity
2number of axes
Singleno. of spindles
8tool post stations
type:cnc lathe
max. length of workpiece (mm):250
max. weight of workpiece(kg):50
travel (x axis)(mm):1040
travel (z axis)(mm):330
positioning accuracy (mm):±0.005
repeatability (x/y/z) (mm):±0.005
place of origin:Guangdong, China
warranty:1 Year
dimension(l*w*h):2400x1500x2000
brand name:HANSUN
model number:5LS
weight:2900
key selling points:Multifunctional, Automatic, Competitive Price
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:0 - 4500
CNC or Not:CNC
max process diameter:380mm
spindle bore:46mm
chuck size:5 inch
x/z axis machining travel:1030/330 mm
center height:56mm
bar feeder ground to center:1120mm
square tool holder size:20x20 mm
max passable bar diameter:35mm
power head speed:3000 r/min
x/z axis fast moving speed:26/26 m/min
tool installation:ER 25 live tools + gang type

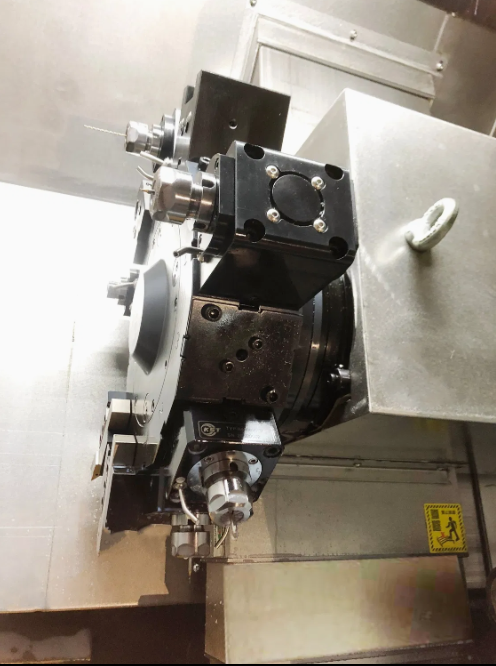

side milling power head structure:1 long 1 short live tools
Key attributes
voltage
380 V, 220V Electrical Equipment
cnc control system
FANUC
machining capacity
Light Duty
number of axes
2
no. of spindles
Single
tool post stations
8
max. length of workpiece (mm)
250
key selling points
Multifunctional, Automatic, Competitive Price
repeatability (x/y/z) (mm)
±0.005
positioning accuracy (mm)
±0.005
warranty
1 Year
type
cnc lathe
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
50
travel (x axis)(mm)
1040
travel (z axis)(mm)
330
place of origin
Guangdong, China
dimension(l*w*h)
2400x1500x2000
brand name
HANSUN
model number
5LS
weight
2900
range of spindle speed
0 - 4500
CNC or Not
CNC
max process diameter
380mm
spindle bore
46mm
chuck size
5 inch
x/z axis machining travel
1030/330 mm
center height
56mm
bar feeder ground to center
1120mm
square tool holder size
20x20 mm
max passable bar diameter
35mm
power head speed
3000 r/min
x/z axis fast moving speed
26/26 m/min
tool installation
ER 25 live tools + gang type
side milling power head structure
1 long 1 short live tools
Packaging and delivery
Selling Units
Single item
Single package size
2400X1500X2000 cm
Single gross weight
2900.000 kg
Lead time
Customization options
cnc control system (Min. order: 1 set)
View details
Product descriptions from the supplier
Customizable
1 - 2 sets
$38,975
>= 3 sets
$38,000
Sample price: $500
