Attributes
380 V, 220V Electrical Equipmentvoltage
FANUCcnc control system
Light Dutymachining capacity
2number of axes
Singleno. of spindles
8tool post stations

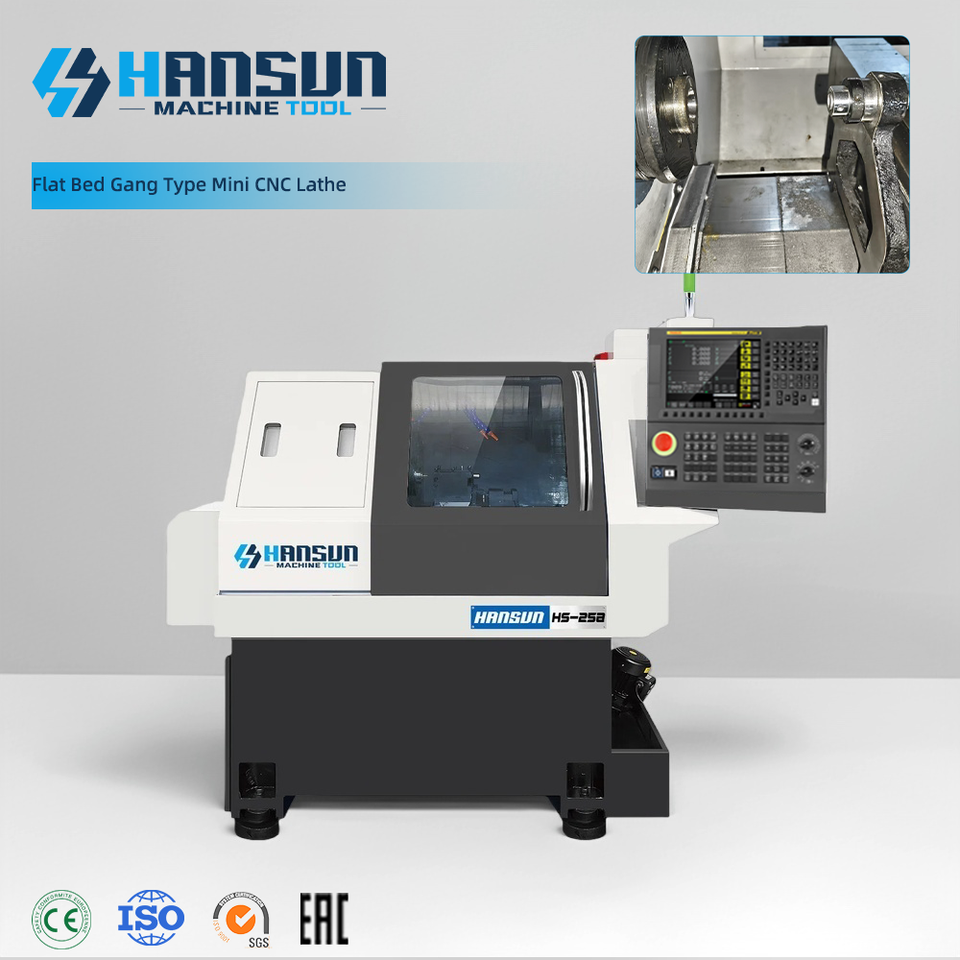

type:cnc lathe
max. length of workpiece (mm):100
max. weight of workpiece(kg):50
travel (x axis)(mm):500
travel (z axis)(mm):230
positioning accuracy (mm):±0.003
repeatability (x/y/z) (mm):±0.003
place of origin:Guangdong, China
warranty:1 Year
dimension(l*w*h):1730x1230x1540
brand name:HANSUN
model number:25a
weight:1360
key selling points:Multifunctional, Automatic
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:0 - 6000
CNC or Not:CNC
Control system:SYNTEC
Max. process diameter:100mm
max process length:230mm
spindle speed:6000r/min
spindle bore:32mm
spindle center height:51mm

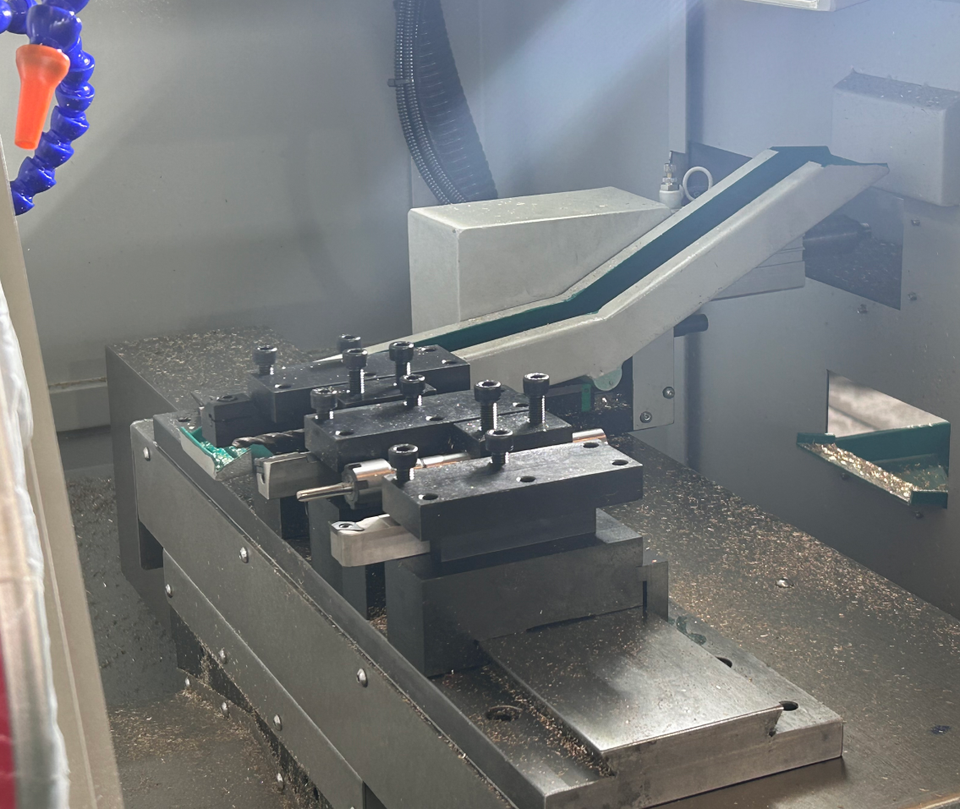

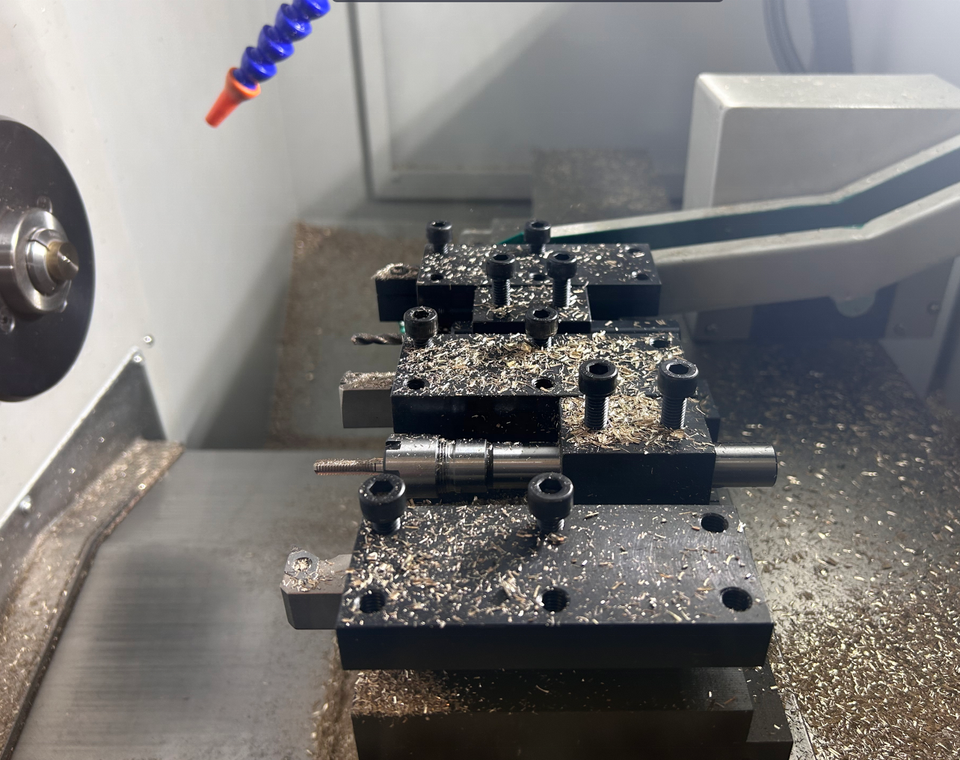

tool installation:gang type 16x16
hole diameter of feeding rod:25mm
max number of tools:8
fast moving speed:24m/min

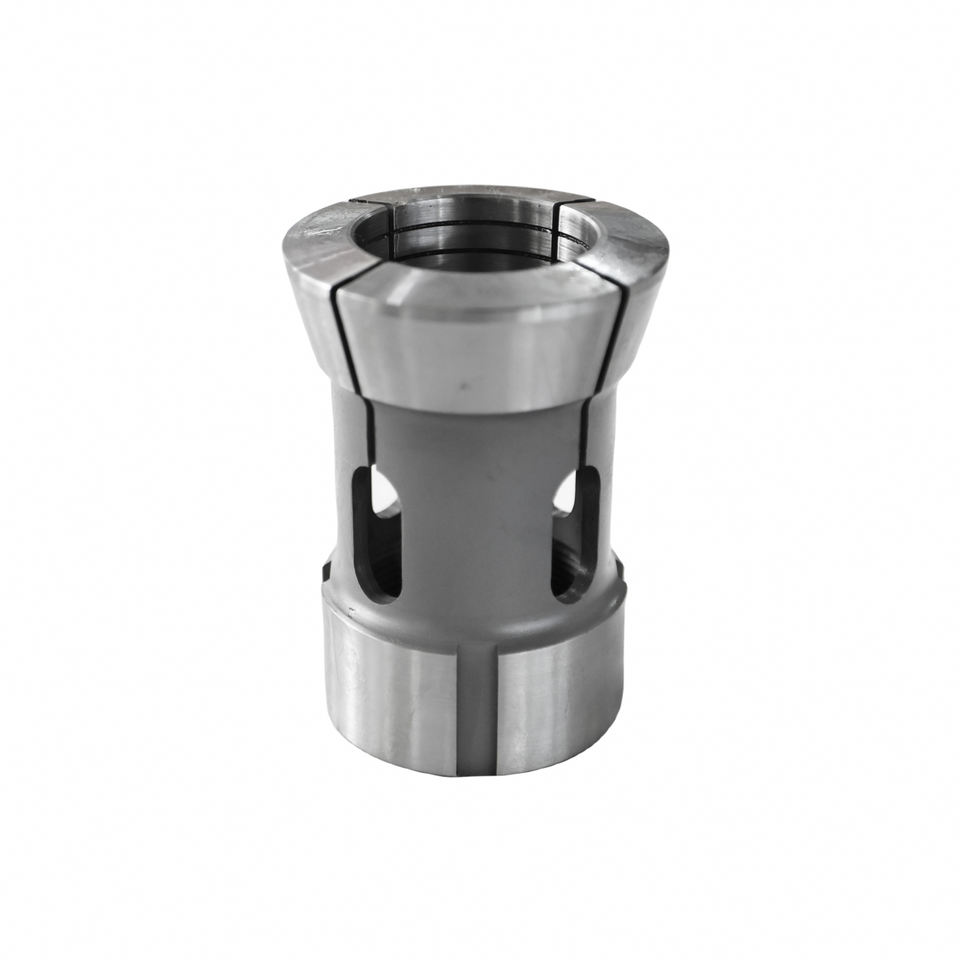

collet model:type 25
water tank motor power:0.35kw
