Complies with EU standards
Attributes
Nesting CNC Routermachine type
3number of axes
ATCNo. of Spindles
380 V, 200 V, 400V, 50Hz60Hz, 1P/3Pvoltage
3 yearswarranty
Eco-Friendlykey selling points
core components:Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
machinery test report:Provided
video outgoing-inspection:Provided
cnc or not:CNC
place of origin:Shandong, China
weight (kg):2000
range of spindle speed(r.p.m):6000 - 24000
positioning accuracy (mm):0.01
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):9
brand name:BCAMCNC
dimension(l*w*h):3500*2000*1550mm
Accessory Type:Dust collection, Scanner
Product name:1325 CNC Router Carving Machine
Application:Kitchen Cabinet Doors Furnitures Making
Keywords:Router Cnc China
Control system:Nc-studio/Mach3/DSP Control System

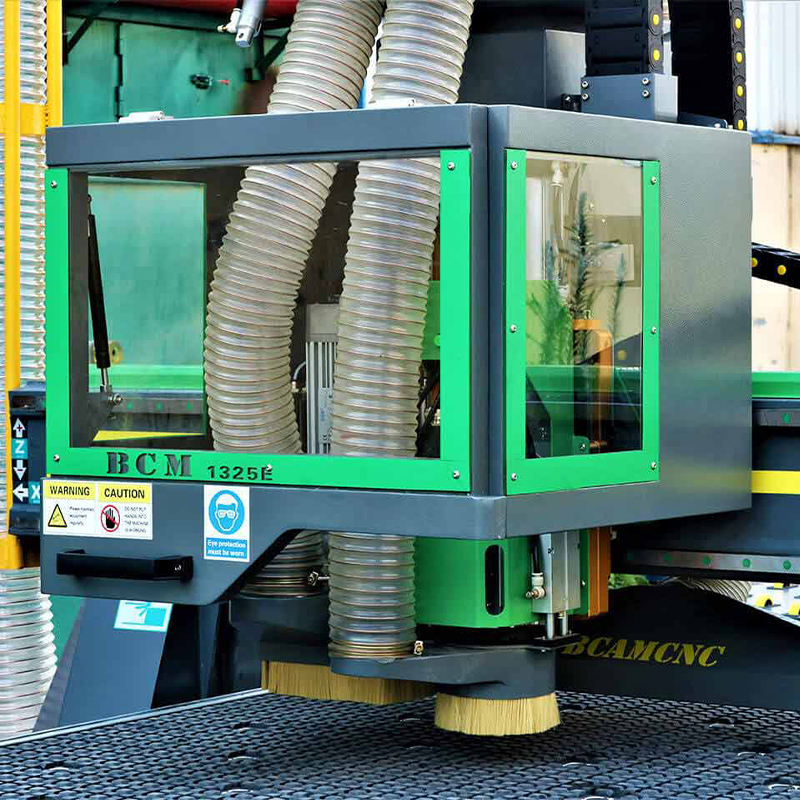

Spindle:9kw Italian air cooling spindle
Function:Cutting Engraving Drilling
Working area:1300x2500x200mm
Motor:Taiwan Syntec ServoDriveSystem
Spindle power:9.0kw ATC Air Cooling
Name:1325 Woodworking CNC Router
Working table:Vacuum Table + Tslot
Transmission:Taiwan TBI Ball Screw
Model:1325 Router Machine
Type:Auto Tool Change
After-sales Service Provided:Service Machinery Overseas
Inverter:Delta Inverter
Working Voltage:AC220V/AC380/50HZ/60HZ
Command Language:G Code
Operating System:DSP/Mach3/Ncstudio
Interface:USB
