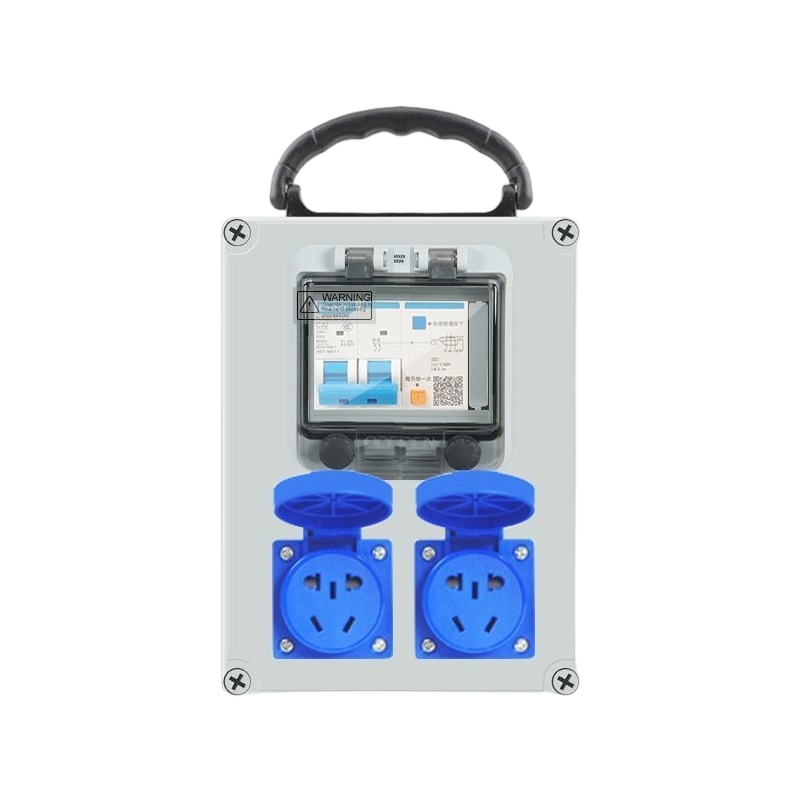

Heavy Duty Portable Power Distribution Box 200x150x100mm – Engineering Plastic, Waterproof, Leakage Protection, Customizable
No reviews yet
Attributes
220 VRated Voltage
32 A, 10ARated Current
Electric Power Transmission, Indoor, Industrial, OutdoorApplication
Ip65IP Level
Distribution BoxType
0Number of Sockets
Place of Origin:Guangdong, China
Model Number:YH-ST78
Brand Name:Yuhe
Lock Type:/
Product Type:Industrial power distribution box with sockets and breakers
Brand of Components:Uses CHNT circuit breakers and leakage protectors
Enclosure Size:200mm x 150mm x 100mm external dimensions
Material:Engineering plastic, strong and durable
IP Rating:IP65, dust-tight and protected from water jets
Mounting Type:Portable or wall-mountable, easy to install
Leakage Protection:Built-in RCD cuts power when leakage occurs
Circuit Breaker Poles:Available in 1P+N or 2P configurations
Socket Type:Civil 5-pin 10A socket, universal fit
Socket Standard:Civil type for household and light industrial use
Terminal Type:Screw-type terminals for secure wire connection
Input Connection:Cable entry via sealed gland or drilled hole
Output Connection:Direct socket outlet or terminal block
Neutral Busbar:Internal copper bar for neutral wires
Ground Busbar:Internal copper bar for earthing connections
Switch Position:Clearly marked main switch or breaker positions
Door Type:Removable front cover with screw or hinge
Key attributes
Rated Voltage
220 V
Rated Current
32 A, 10A
Application
Electric Power Transmission, Indoor, Industrial, Outdoor
IP Level
Ip65
Type
Distribution Box
Number of Sockets
0
Lock Type
/
Place of Origin
Guangdong, China
Model Number
YH-ST78
Brand Name
Yuhe
Product Type
Industrial power distribution box with sockets and breakers
Brand of Components
Uses CHNT circuit breakers and leakage protectors
Enclosure Size
200mm x 150mm x 100mm external dimensions
Material
Engineering plastic, strong and durable
IP Rating
IP65, dust-tight and protected from water jets
Mounting Type
Portable or wall-mountable, easy to install
Leakage Protection
Built-in RCD cuts power when leakage occurs
Circuit Breaker Poles
Available in 1P+N or 2P configurations
Rated Current
Options: 16A or 32A depending on model
Rated Voltage
220V-240V AC for single-phase systems
Socket Type
Civil 5-pin 10A socket, universal fit
Number of Sockets
Can be configured with one or two sockets
Socket Standard
Civil type for household and light industrial use
Terminal Type
Screw-type terminals for secure wire connection
Input Connection
Cable entry via sealed gland or drilled hole
Output Connection
Direct socket outlet or terminal block
Neutral Busbar
Internal copper bar for neutral wires
Ground Busbar
Internal copper bar for earthing connections
Switch Position
Clearly marked main switch or breaker positions
Door Type
Removable front cover with screw or hinge
Packaging and delivery
Selling Units
Single item
Single package size
20X15X10 cm
Single gross weight
2.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 1,000 pieces)
Customized packaging(+ from /Min. order: 100,000 pieces)
Graphic customization(+ from /Min. order: 10,000 pieces)
View details
Product descriptions from the supplier
10 - 999 pieces
£1504
1,000 - 9,999 pieces
£846
≥ 10,000 pieces
£158
Variations

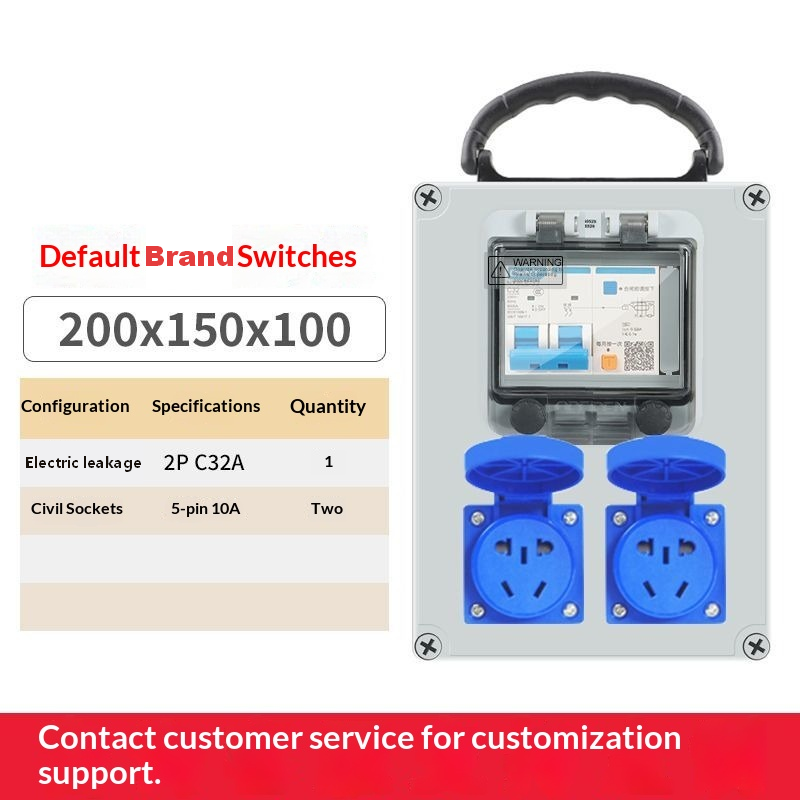

Select nowColor: 32A leakage + five-hole socket
Material: Plastic
Plastic
Size
200*150*100mm
Customization options
Customized logo (Min. order: 1,000 pieces)
Customized packaging (Min. order: 100,000 pieces)
Graphic customization (Min. order: 10,000 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
