Attributes
customizeIngress Protection
Absolute and gauge pressuretype
Germanyplace of origin

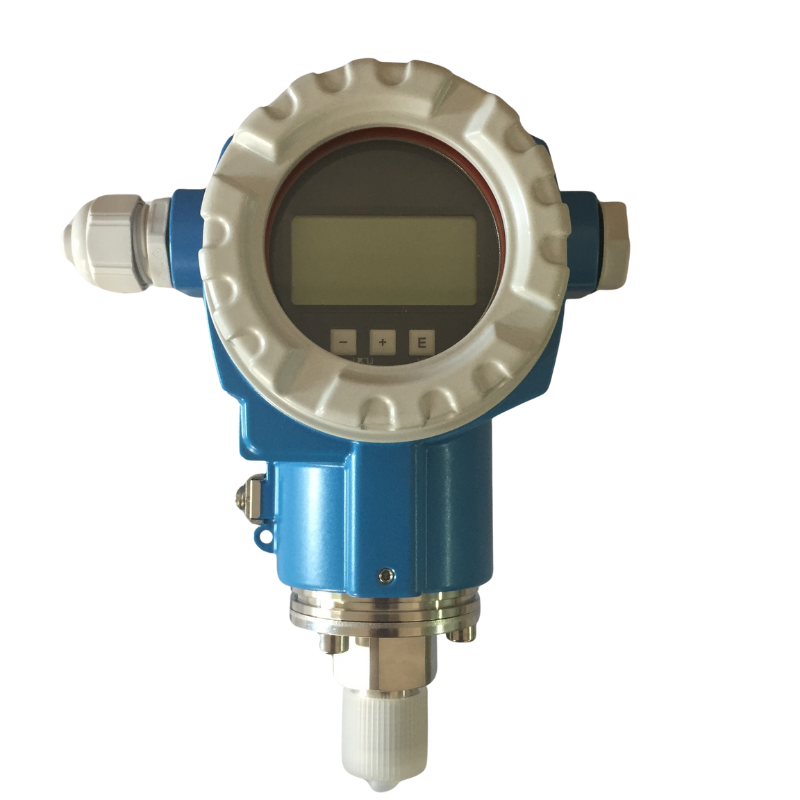

Cerabar PMC71model number
OEM, ODM, OBMcustomized support
Ceraphire ceramic Alloy C 316L Monel PVDFmaterial
warranty:1 Year
Accuracy:Standard: 0.05% Platinum: up to 0.025%
Process temperature:-40°C...150°C (-40°F...302°F)
Pressure measuring range:100mbar...40bar (1.5psi...600psi)
Process pressure:60bar (900psi)
Main wetted parts:Ceraphire ceramic Alloy C 316L Monel PVDF
Max. measurement distance:400m (1312ft) H2O
Material process membrane:Ceramic
Measuring cell:100 mbar...40 bar (1.5 psi...600 psi) relative/ absolute
Process connections:Threads, flanges or hygienic connections
Measuring ranges:-1/0 up to to +40bar (+1.5 to +600psi)
