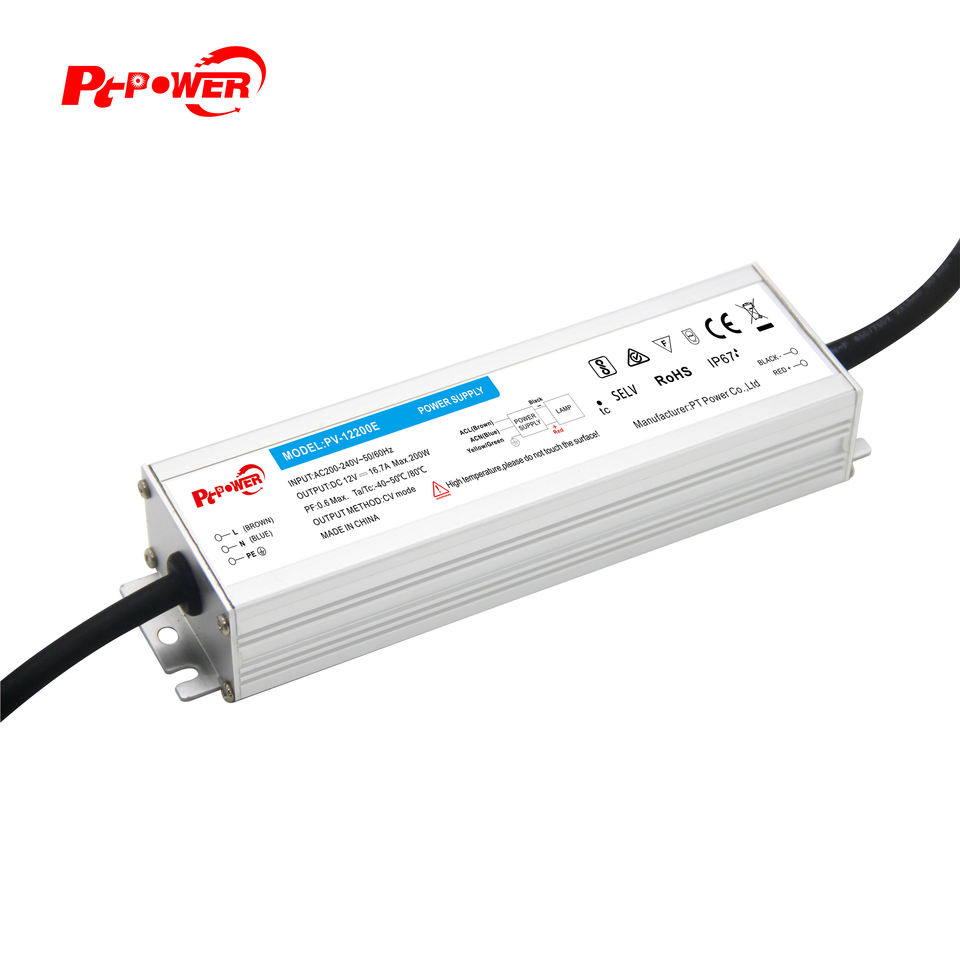

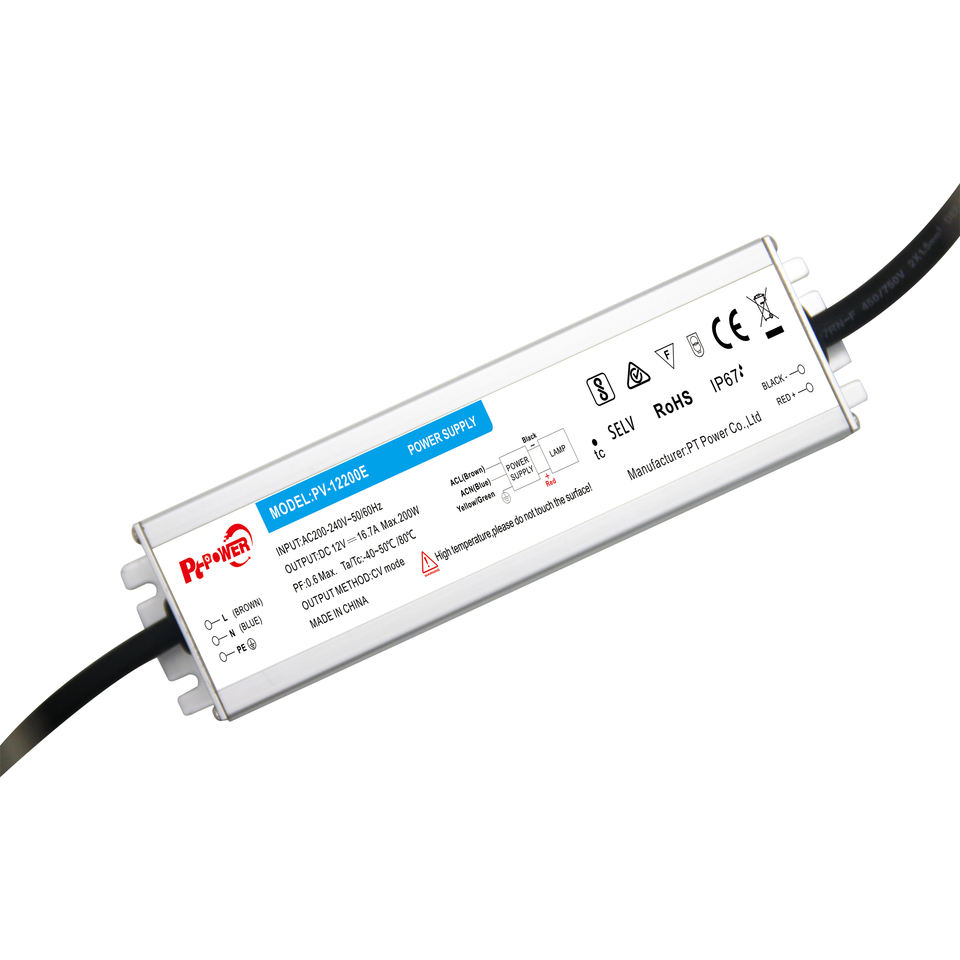

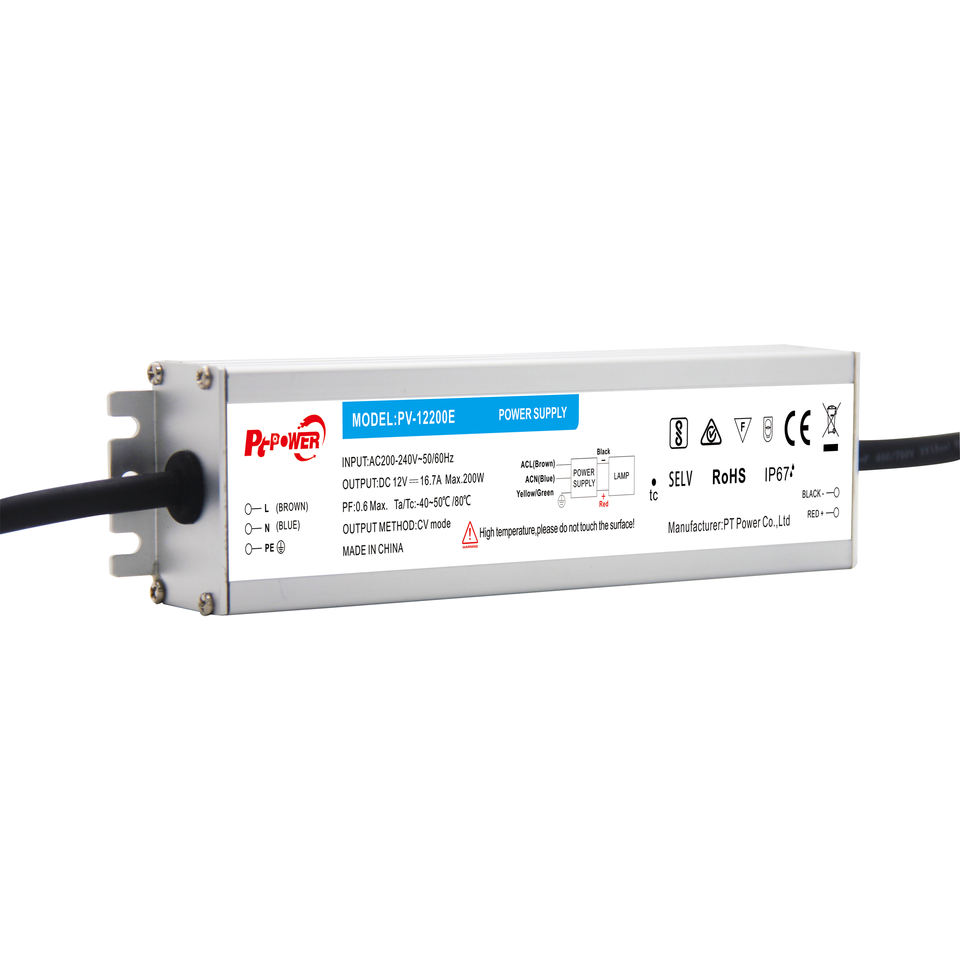

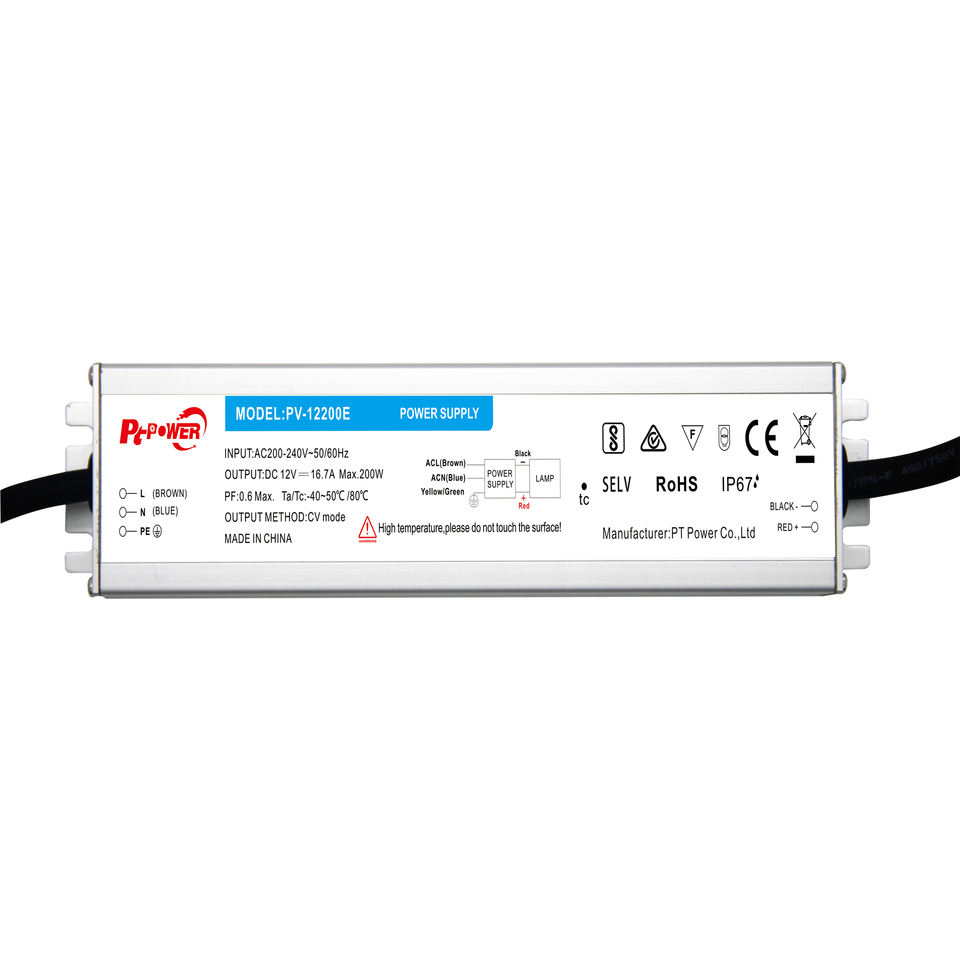

200W CE/CB IP67 Waterproof EMC LED Strip Driver 220-240V AC-DC 12V 24V 48V Constant Voltage High Efficiency Single Power Supply
No reviews yet
Attributes
Led Lighting, Outdoor Lighting, Street LightApplication
AC220-240VInput Voltage
200WOutput Power
4.17A/8.33A/16.7AOutput Current
IP67 WaterproofType
AC-DCEnergy Transfer
Warranty(Year):2/3-Year
Place of Origin:Guangdong, China
Model Number:PV-12200E/PV-24200E/PV-48200E
Brand Name:Pt POWER
Case Material:Aluminum
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥93%
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Frequency:50/60Hz
Output Type:Single
Product Weight（kg）:0.56
Waterproof Level(IP Rate):IP67
Certification:CB/CE/SAA/RoHS
OEM/ODM:Yes
Protection:Short circuit, overload protection
Withstand voltage:I/P-O/P:3.75KVAC I/P-FG 2KVAC O/P-FG:1.5KVAC
Working temperature:-40°C~+70°C
Safety standard:IEC61347-2-13 2014+A1 IEC 61347-1 2015+A1
Output voltage:DC12V 24V 48V
Size:183*51*32mm
Key attributes
Application
Led Lighting, Outdoor Lighting, Street Light
Input Voltage
AC220-240V
Output Power
200W
Output Current
4.17A/8.33A/16.7A
Type
IP67 Waterproof
Energy Transfer
AC-DC
Output Type
Single
Dimming Mode
Non-dimmable
Dimming
None
Efficiency
≥93%
Case Material
Aluminum
Warranty(Year)
2/3-Year
Lighting solutions service
Lighting And Circuitry Design, Project Installation, Other
Place of Origin
Guangdong, China
Model Number
PV-12200E/PV-24200E/PV-48200E
Brand Name
Pt POWER
Output Frequency
50/60Hz
Product Weight（kg）
0.56
Waterproof Level(IP Rate)
IP67
Certification
CB/CE/SAA/RoHS
OEM/ODM
Yes
Type
Constant Voltage LED driver
Protection
Short circuit, overload protection
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG 2KVAC O/P-FG:1.5KVAC
Working temperature
-40°C~+70°C
Safety standard
IEC61347-2-13 2014+A1 IEC 61347-1 2015+A1
Output voltage
DC12V 24V 48V
Size
183*51*32mm
Packaging and delivery
Selling Units
Single item
Single package size
25X7X4 cm
Single gross weight
0.800 kg
Lead time
Product descriptions from the supplier
FREE shipping capped at £20
2 - 499 pieces
£1016
≥ 500 pieces
£903
Variations
Select now输入电压（伏）: AC220-240V
AC220-240V
Lamp Power(W): 200
200
输出电压
12V(EMC Version)
24V(Non-EMC Version)
48V(Non-EMC Version)
