Attributes
2/3-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

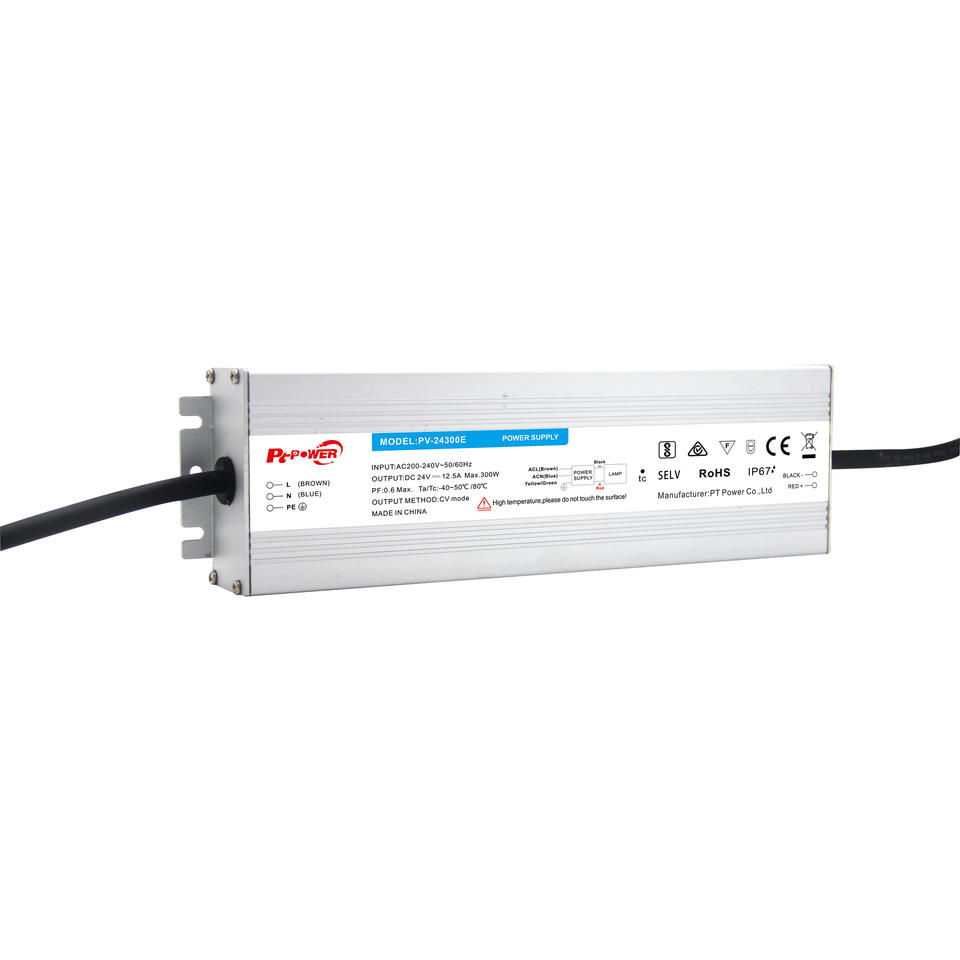

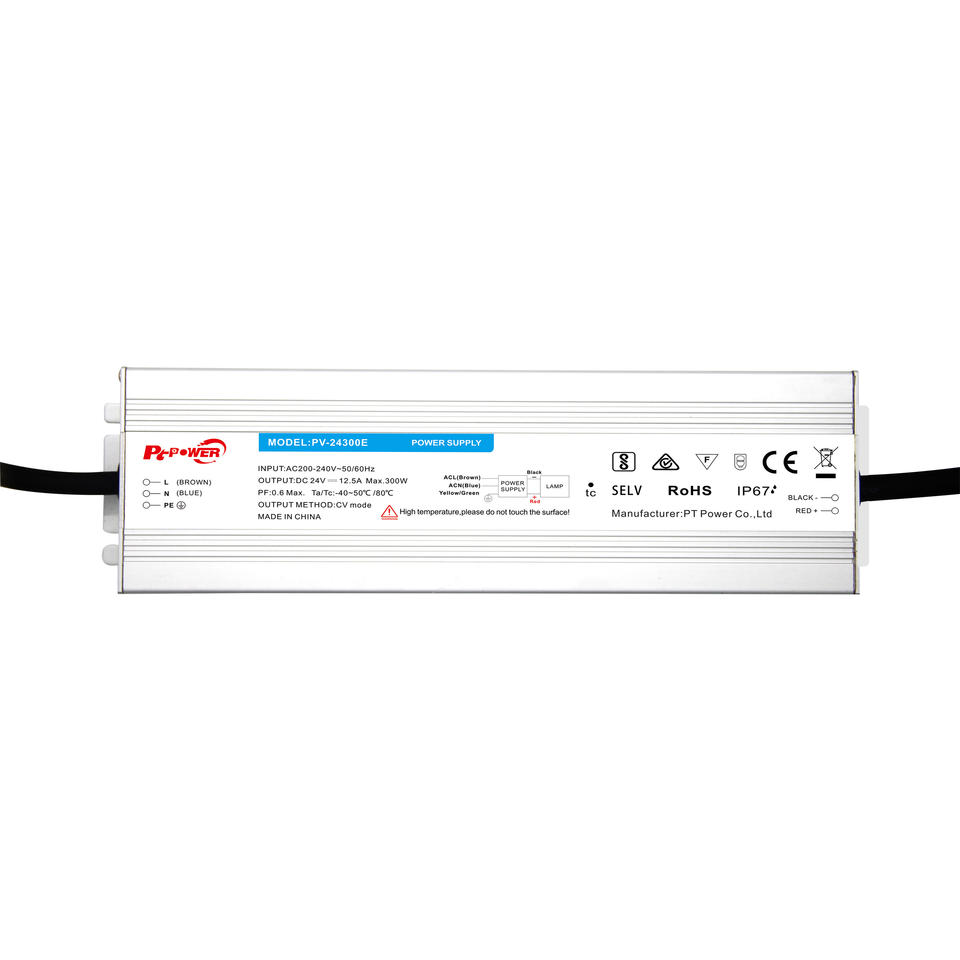

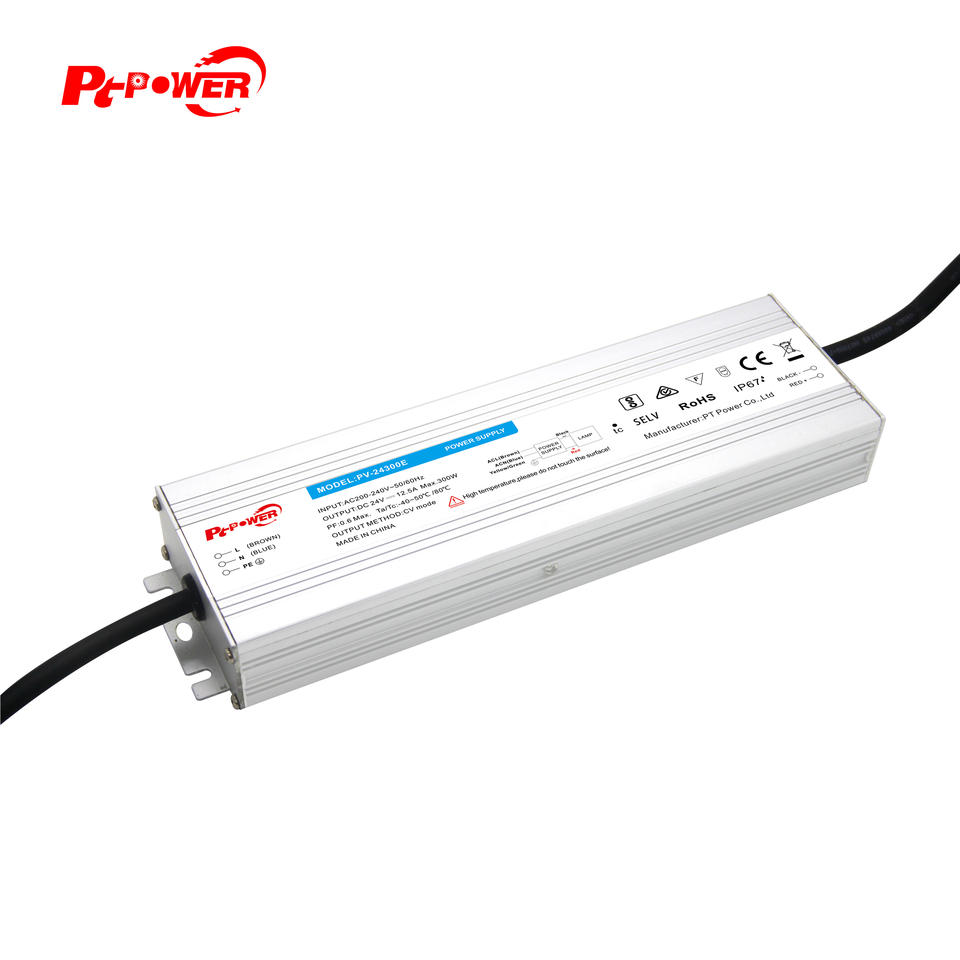

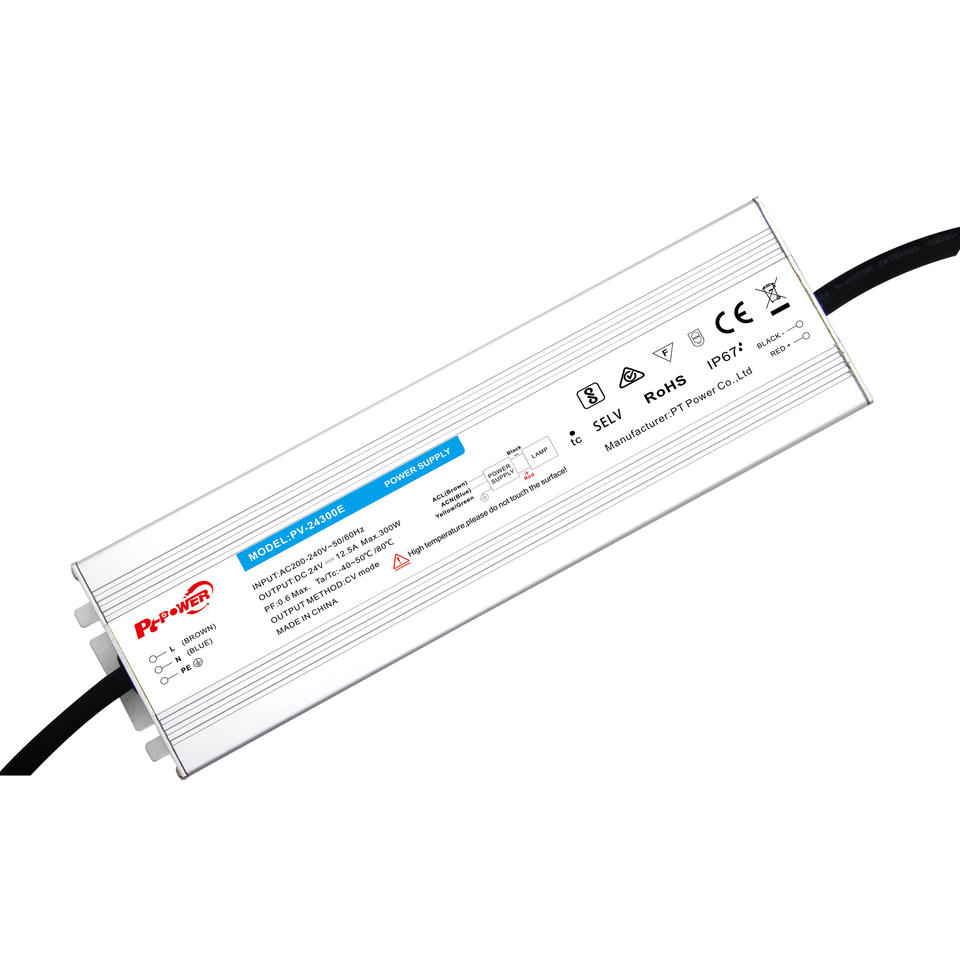

PV-12300E/PV-24300EModel Number
Pt POWERBrand Name
Led Lighting, Outdoor Lighting, Street LightApplication
AluminumCase Material
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥92%
Energy Transfer:AC-DC
Input Voltage:AC220-240V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:6.25A/12.5A/25A
Output Frequency:50~60Hz
Output Power:300W
Output Type:Single
Product Weight（kg）:1
Topology:Ac-Dc Converter
Type:IP67 Waterproof
Type:Constant Voltage LED driver
Waterproof Level(IP Rate):IP67
Certification:CB/CE/SAA/RoHS
OEM/ODM:Yes
Size:214*64*32mm
Protection:Short circuit, overload protection
Withstand voltage:I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature:-40°C~+70°C
Safety standards:IEC61347-2-13 2014+A1 IEC61347-1 2015+A2
Output voltage:DC12V/24V
