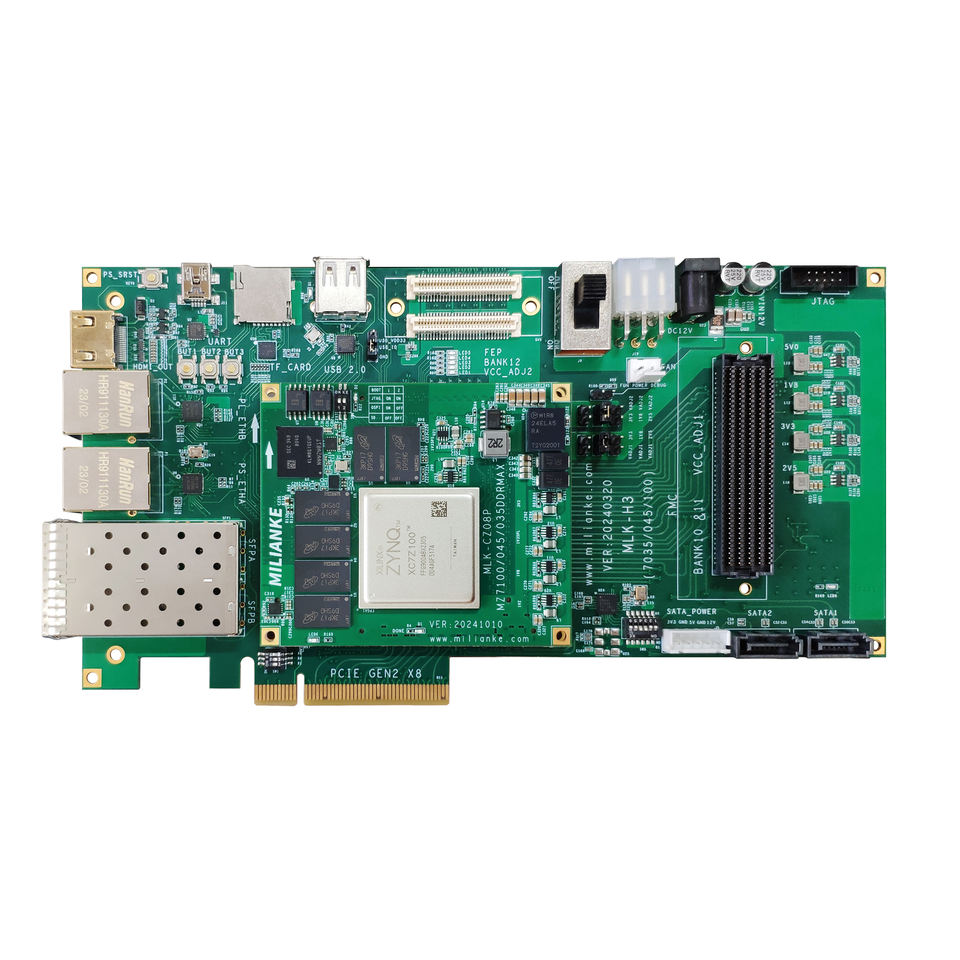

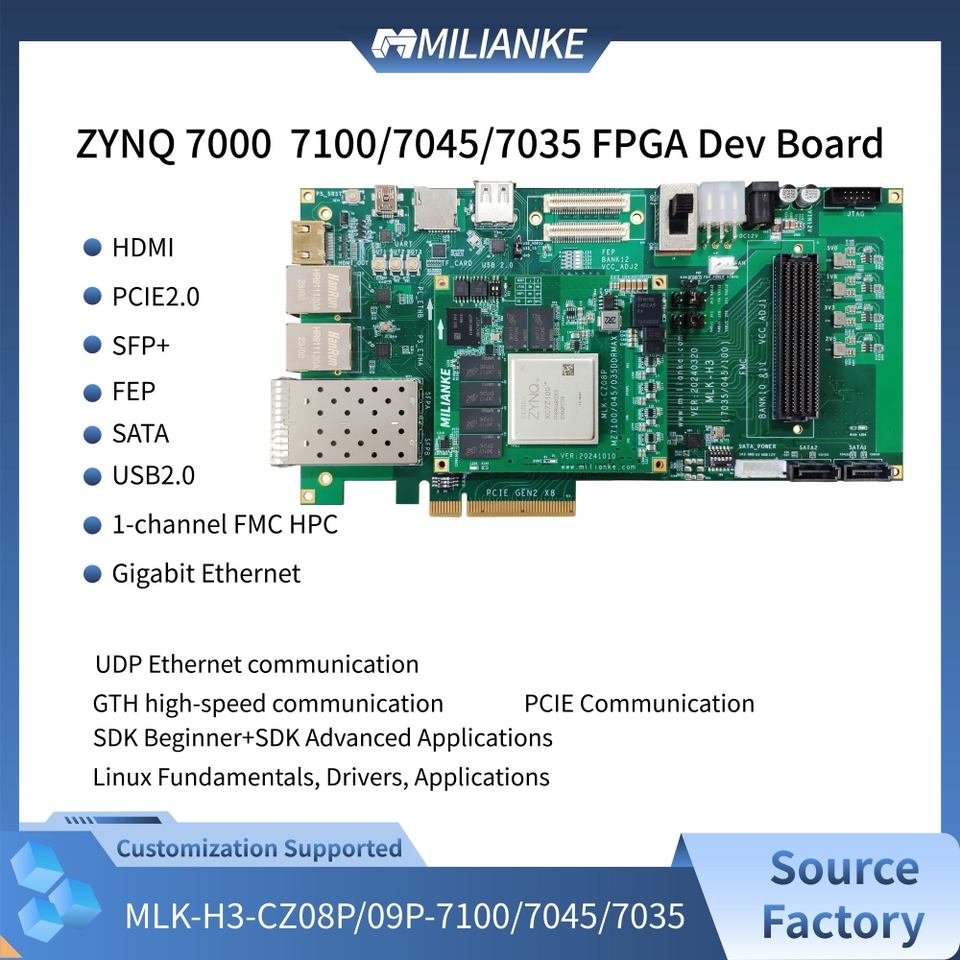

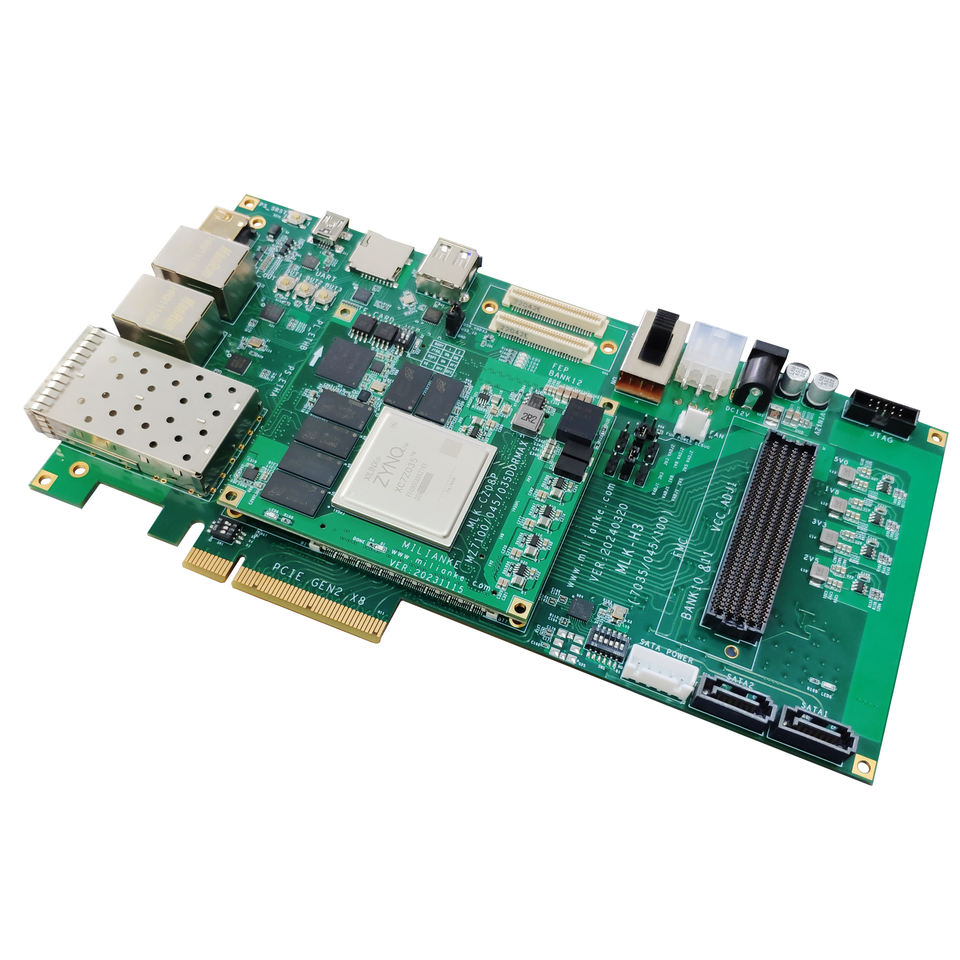

High Performance ZYNQ 7000 Development Board With OS and High-Speed PCIe for Industrial Automation Signal Processing MLK-H3-CZ08

No reviews yet
£42528-55442
Minimum order quantity: 2 pieces
Select now

Specification

H3-CZ08P-7035
H3-CZ08P-7045
H3-CZ08P-7100
H3-CZ09P-7035
H3-CZ09P-7045
H3-CZ09P-7100

Key attributes

Type

Development Board

Core Processor

Cortex-A9

Operating System

Linux

Interface

/

Description

Xilinx ZYNQ7000 series development boards

Model Number

MLK-H3-CZ08P/09P-7035/7045/7100

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

Main Purpose
Not Applicable
Embedded
Yes
Outputs and Type
Not Applicable
Operating System
Linux
Board Type
Evaluation Platform
Communication Interface
I2C, uart, USB, ETH, PCIE, FEP, FMC, SATA
Type
Development Board
Core Processor
Cortex-A9
Interface
/
Description
Xilinx ZYNQ7000 series development boards
Model Number
MLK-H3-CZ08P/09P-7035/7045/7100
Place of Origin
Jiangsu, China
Brand Name
MILIANKE
Series
ZYNQ7000
Mfg. Date Code
/
Package
FFG900
Function
Medical equipment/Industrialautomation
Utilized IC / Part
/
Number of A/D Converters
/
Number of Bits
/
Sampling Rate (Per Second)
/
Data Interface
/
Input Range
/
Amplifier Type
/
Output Type
/
Max Output Power x Channels @ Load
/
Voltage - Supply
12V/3A
Power - Output
/
Voltage - Output
/
Current - Output
/
Voltage - Input
/
Frequency - Switching
/
Platform
/
Mounting Type
/, PCB
Current - Output / Channel
/
Features
/
Channels per IC
/
Regulator Type
/
-3db Bandwidth
/
Current - Supply (Main IC)
/
Voltage - Supply, Single/Dual (±)
/
Sensor Type
/
Sensitivity
/
Module/Board Type
/
Maximum Number Of IC's
/
Maximum Time
/
Sensing Range
/

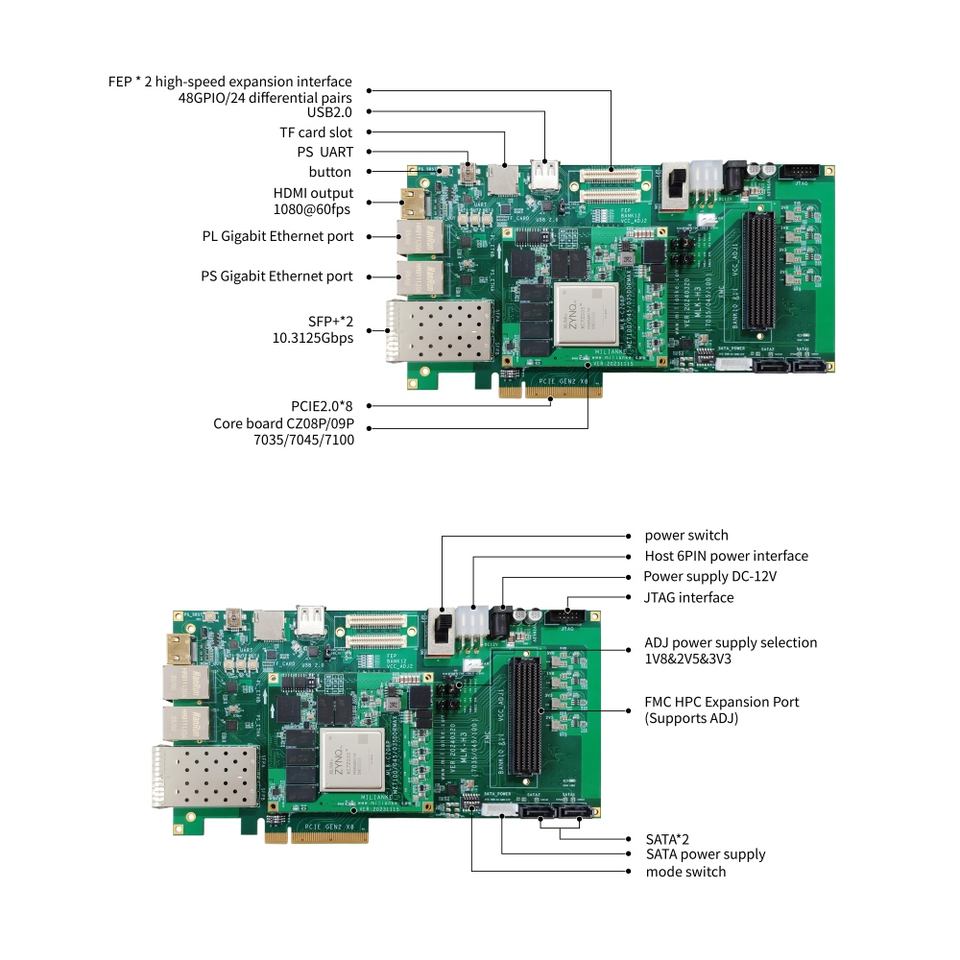

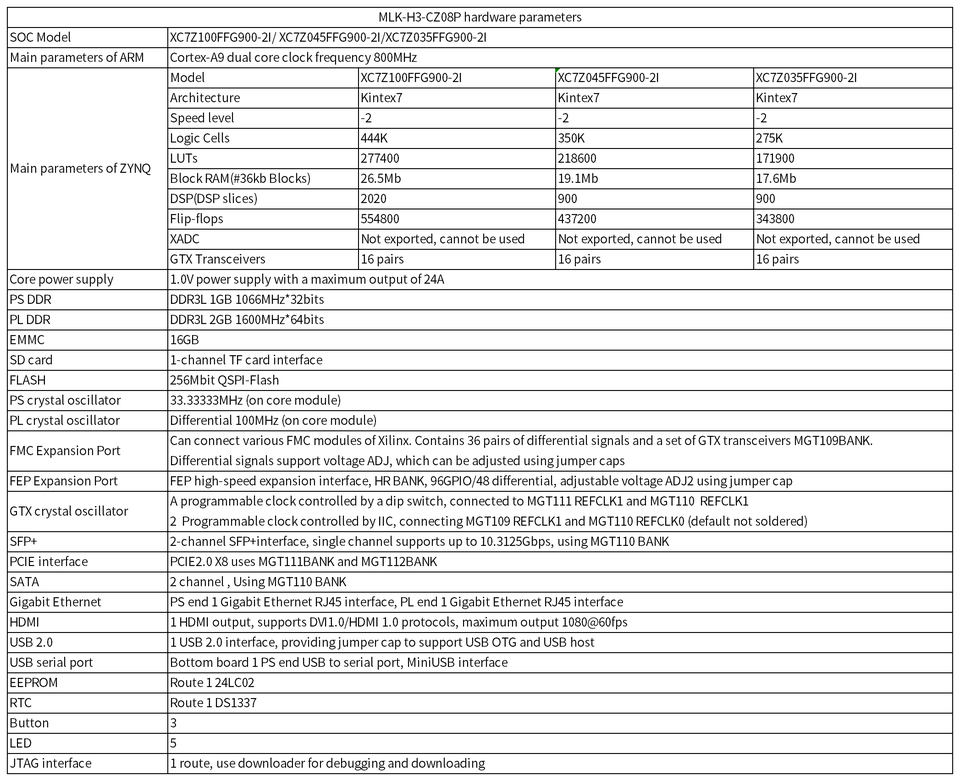

PS DDR3
1GB, with a data bandwidth of up to 1066MHz*32bit
PL DDR3
2GB,with a data bandwidth of up to 1600MHz*64bit
EMMC
8GB/16GB
FLASH
256Mbit QSPI FLASH
Ethernet
1-channel Gigabit Ethernet at PS/PL end
FMC HPC
FMC HPC expansion port (supporting ADJ), 36 pairs of differential IO
FEP
FEP*2,48GPIO/24 pairs of differential(supporting ADJ)
PCIE
1-channel PClE2.0*8 interface
SFP+
2-channel SFP+,A single lane can support 10.3125Gbps
SATA
2-channel SATA interface
