Complies with EU standards
Attributes
CNC Routermachine type
3number of axes
SingleNo. of Spindles
380 V, 200 Vvoltage
3 Yearswarranty
Competitive Pricekey selling points
core components:Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
machinery test report:Provided
video outgoing-inspection:Provided
cnc or not:CNC
place of origin:Shandong, China
weight (kg):2000
range of spindle speed(r.p.m):6000 - 24000
positioning accuracy (mm):0.01
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):3.5
brand name:BCAMCNC
dimension(l*w*h):3500*2000*1550mm
Accessory Type:Dust collection, Scanner

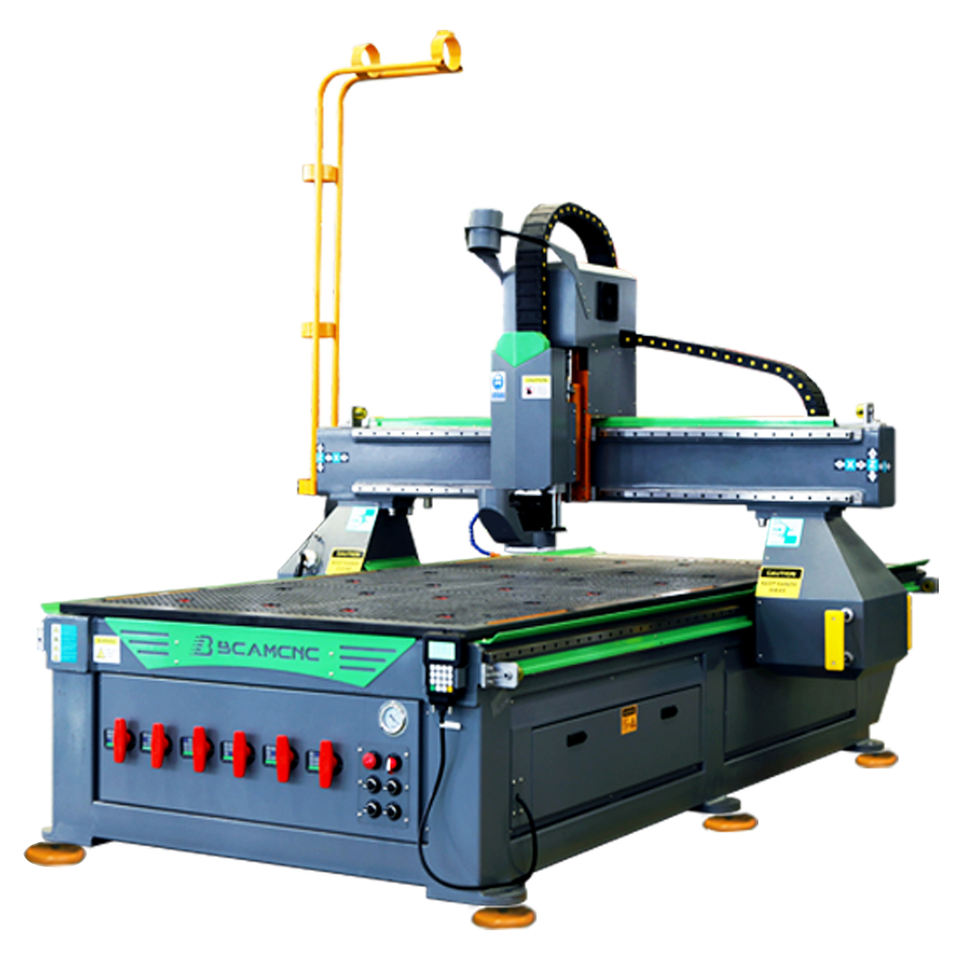

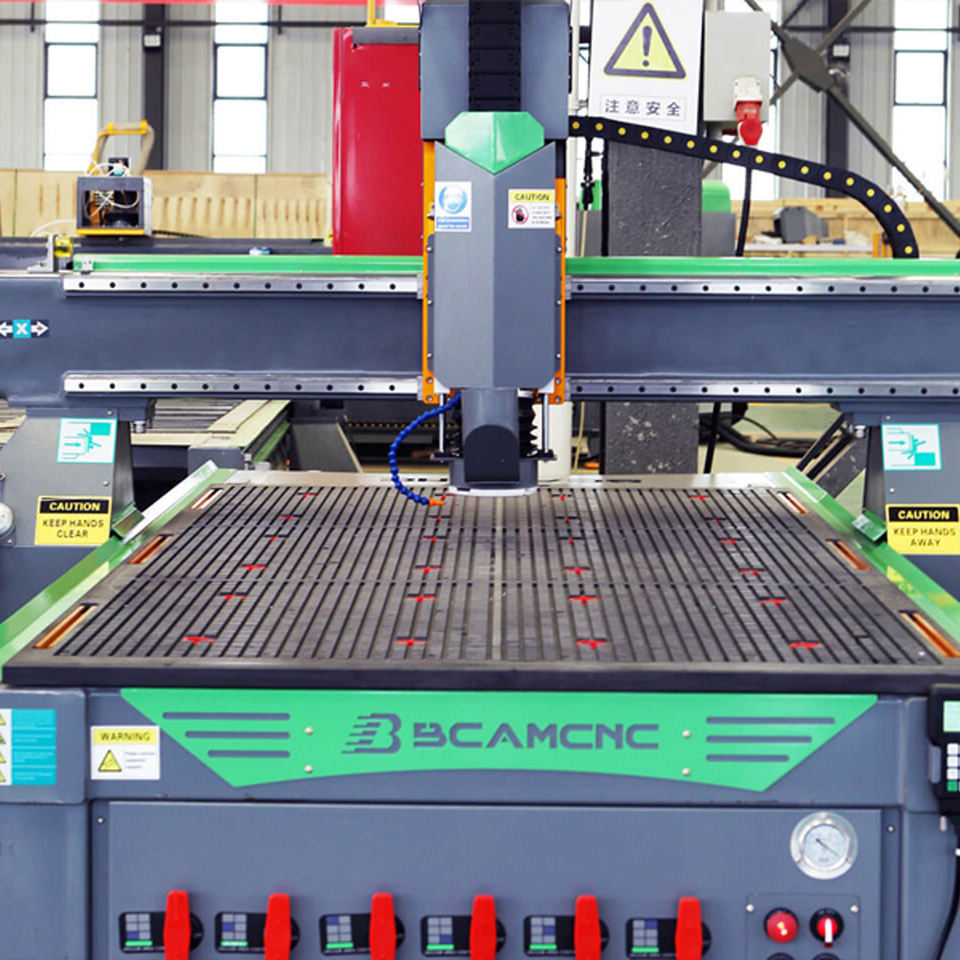

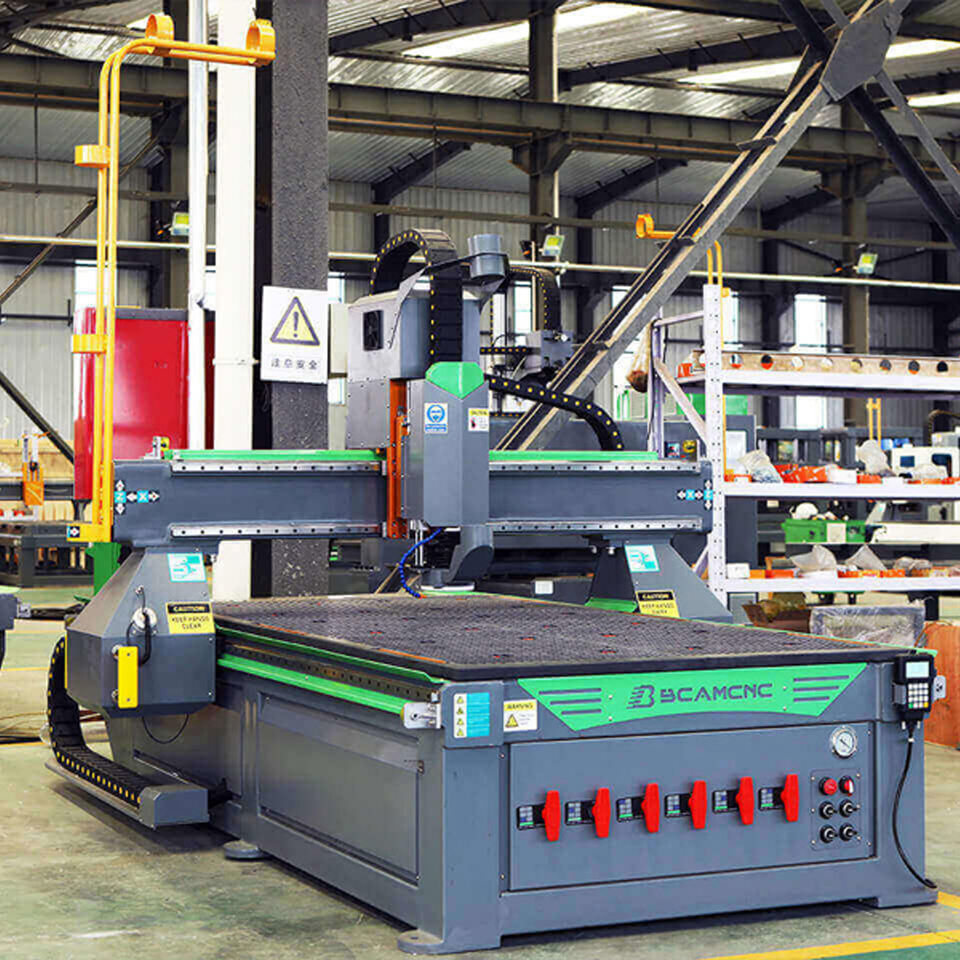

Product name:Woodworking Cnc Router Machine
Application:FOAM MDF WOOD ACRYLIC ALUMINUM
Keywords:CNC Carving Machine
Control system:NcStudio Control System
Spindle:3/4.5/5.5kw/6kw Spindle
Function:Panel Furniture Automated Cutting
Working area:1300x2500x200mm
Motor:Japan Yaskawa Servo Motor
Spindle power:3.5KW / 4.5KW / 6KW
Name:Wood Carving Machine Cnc Router
Working table:Vacuum Table + Tslot
Transmission:Taiwan TBI Ball Screw
Model:1325 Router Machine
Type:Cnc Router Cutting Machine
After-sales Service Provided:Service Machinery Overseas
Inverter:Delta Inverter
Working Voltage:AC220V/AC380/50HZ/60HZ
Command Language:G Code
Software:Ucancam / ArtCam/TYPE3/Power Mill
Running Environment:Temperature: -20℃~45℃ Relative Humidity: 5%~75%
