Attributes
Horizontaltype
550, 750, 1000, 1500, 2000max. length of workpiece (mm)
1000max. weight of workpiece(kg)
Singleno. of spindles
280travel (x axis)(mm)
2000travel (z axis)(mm)
positioning accuracy (mm):±0.005
repeatability (x/y/z) (mm):±0.005
place of origin:Jiangsu, China
warranty:1 Year
machining capacity:Medium Duty
width of bed (mm):400
number of axes:2
dimension(l*w*h):2650*1650*1820
brand name:Minnuo
model number:CK6150
voltage:Customized
cnc control system:FANUC
tool post stations:4, 6, 8
weight:2650
key selling points:High-Accuracy
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:1 - 1800 r.p.m
cutting torque:10

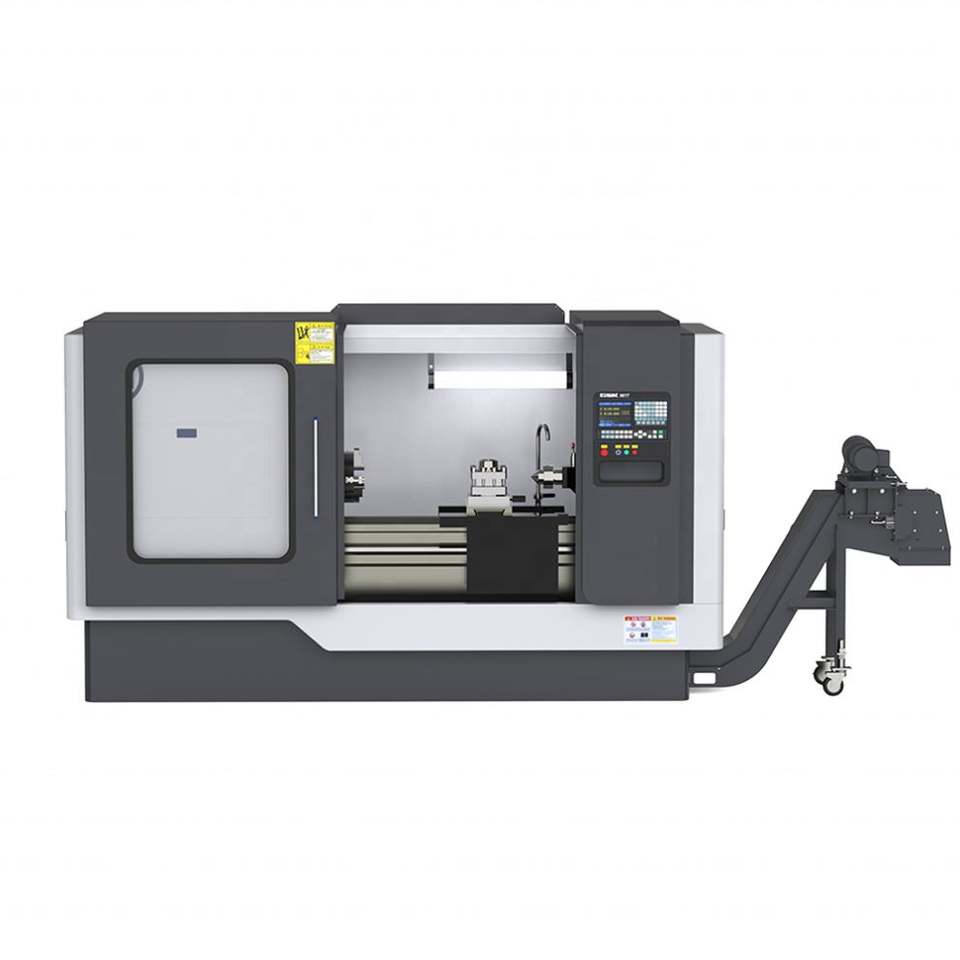

Product name:Cnc Lathe Turning Machine CK6150 Cnc Wood Lathe
CNC Controller:FANUC
CNC or Not:CNC Lathe Machine
Positioning Accuracy (mm):±0.005
Repeatability (X/Y/Z) (mm):±0.005
X axis rapid traverse:6m/min
Z axis rapid traverse:8m/min
X axis servo motor torque:5/7.5 N.m
Z axis servo motor torque:7.5/10/15N.m
Guide way type:Hard rail
Selling Units:Single item
