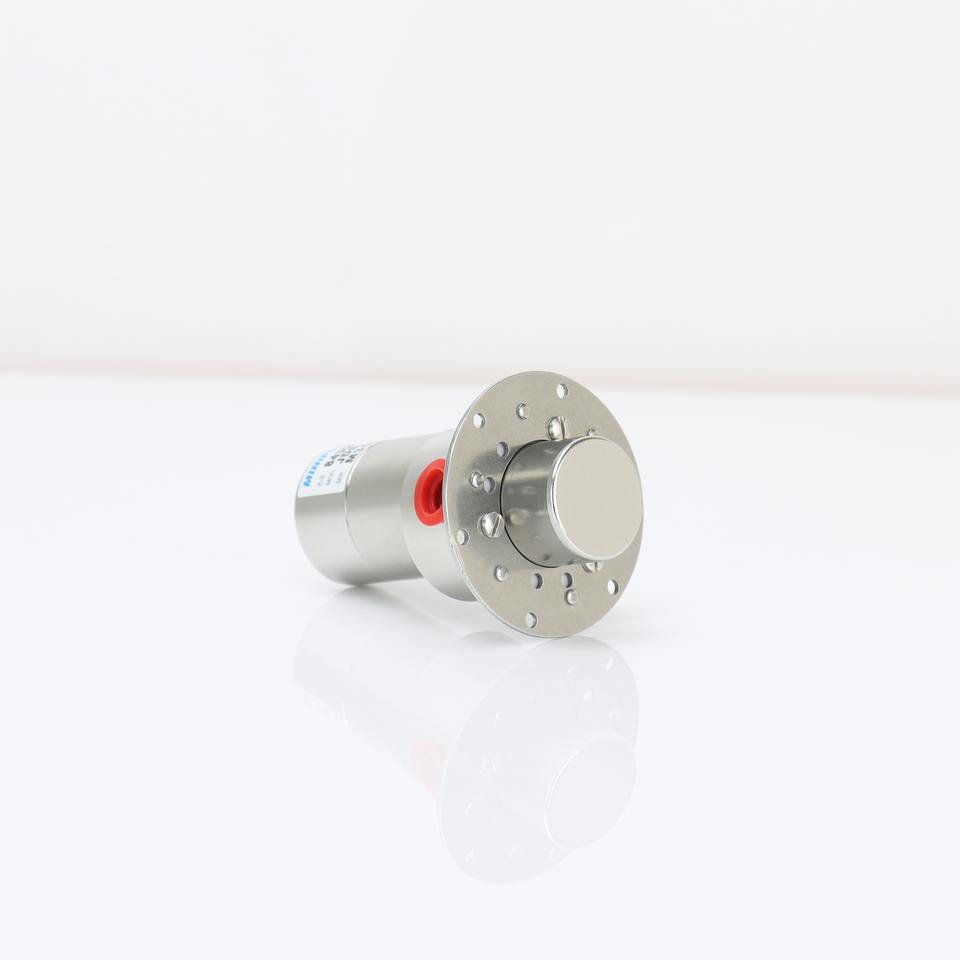

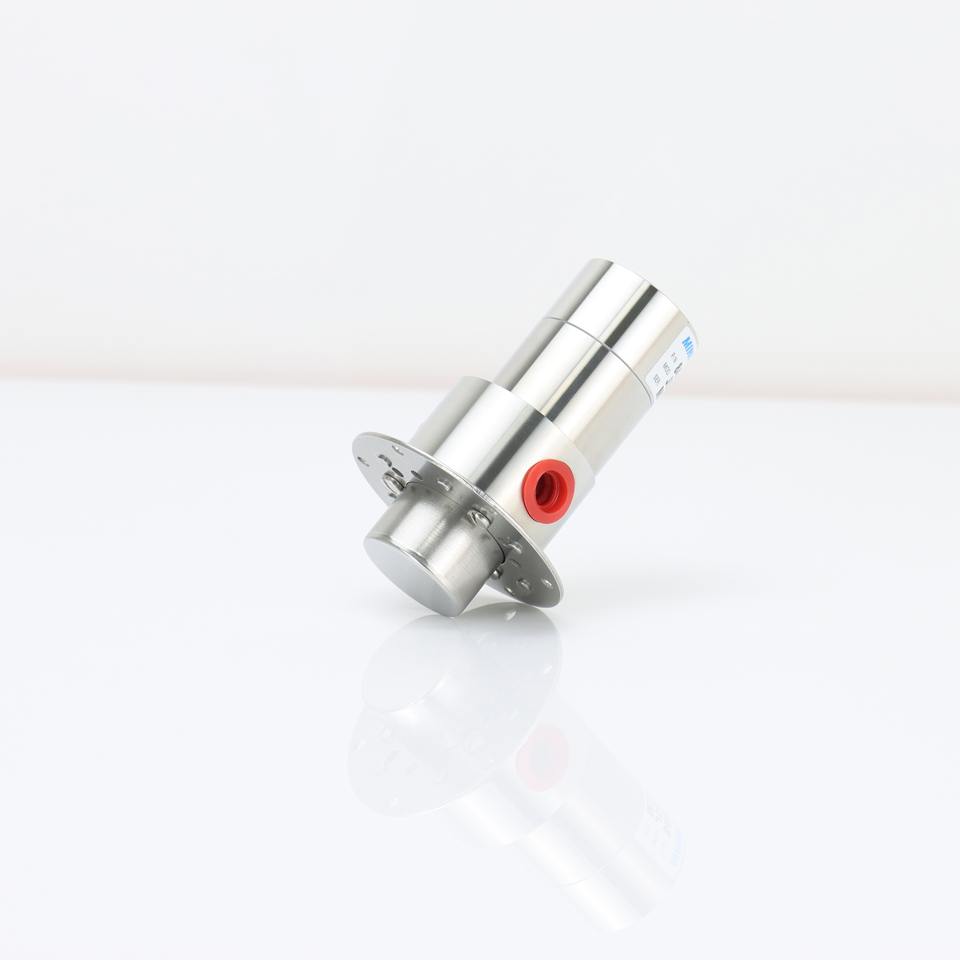

High Precision Compact Positive Displacement Pump with Short Rotor for T218 Double Outlet Filling

No reviews yet
DOCOD PRECISION GROUP LIMITED
1 yr
HK

Attributes

Otherapplication
0.25Mpapressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Chinaplace of origin
Electricpower source
structure:ink pump
model number:GQA125ESLD01
Applicable temperature:-40 to 105 degrees Celsius
Displacement:0.32mL/rev
Max Flow Rate:6L/min(water as medium)
Max Pressure:0.25MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:70W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:Standard configuration NPT1/4-18(customizable)
Compatible Drive:Brushless DC, Stepper, Servo
Max. Flow Rate:6L/min(water as medium)
Max. Pressure:0.25MPa
Viscosity Range:0.5-1500CP
Shaft Material:Stainless steel
Temperature resistance:-40 to 105 degrees Celsius

Key attributes

application
Other
pressure
0.25Mpa
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
China
power source
Electric
structure
ink pump
model number
GQA125ESLD01
Applicable temperature
-40 to 105 degrees Celsius
Displacement
0.32mL/rev
Max Flow Rate
6L/min(water as medium)
Max Pressure
0.25MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration NPT1/4-18(customizable)
Compatible Drive
Brushless DC, Stepper, Servo
Max. Flow Rate
6L/min(water as medium)
Max. Pressure
0.25MPa
Viscosity Range
0.5-1500CP
Shaft Material
Stainless steel
Temperature resistance
-40 to 105 degrees Celsius

Packaging and delivery

Selling Units
Single item
Show more

Lead time

Product descriptions from the supplier

1 - 99 pieces
$16108
100 - 499 pieces
$12886
>= 500 pieces
$10738
