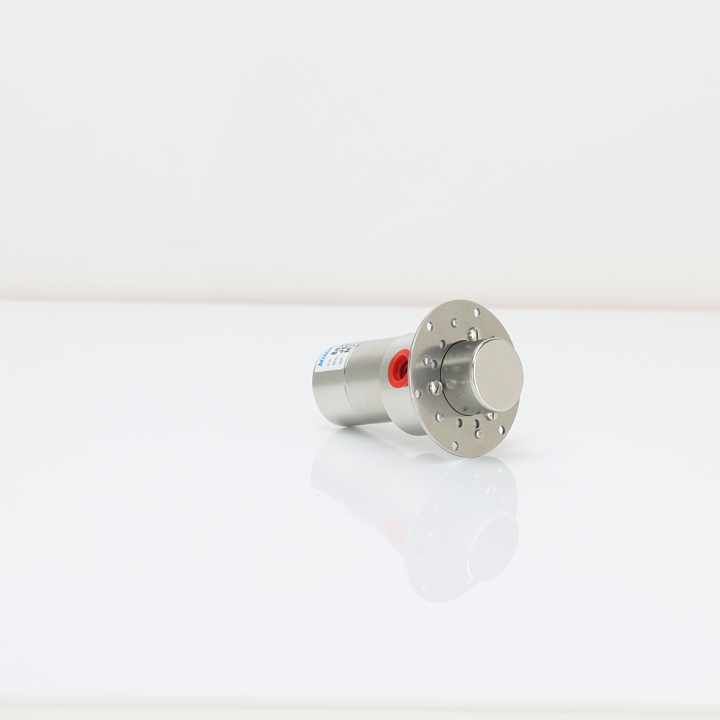

High Precision Corrosion Resistant Micro Gear Pump with Short Rotor for T223 Double Outlet Filling
No reviews yet
Attributes
Otherapplication
ink pumpstructure
7.3L/minMax Flow Rate
0.05-1.2MPa (preset value0.7MPa)Max Pressure
Electricpower source
-40 to 105 degrees CelsiusApplicable temperature
Displacement:1.75
Material:Stainless Steel
motor:Servo Motor, Brushless DC Motor, Stepper Motor
warranty:1 Year
customized support:OEM, ODM, OBM
pressure:0.35MPa
model number:GQA175ESLD01
place of origin:China
Nominal Displacement:1.75ml/rev
Max. Flow Rate:7.3L/min(water as medium)
Max. Pressure:0.35MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4200rpm
Rated Voltage:24VDC
Rated Power:70W
Gear Material:PEEK
Pump Body Material:SUS316L
Shaft Material:Stainless steel
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
DOCOD PRECISION GROUP LIMITED
HK1 yr on Alibaba.com
Response Time ≤ 5hOn-time delivery rate ≥ 100%
Key attributes
application
Other
structure
ink pump
Max Flow Rate
7.3L/min(1.93gpm)
Max Pressure
0.05-1.2MPa (preset value0.7MPa)
power source
Electric
Applicable temperature
-40 to 105 degrees Celsius
Displacement
1.75
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
0.35MPa(50.76psi)
model number
GQA175ESLD01
place of origin
China
Nominal Displacement
1.75ml/rev
Max. Flow Rate
7.3L/min(water as medium)
Max. Pressure
0.35MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4200rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Shaft Material
Stainless steel
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
£12346
100 - 499 pieces
£9877
>= 500 pieces
£8231
Variations
Select nowFlow Rate: 500-4200rpm
500-4200rpm
maximum head: other
other
type: ink pump
ink pump
voltage
24VDC
