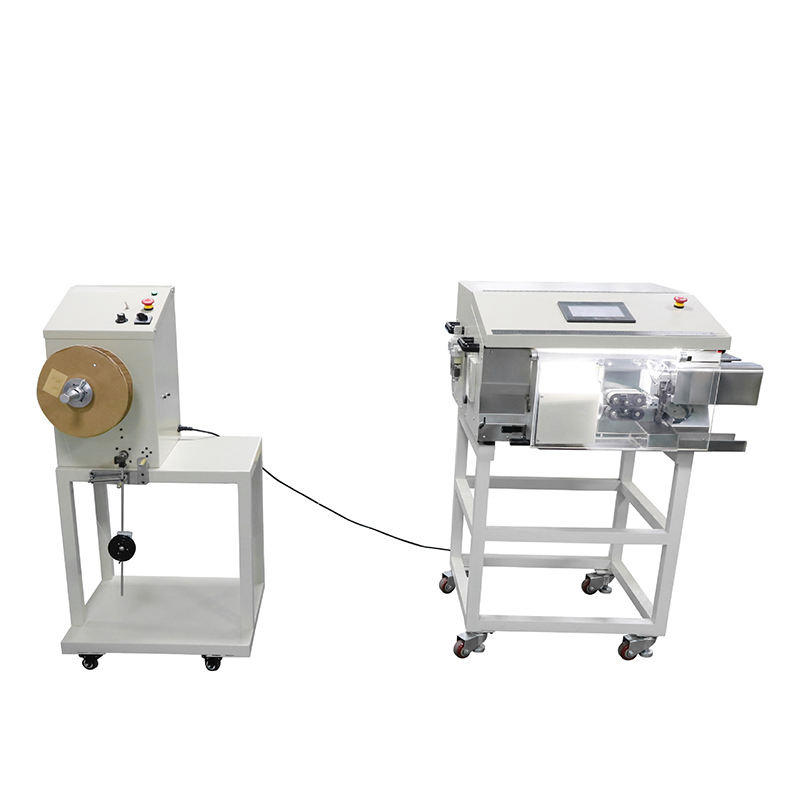

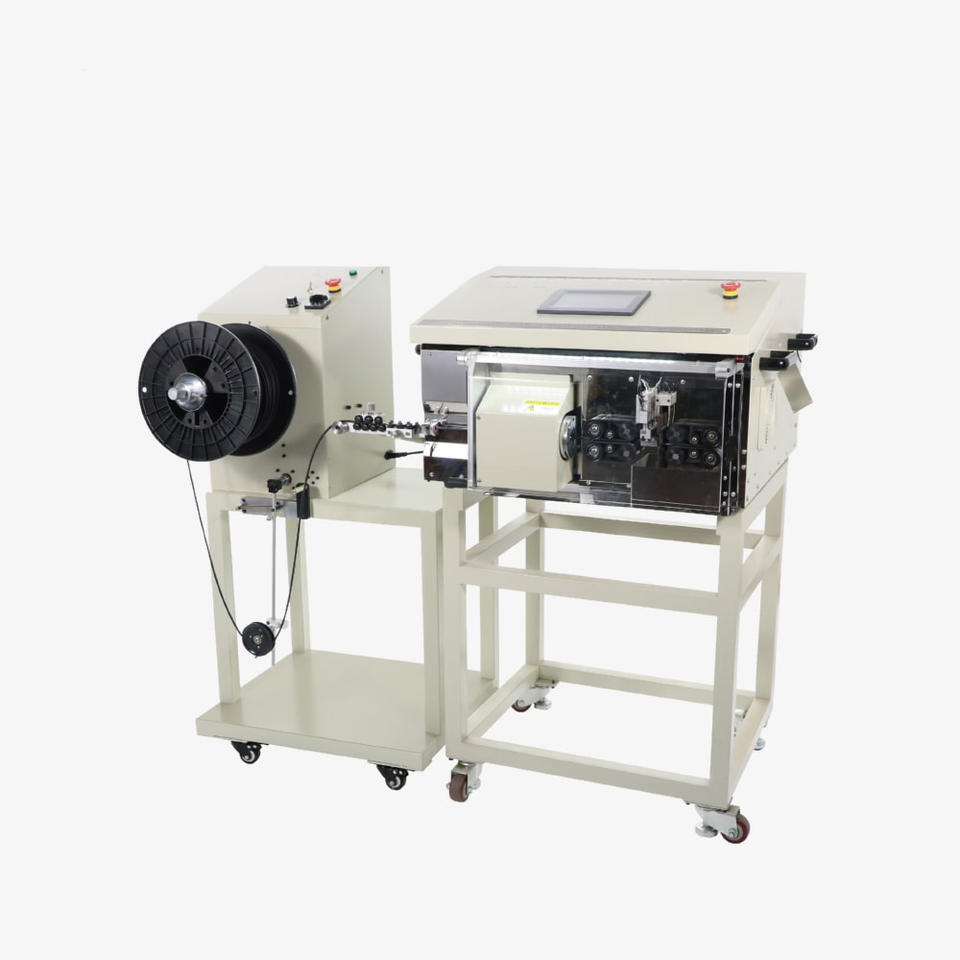

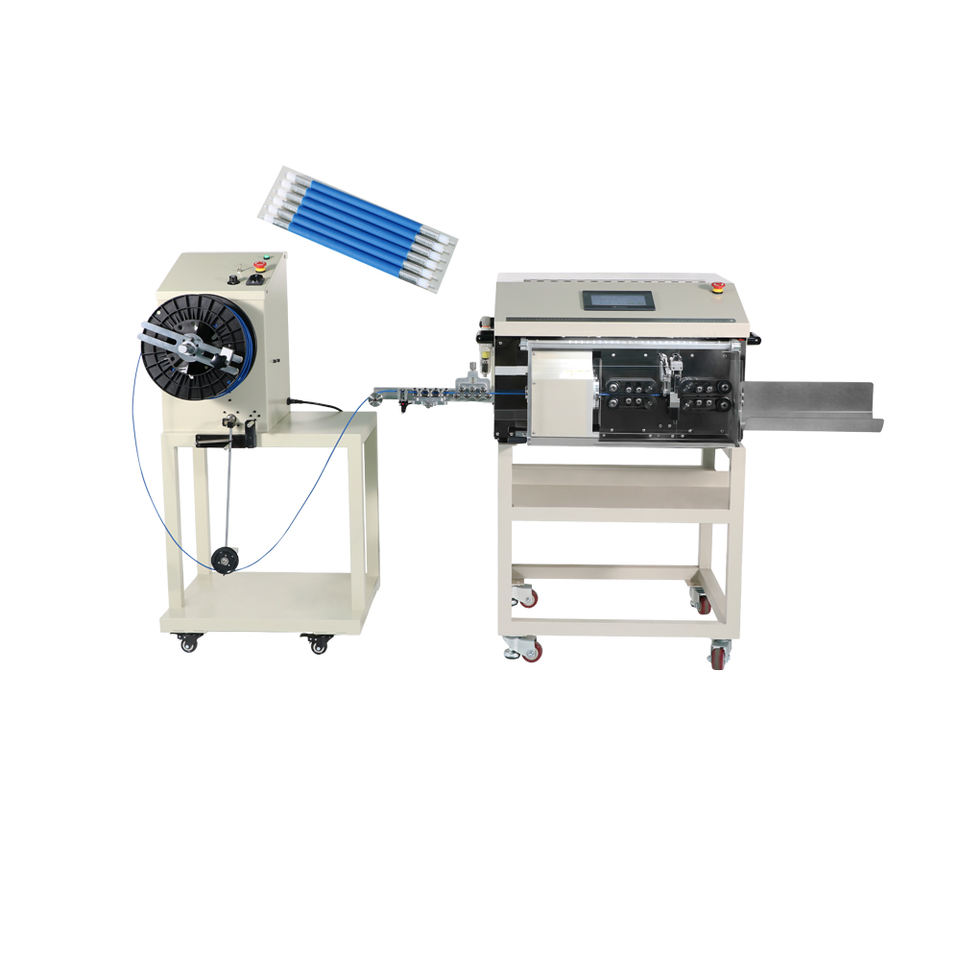

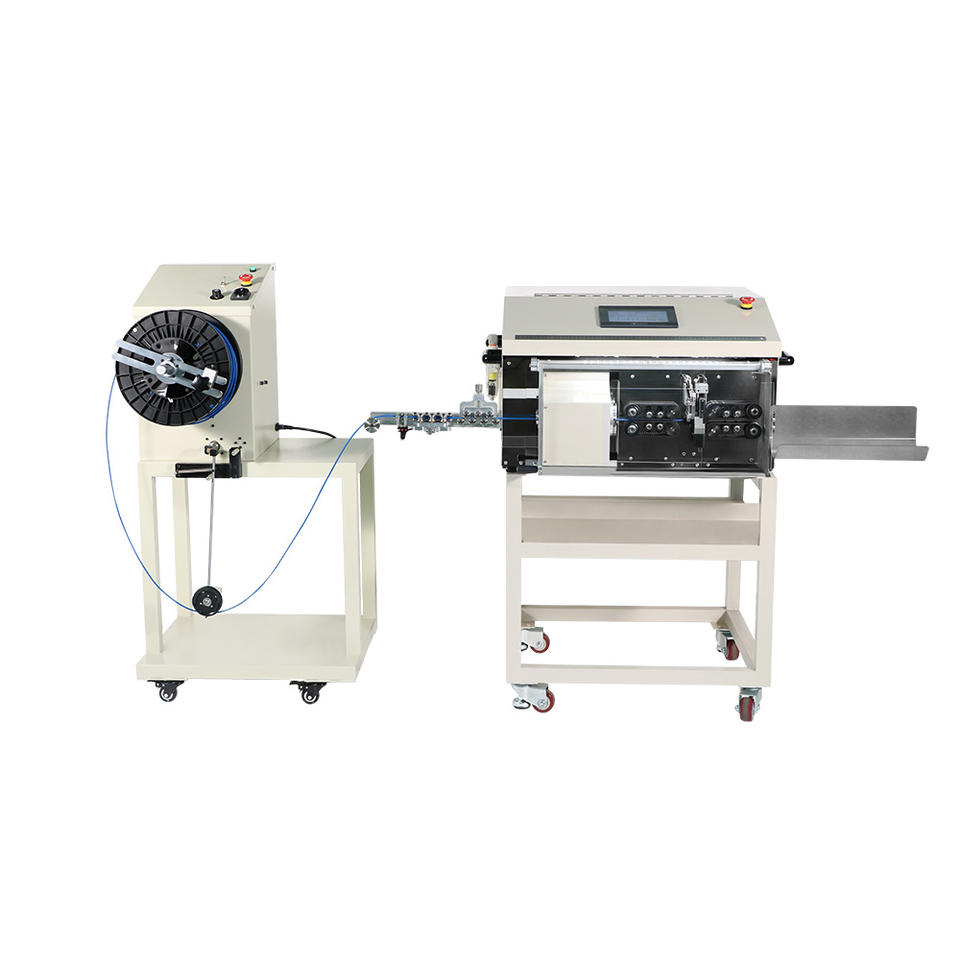

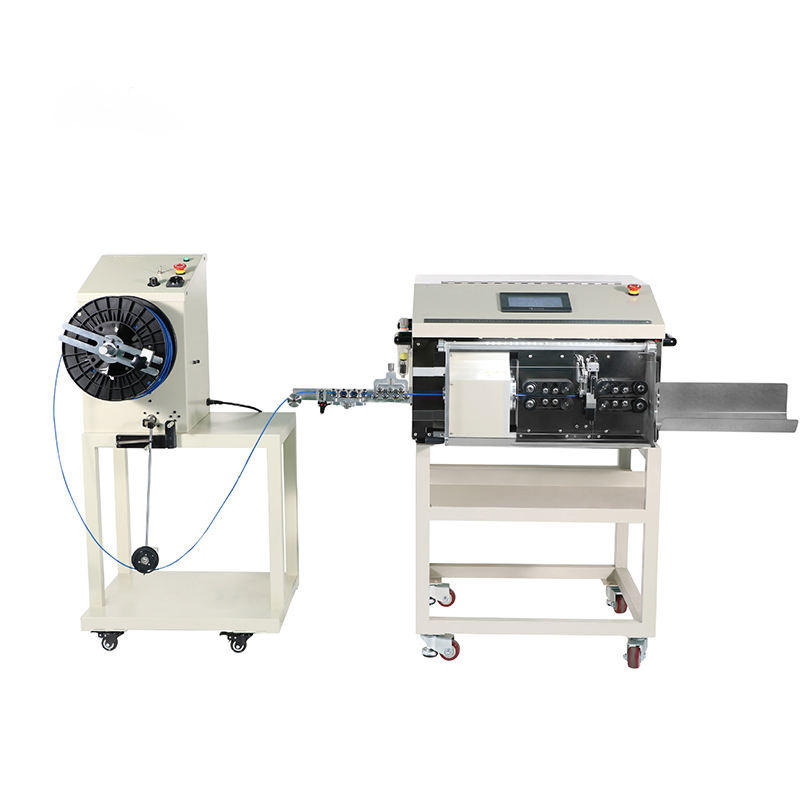

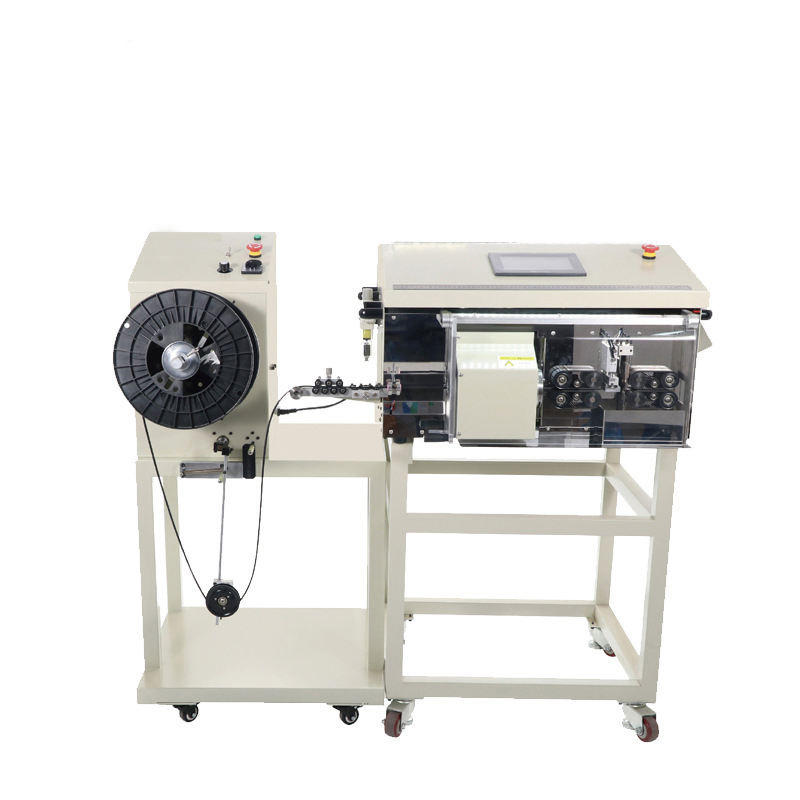

High Precision Full Automatic Coaxial Cable Stripping Machine with ±0.1mm Stripping Accuracy
No reviews yet
SINRAD TECHNOLOGY CO., LIMITED
HK3 yrs on Alibaba.com
5/5.0(9 reviews)Reorder rate: 20%Response Time ≤ 3hOn-time delivery rate ≥ 95%
Attributes
Strippingusage
AutomaticOperating Mode
120Weight (KG)
Guangdong, Chinaplace of origin
Sinradbrand name
SR-9610Smodel number
Dimension(L*W*H):790*730*400mm
Model:SR-9610S
Display method:touchscreen
Applicable wires:Coaxial Cable
Wire Cutting Capacity:50mm-99999mm
Cutting wire diameter range:1.0-6.0mm (max 8.5mm with different blade heads)
Stripping length:Max 100mm on the right, Max 45mm on the left
Cutting accuracy:Length accuracy ±1‰
Stripping precision:±0.1mm (taking PVC outer insulation as an example)
Cutting depth setting unit:0.01mm
Maximum number of stripping layers:6 layers
Display interface:153mm*85mm (Chinese/English) LCD
Power supply:AC220V/110V 50/60HZ
Drive method:Motor/Ball Screw Drive
Stripping method:Rotary blade + cutting blade
Knife material:Imported tungsten steel + imported high-speed steel
Storage capacity:40 types of processing parameter data
Production efficiency:350-900pcs/h (depending on material)
Blade material:Imported tungsten steel + imported high-speed steel
Key attributes
usage
Stripping
Operating Mode
Automatic
Weight (KG)
120
place of origin
Guangdong, China
brand name
Sinrad
model number
SR-9610S
Dimension(L*W*H)
790*730*400mm
Model
SR-9610S
Display method
touchscreen
Applicable wires
Coaxial Cable
Wire Cutting Capacity
50mm-99999mm
Cutting wire diameter range
1.0-6.0mm (max 8.5mm with different blade heads)
Stripping length
Max 100mm on the right, Max 45mm on the left
Cutting accuracy
Length accuracy ±1‰
Stripping precision
±0.1mm (taking PVC outer insulation as an example)
Cutting depth setting unit
0.01mm
Maximum number of stripping layers
6 layers
Display interface
153mm*85mm (Chinese/English) LCD
Power supply
AC220V/110V 50/60HZ
Drive method
Motor/Ball Screw Drive
Stripping method
Rotary blade + cutting blade
Knife material
Imported tungsten steel + imported high-speed steel
Storage capacity
40 types of processing parameter data
Production efficiency
350-900pcs/h (depending on material)
Blade material
Imported tungsten steel + imported high-speed steel
Packaging and delivery
Selling Units
Single item
Single package size
110X100X80 cm
Single gross weight
150.000 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 set
£12,33580
Variations
Select nowCapacity (kg/h): 100 kg/h
100 kg/h
Power(W)
800W
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
