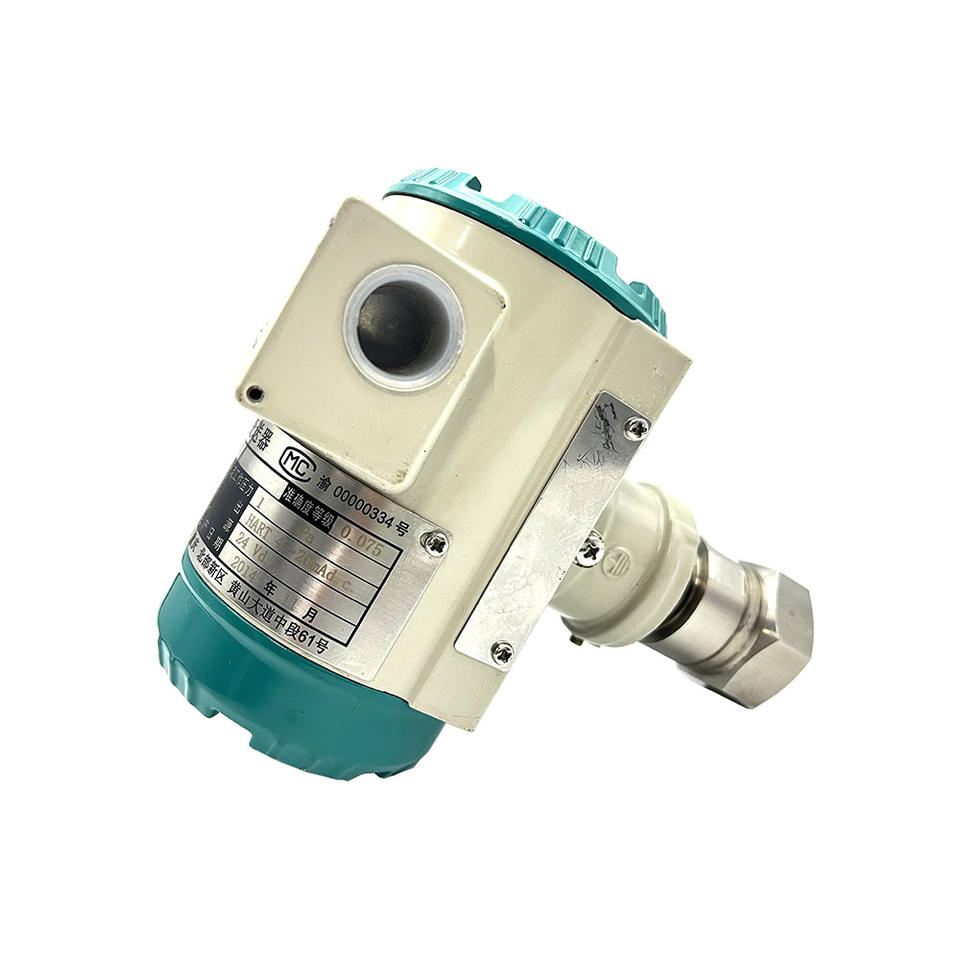

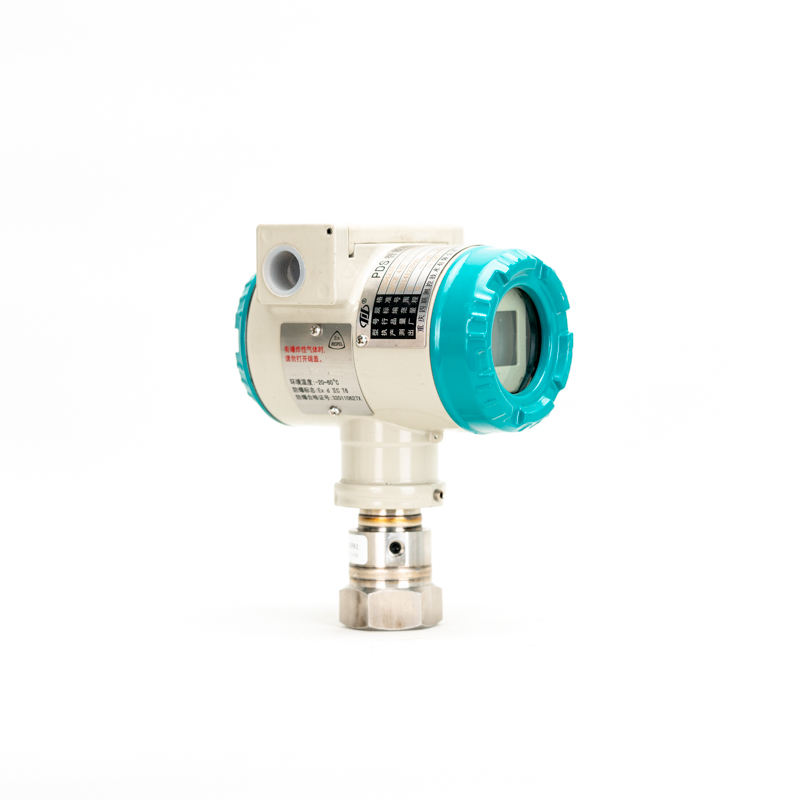

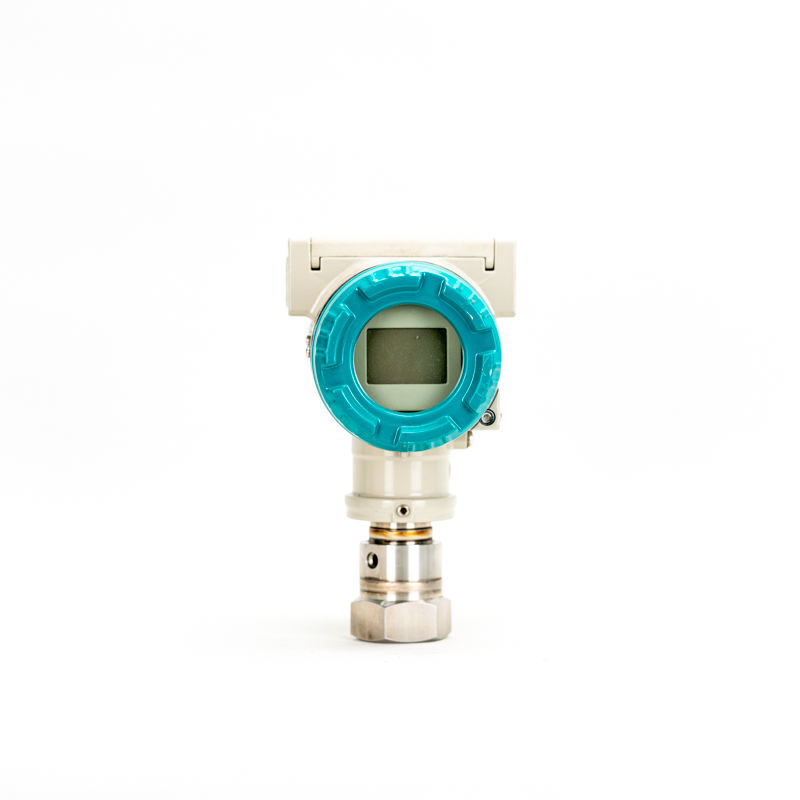

High Precision Hot Selling PDS 423 Intelligent Sensor System Pressure Sensor Water Pressure Transmitter
No reviews yet
Attributes
IP65, IP66Ingress Protection
pressure transmittertype
USAplace of origin
423model number
PDSbrand name
OEM, ODM, OBMcustomized support
material:Stainless Steel
warranty:3 Years

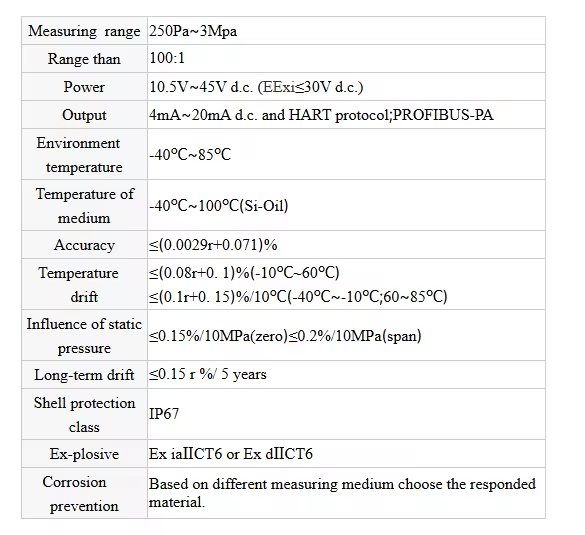

Measuring range:250Pa~3Mpa
Range than:100:1
Power:10.5V~45Vdc.(EExi≤30V d.c.)
Output:4mA~20mA d.c. and HART protocol;PROFIBUS-PA
Environment temperature:-40°C~85°C
Temperature of medium:-40°C~100°C(Si-0i1)
Accuracy:≤(0.0029r+0.071)%
Temperature drift:≤(0.08r+0.1)%(-10°C-60°C)≤(0.1r+0.15)%/10°C(-40°C~-10°C;60~85°C)
Influence of static pressure:<0.15%/10MPa(zero)≤0.2%/10MPa(span)
Long-term drift:<0.15 r %/ 5 years
Key attributes
Ingress Protection
IP65, IP66
type
pressure transmitter
place of origin
USA
model number
423
brand name
PDS
customized support
OEM, ODM, OBM
material
Stainless Steel
warranty
3 Years
Measuring range
250Pa~3Mpa
Range than
100:1
Power
10.5V~45Vdc.(EExi≤30V d.c.)
Output
4mA~20mA d.c. and HART protocol;PROFIBUS-PA
Environment temperature
-40°C~85°C
Temperature of medium
-40°C~100°C(Si-0i1)
Accuracy
≤(0.0029r+0.071)%
Temperature drift
≤(0.08r+0.1)%(-10°C-60°C)≤(0.1r+0.15)%/10°C(-40°C~-10°C;60~85°C)
Influence of static pressure
<0.15%/10MPa(zero)≤0.2%/10MPa(span)
Long-term drift
<0.15 r %/ 5 years
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 5 pieces
£44691
Variations
Select nowaccuracy: 0.5%FS
0.5%FS
pressure range
250Pa~3Mpa
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
