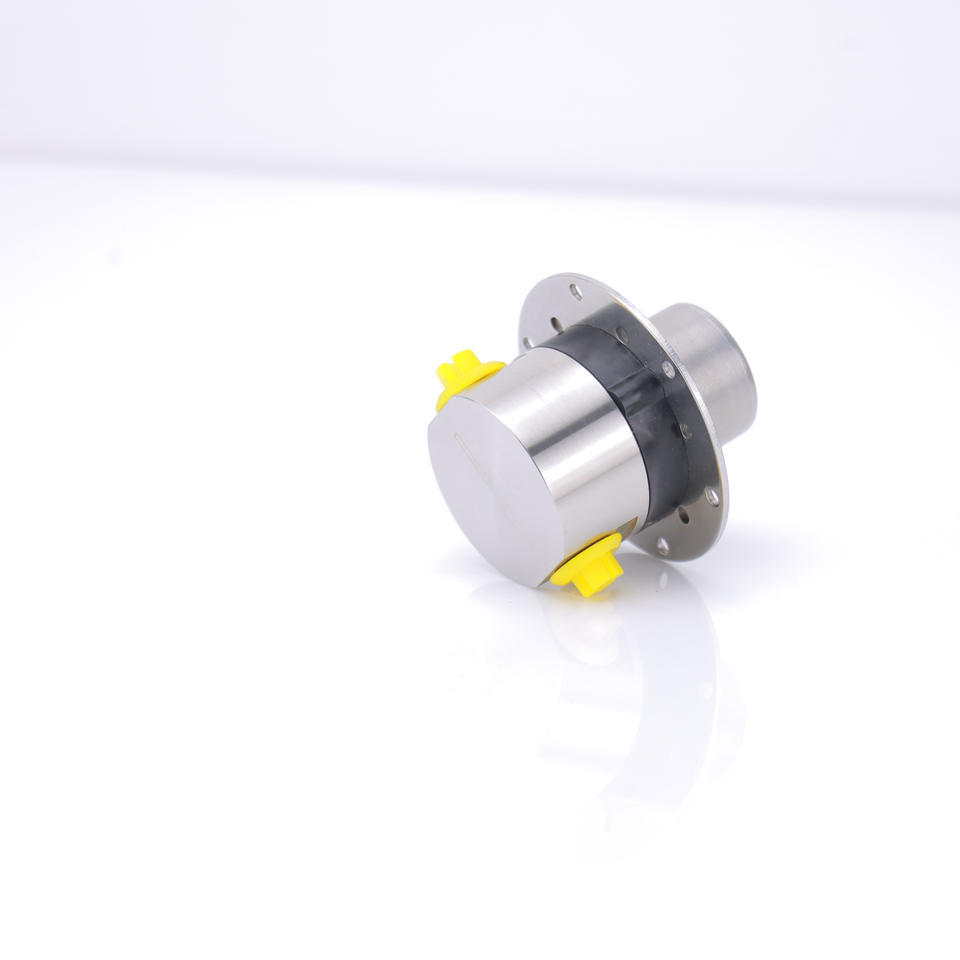

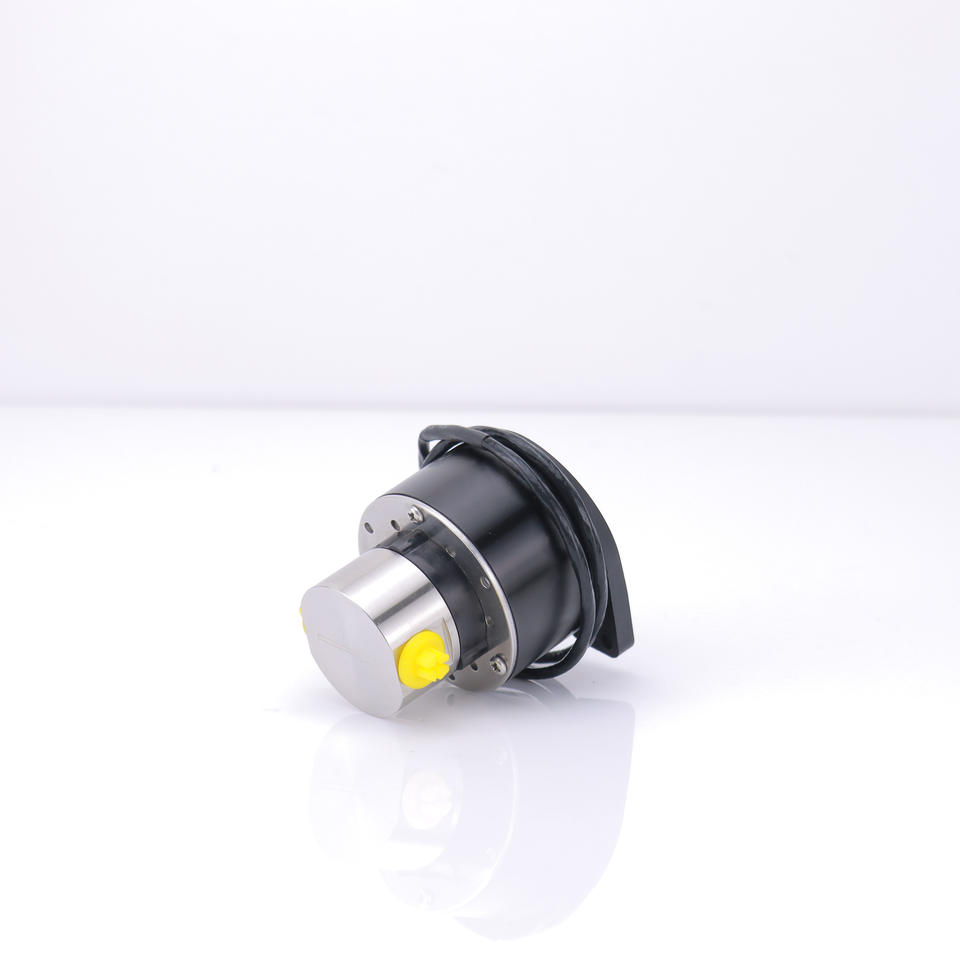

High Pressure 1.6MPa Corrosion Resistant 316L Stainless Steel Magnetic Gear Pump with 4-Pole Short Rotor Double Outlet 24VDC

No reviews yet2 sold
$80.77
1-99 pieces
$64.62
100-499 pieces
$53.85
≥500 pieces
Flow Rate
maximum head
type

Key attributes

application

Other

pressure

1.6MPa

customized support

OEM, ODM, OBM

place of origin

China

power source

Electric

warranty

1 Year

Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

Buy now, pay later

Key attributes

application
Other
pressure
1.6MPa
customized support
OEM, ODM, OBM
place of origin
China
power source
Electric
warranty
1 Year
model number
GQC010ESLB02
Applicable temperature
-40 to 105 degrees Celsius
Max Flow Rate
480mL/min
Max Pressure
1.6MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
structure
ink pump
Material
Stainless Steel

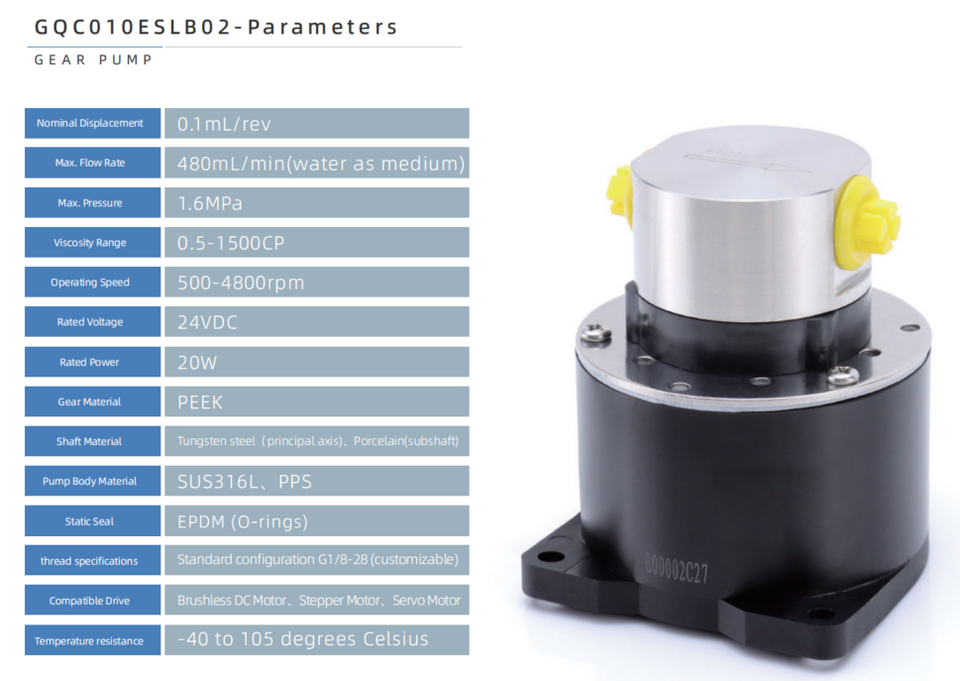

Nominal Displacement
0.1mL/rev
Max. Flow Rate
480mL/min(water as medium)
Max. Pressure
1.6MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4800rpm
Rated Voltage
24VDC
Rated Power
20W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Shaft Material
Tungsten steel (principal axis), Porcelain(subshaft)
