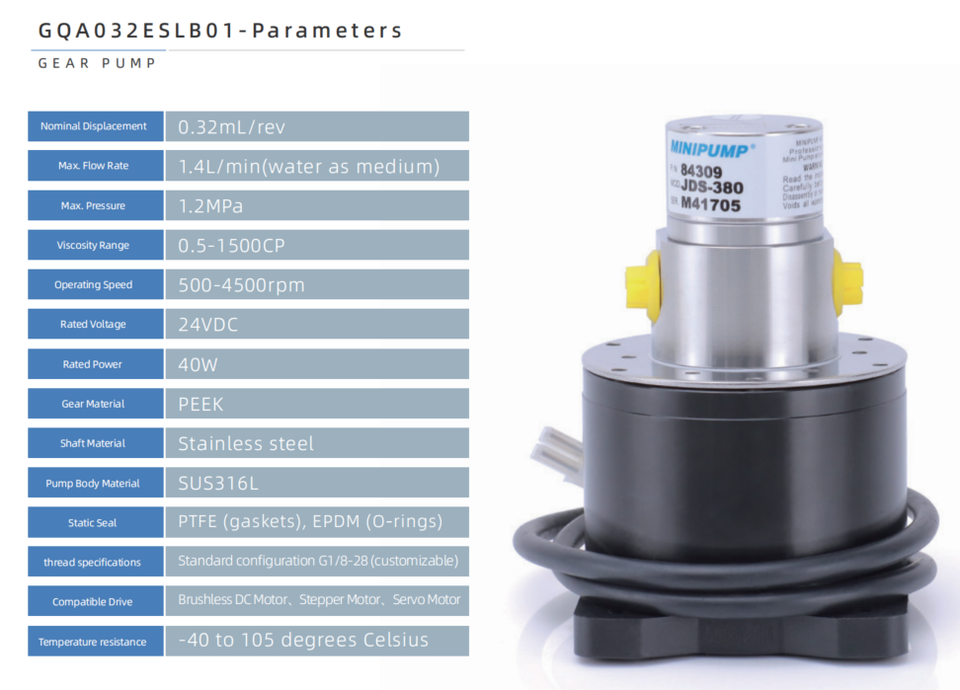

High Pressure Gear Pump 0.32mL/rev Magnetic Gear Pump for Cosmetic Cream Metering with Motor

No reviews yet
DOCOD PRECISION GROUP LIMITED
1 yr
HK

Attributes

Otherapplication
0.05-1.2Mpapressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Chinaplace of origin
Electricpower source
structure:ink pump
model number:GQA032ESLB01
Applicable temperature:-40 to 105 degrees Celsius
Displacement:0.32mL/rev
Max Flow Rate:1.4L/min(water as medium)
Max Pressure:1.2MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:G1/8-28
Shaft Material:Stainless steel
Compatible Drive:Brushless DC, Stepper, Servo

Key attributes

application
Other
pressure
0.05-1.2Mpa
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
China
power source
Electric
structure
ink pump
model number
GQA032ESLB01
Applicable temperature
-40 to 105 degrees Celsius
Displacement
0.32mL/rev
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
1.2MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
G1/8-28
Shaft Material
Stainless steel
Compatible Drive
Brushless DC, Stepper, Servo

Packaging and delivery

Selling Units
Single item
Show more

Lead time

Product descriptions from the supplier

1 - 99 pieces
$21923
100 - 499 pieces
$17538
>= 500 pieces
$14615

Variations

Select now

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
