Attributes
380 V, 220V Electrical Equipmentvoltage
FANUCcnc control system
Light Dutymachining capacity
2number of axes
Singleno. of spindles
8tool post stations
max. length of workpiece (mm):250
key selling points:Multifunctional, Automatic, Competitive Price
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year

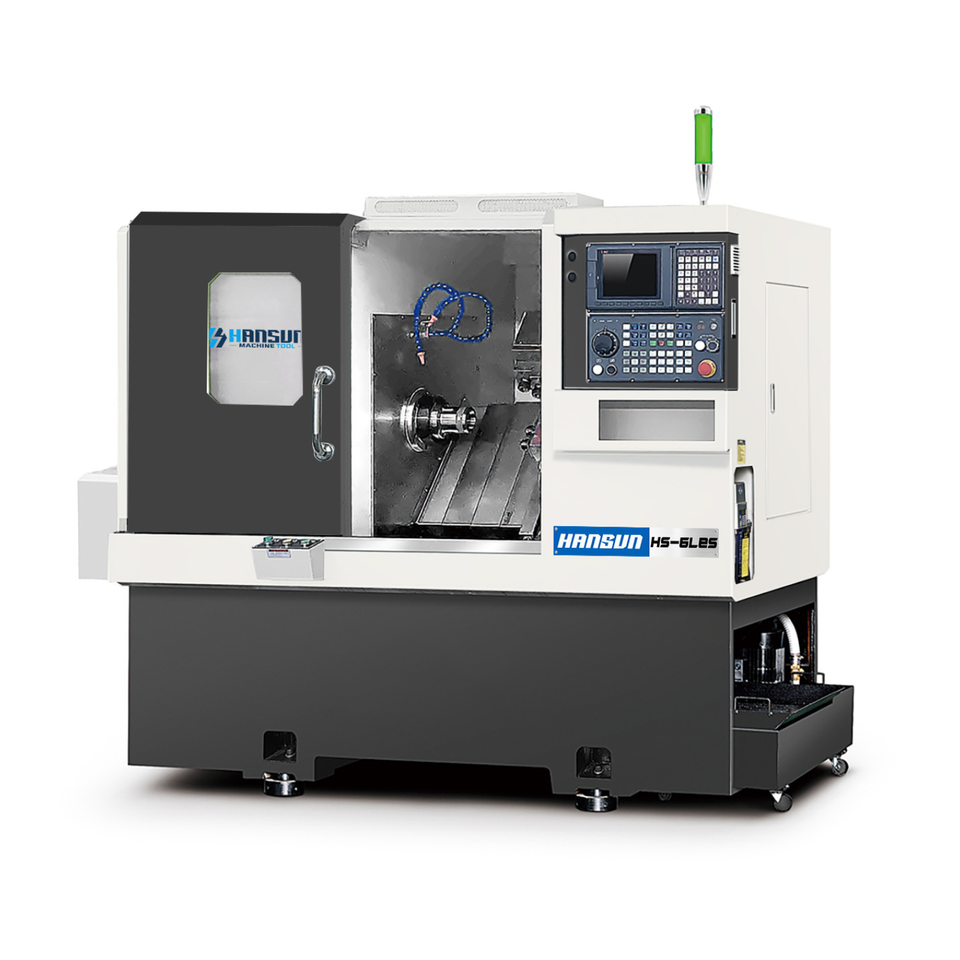

type:cnc lathe
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):50
travel (x axis)(mm):1040
travel (z axis)(mm):330
place of origin:Guangdong, China
dimension(l*w*h):2400x1500x2000
brand name:HANSUN
model number:6LES
weight:3100
range of spindle speed:0 - 4500
CNC or Not:cnc
max process diameter:380mm
spindle bore:56mm
chuck size:6 inch
x/z axis machining travel:1030/300 mm
center height:56mm
bar feeder ground to center:1120mm
square tool holder size:20x20 mm
max passable bar diameter:45mm
power head speed:0-3000 r/min
x/z axis fast moving speed:26/26 m/min

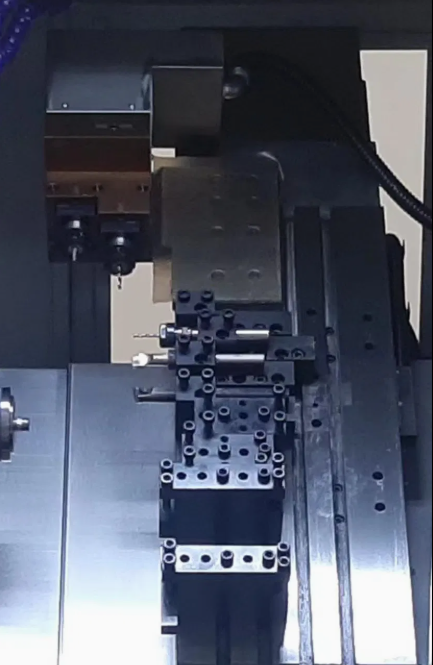

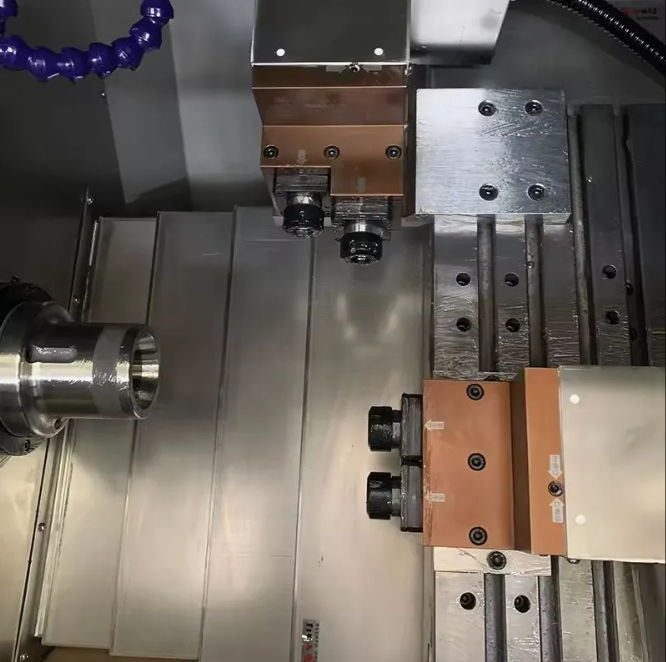

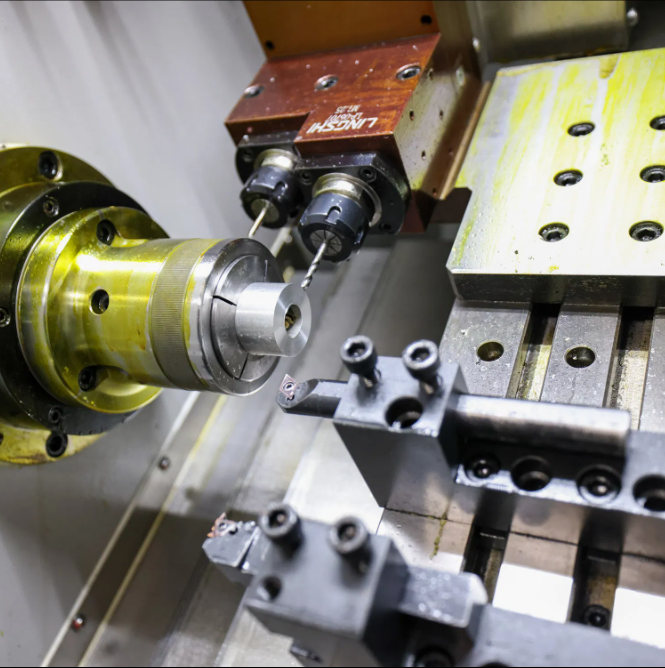

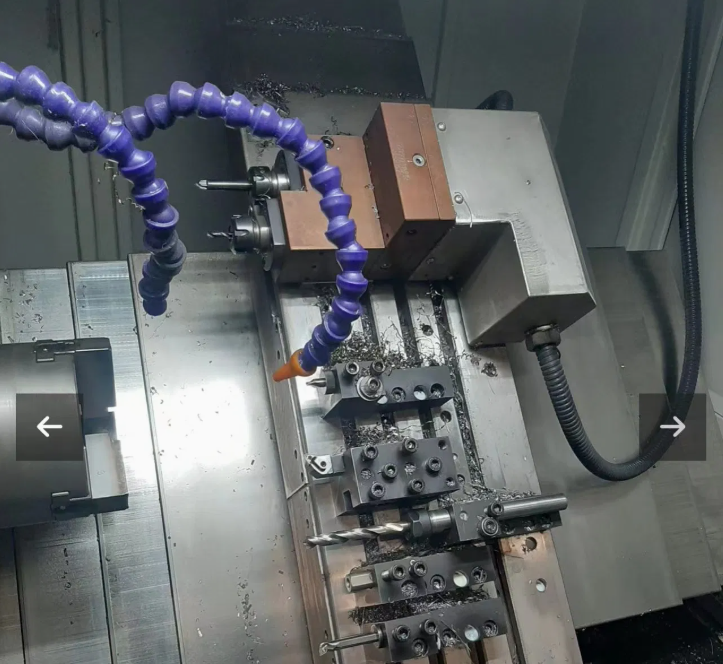

tool installation:ER25 live tools + gang type

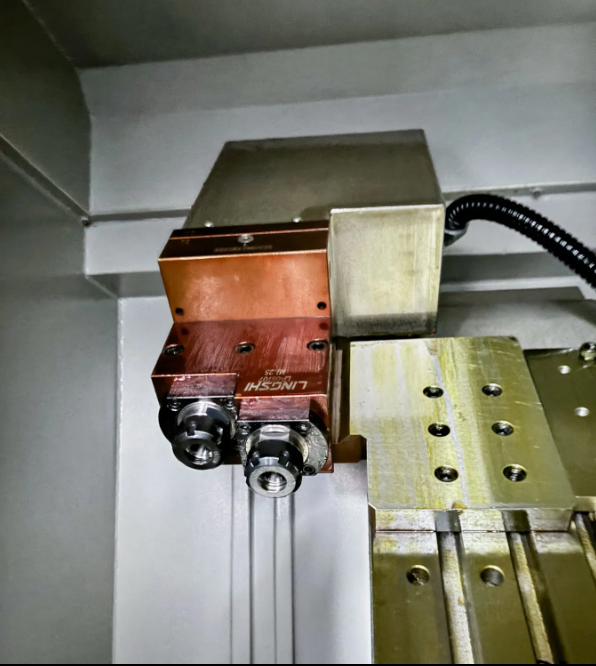

side milling power head structure:side milling: 1 long+ 1 short live tool
end milling power head structure:end milling: 2 short live tools
