Attributes
weldingMounting Type
By Actual Production DateManufacturing Date Code
FRS-16B22Model Number
SZFASTBrand Name
switchUsage
Sense Position With Magnet/Counting/Anti theftDescription
Type:Reed Switch
Place of Origin:Guangdong, China
Series:magnetic reed switch
Features:Glass Tube/Plastic Housing, Metal Leads, 2 Pins
Theory:Reed Contact
Output:Switching Signal ON/OFF
Usage:Magnetic Sensor
Theory:Current Sensor
Application:Security, Limit switching, Telecoms
Contact Form:SPST (Form A)

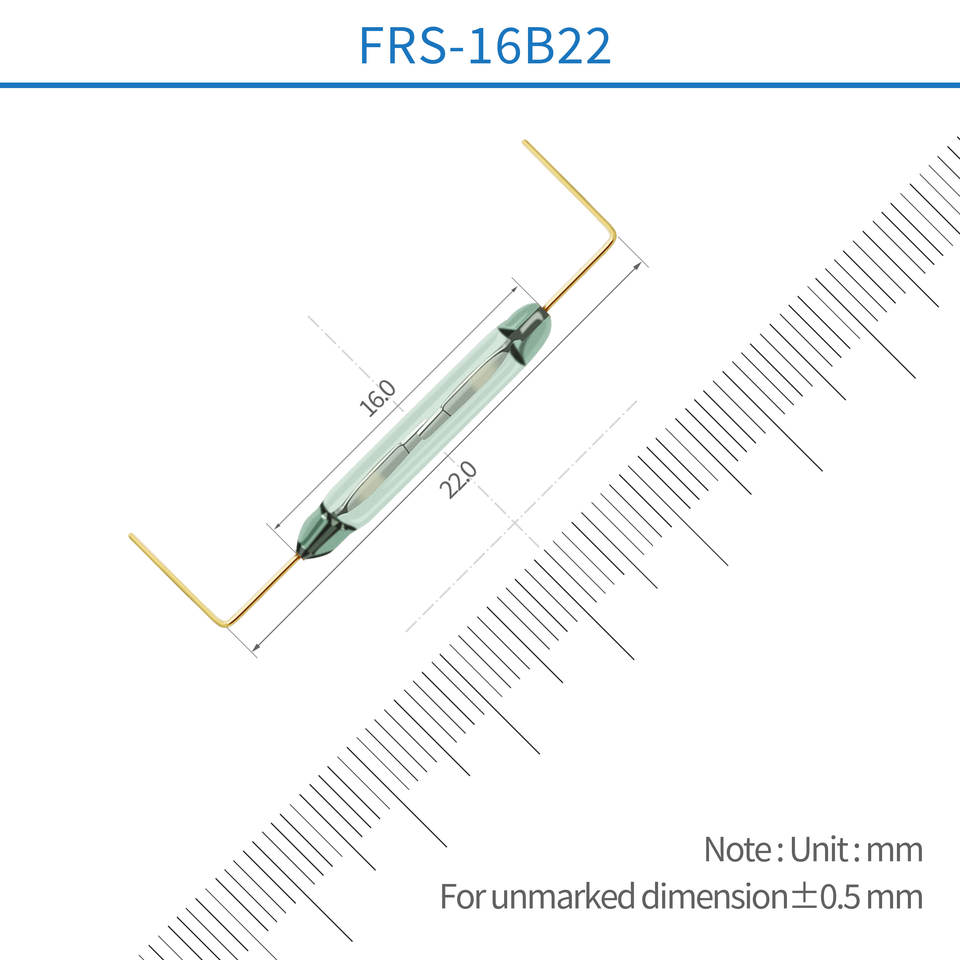

Size:16L*3.8W*4H mm
MOQ:2000pcs/Box
Switched Current (max.):1.0A or 0.5A
Operating Temp. Range:-55~+85
Installation:2 pins, Plug-in
Keyword:reed switches
Selling Units:Single item
Single package size:22.00X9.00X8.00 cm
Single gross weight:0.100 kg
